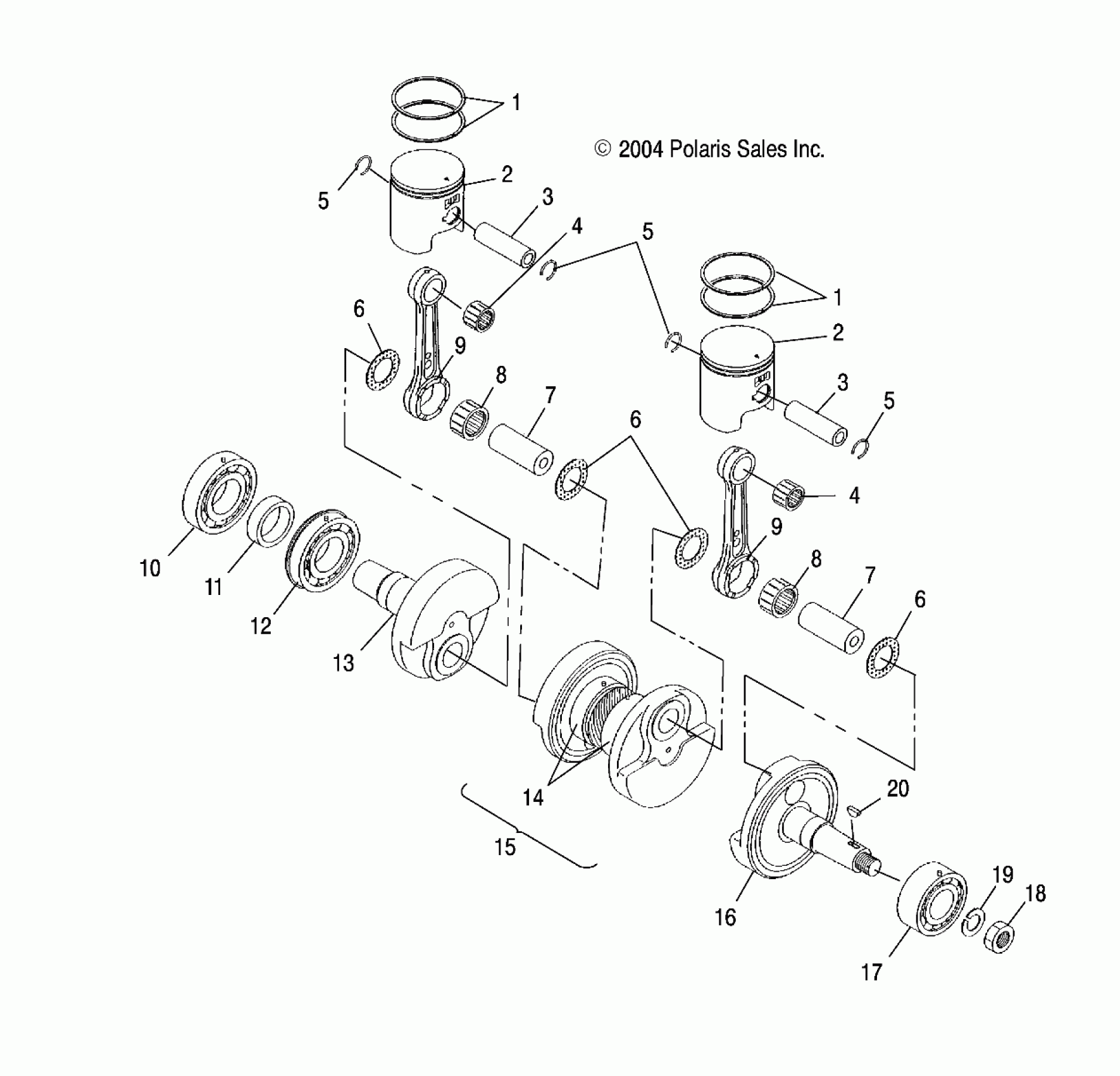

Polaris 550 CLASSIC - S05ND5BS PISTON and CRANKSHAFT - S05ND5BS (4992669266C07) Diagram

#

Description
Price

1

Set, Piston, Ring, Standard

3086988

Unavailable

1

Set, Piston, Ring, .010 Inch/.25 MM O/S

3086989

Unavailable

1

Set, Piston, Ring, .020 Inch/.50 MM O/S

3086990

$33.32

1

Set, Piston, Ring, Standard

3086988

Unavailable

1

Set, Piston, Ring, .010 Inch/.25 MM O/S

3086989

Unavailable

1

Set, Piston, Ring, .020 Inch/.50 MM O/S

3086990

$33.32

2

Set, Piston, Standard

3089485

Unavailable

2

Set, Piston, .010 Inch/.25 MM O/S

3089486

$142.84

2

Set, Piston, .020 Inch/.50 MM O/S

3089487

$152.37

2

Set, Piston, Standard

3089485

Unavailable

2

Set, Piston, .010 Inch/.25 MM O/S

3089486

$142.84

2

Set, Piston, .020 Inch/.50 MM O/S

3089487

$152.37

3

Pin, Piston

3083838

$27.99

3

Pin, Piston

3083838

$27.99

4

BEARING, END, SMALL

3083216

$16.57

4

BEARING, END, SMALL

3083216

$16.57

5

Clip, Piston Pin

3084167

$6.39

5

Clip, Piston Pin

3084167

$6.39

5

Clip, Piston Pin

3084167

$6.39

6

SPACER, CRANK PIN

3083277

$15.99

6

SPACER, CRANK PIN

3083277

$15.99

6

SPACER, CRANK PIN

3083277

$15.99

7

CRANK PIN 2

3083456

Unavailable

7

CRANK PIN 2

3083456

Unavailable

8

BEARING, END, LARGE

3086390

$1,634.99

8

BEARING, END, LARGE

3086390

$1,634.99

9

ROD, CONNECTING

3240083

$1,634.99

9

ROD, CONNECTING

3240083

$1,634.99

10

BEARING, BALL

3085754

$64.99

11

SPACER

3085677

$11.99

12

BEARING, BALL

3085753

$64.99

13

Crankshaft 3, PTO Side

3088199

$319.99

14

BEARING, BALL

3084586

$44.99

15

CRANKSHAFT 2, CENTER [INCL. 7]

3085674

$694.99

16

CRANKSHAFT 1, MAG SIDE

3087177

$529.99

16

Asm., Crankshaft [Incl. 6-17]

3088198

$1,684.99

17

BEARING, BALL

3084681

Unavailable

18

NUT

3083093

$19.99

19

WASHER, SPRING

3083094

$3.17

20

KEY, WOODRUFF

3081543

$12.94
