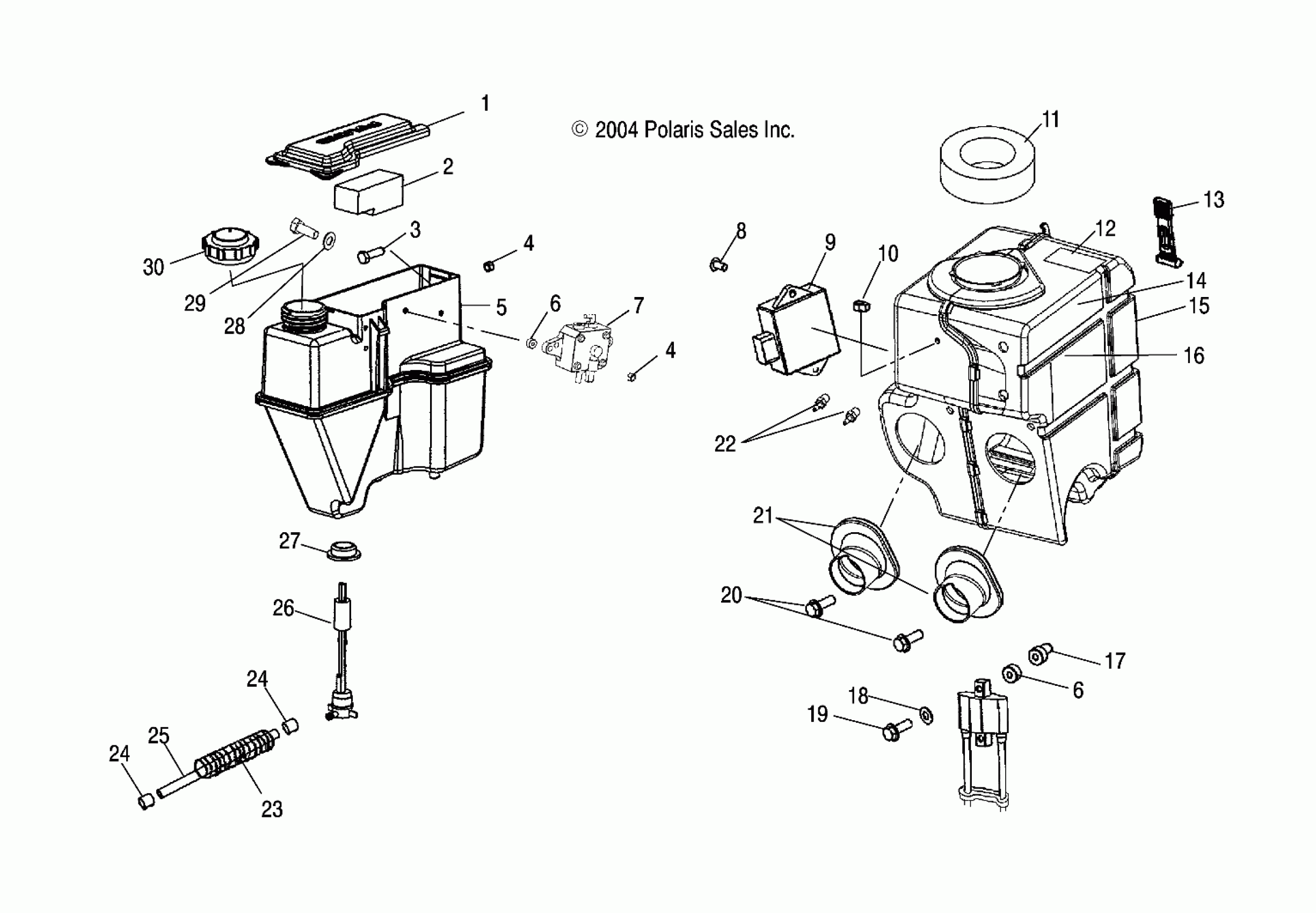

Polaris 550 CLASSIC - S05ND5BS OIL TANK/AIR BOX - S05ND5BS (4992669266B14) Diagram

#

Description
Price

1

Cover, Tool Box

5434089

$27.19

2

Foam

5812209

Unavailable

3

Screw

7512297

$5.59

4

Nut, Nylok

7542122

$1.49

4

Nut, Nylok

7542122

$1.49

5

Oil Bottle/Tool Box w/Mount

1261199

Unavailable

5

Asm., Oil Tank w/Sender [Incl. 1,26]

1253453

Unavailable

6

Washer, Nylon

7555932

$2.39

6

Washer, Nylon

7555932

$2.39

7

ASM., FUEL PUMP [SEE FUEL PUMP PG. C10, REF. 3]

-------

Unavailable

8

Screw

7512095

$4.79

9

ASM., CDI SYSTEM [SEE MAGNETO PG. C12, REF. 9]

-------

Unavailable

10

Clip

7670102

$2.39

11

Foam

5811882

$20.22

12

Decal, Caution

7075351

Unavailable

13

STRAP-AIRBOX TOP

5433150

$24.27

14

Decal, Greasing

7073426

$7.27

15

Asm., Air Silencer w/ER [Incl. 21 & Decals]

1253499

$130.79

16

Decal, Belt Removal, E/R

7171037

Unavailable

17

Nut, Well

7547103

$8.79

18

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

19

Screw

7517610

$1.59

20

Screw

7511862

$6.99

21

Boot, Carburetor

5412189

Unavailable

22

Fitting, Hose

7052127

$3.19

23

Tubing, Convoluted

4010051-30

Unavailable

24

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

24

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

25

Line, Fuel

8450003-1525

Unavailable

26

Sender, Oil w/Front Terminals

4010660

$60.70

27

Grommet, Oil Sender

7052305

$4.84

28

Washer, Flat

7555859

$1.49

29

Bolt

7512163

$3.99

30

Cap, Oil, Vented

1240094

$36.41
