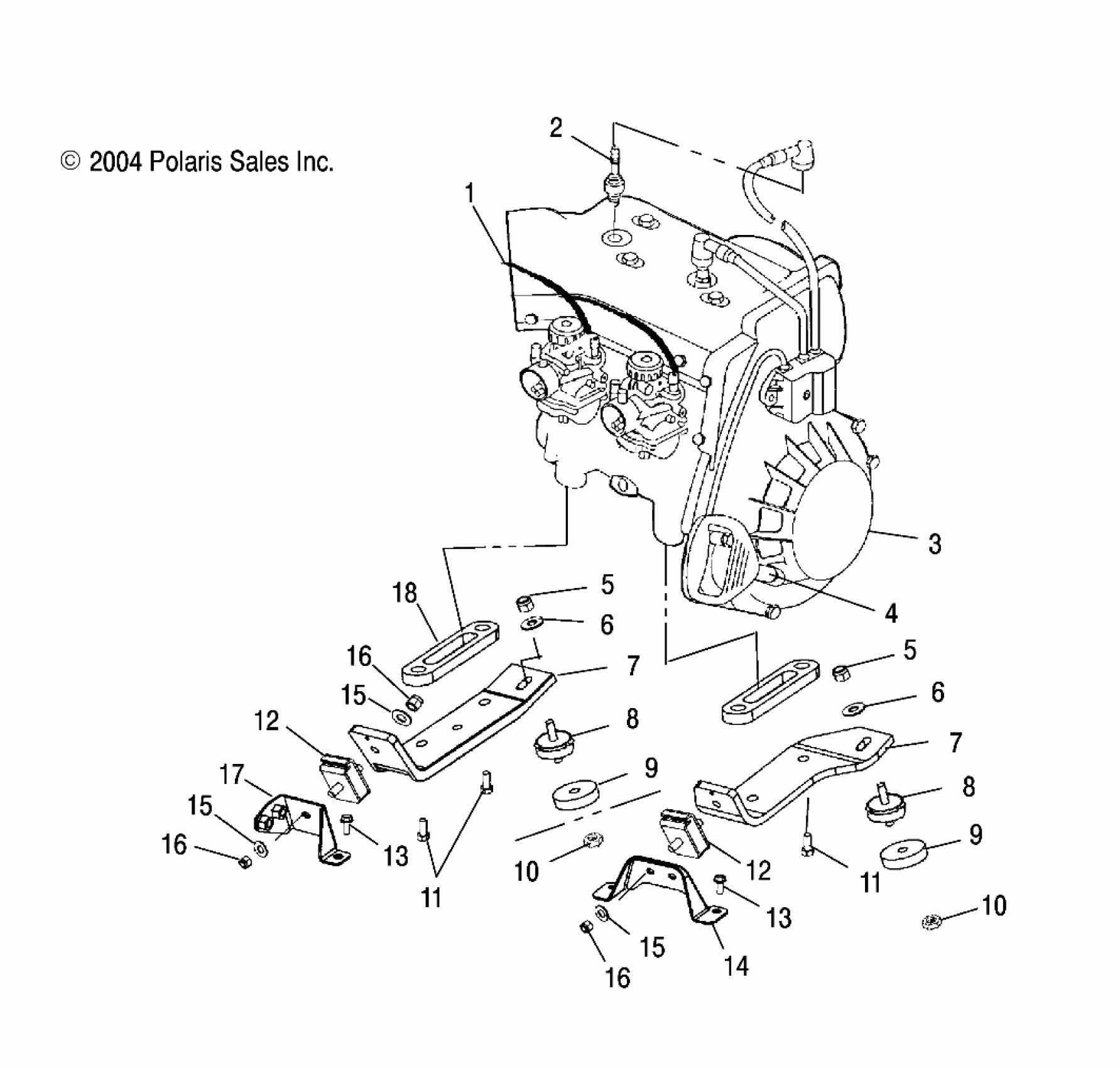

Polaris 550 CLASSIC - S05ND5BS ENGINE MOUNTING - S05ND5BS (4992669266C04) Diagram

#

Description
Price

1

Cable, Choke Control

7080290

$105.22

2

SPARK PLUG, BR9ES [SEE MAGNETO PG. C12, REF. 7]

-------

Unavailable

3

Engine, Short Block, EC55PM091 SB NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and crankshaft assembly. Prior authorization is requ

3088822

Unavailable

4

Handle, Recoil

5431499-070

$15.48

5

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

5

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

6

Washer, Flat

7555893

$1.49

6

Washer, Flat

7555893

$1.49

7

Strap, Engine Mount, RH

5246193

$51.99

7

Strap, Engine Mount, LH

5245466

$52.37

7

Strap, Engine Mount, RH

5246193

$51.99

7

Strap, Engine Mount, LH

5245466

$52.37

8

Mount, Engine

3021220

Unavailable

8

Mount, Engine

3021220

Unavailable

9

Spacer, Engine Mount

5245117

$14.49

9

Spacer, Engine Mount

5245117

$14.49

10

NUT, FLANGED

7547180

$2.39

10

NUT, FLANGED

7547180

$2.39

11

Screw

7517399

$8.99

11

Screw

7517399

$8.99

12

Mount, Engine

3021206

$60.70

12

Mount, Engine

3021206

$60.70

13

Screw

7517854

$5.59

13

Screw

7517854

$5.59

14

Bracket, Engine Mounting, RH

5245044

Unavailable

15

Washer, Flat

7555806

$1.49

15

Washer, Flat

7555806

$1.49

15

Washer, Flat

7555806

$1.49

16

NUT, FLEXLOC

7547008

$6.39

16

NUT, FLEXLOC

7547008

$6.39

16

NUT, FLEXLOC

7547008

$6.39

17

Bracket, Engine Mounting, LH

1013397

$24.27

18

SPACER, ENGINE

5245020

$29.99
