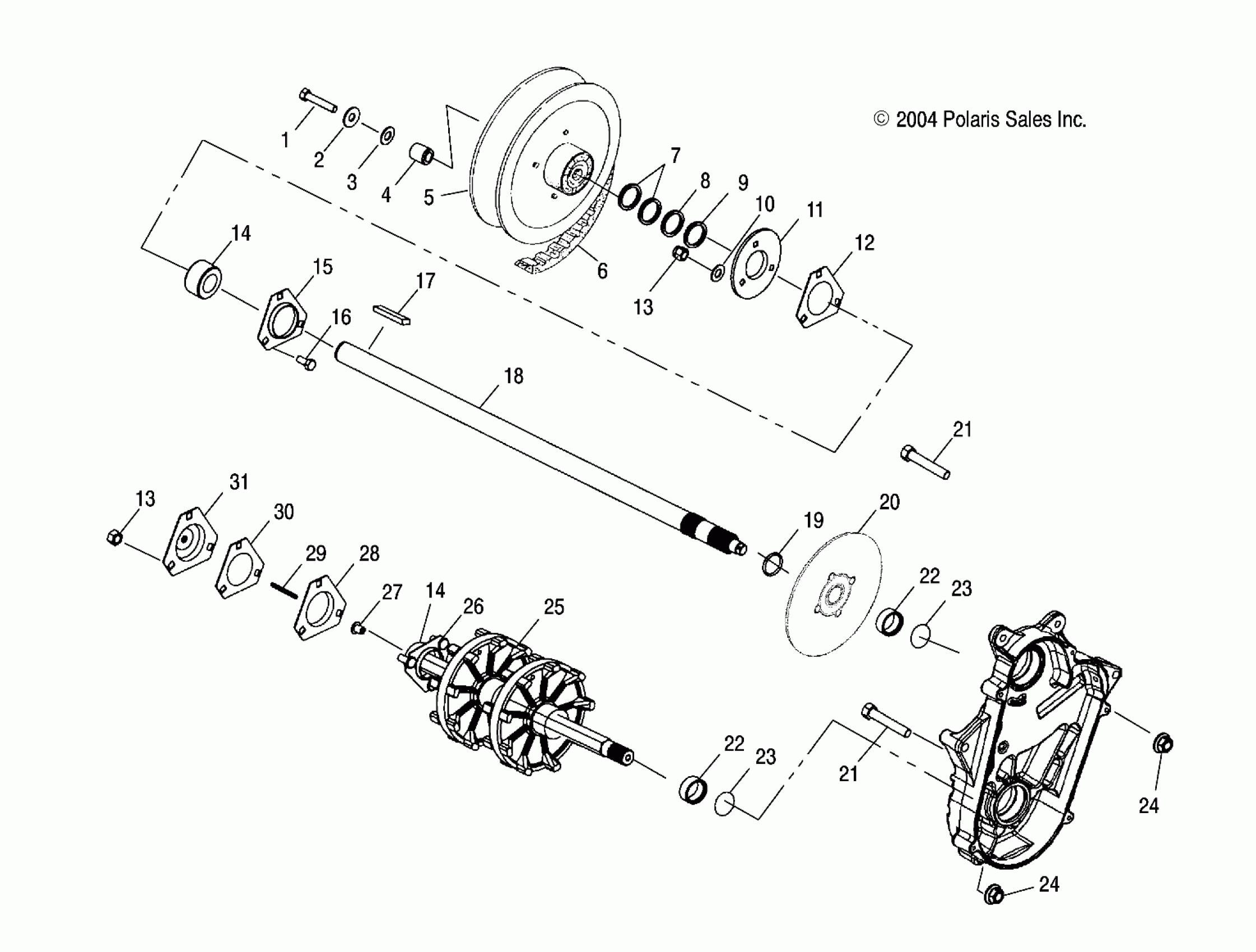

Polaris 550 CLASSIC - S05ND5BS DRIVE TRAIN - S05ND5BS (4992669266C02) Diagram

#

Description
Price

1

Bolt

7515369

$4.79

2

WASHER, FLAT

7555701

$3.99

3

Washer, Flat

7555734

Unavailable

4

Spacer

5020913

Unavailable

5

ASM., DRIVEN CLUTCH [See Driven Clutch Pg. B13 for Details]

-------

Unavailable

6

Belt, Drive

3211078

$109.99

7

WASHER

7555917

$2.39

8

WASHER

7555864

Unavailable

9

Bushing

7556509

Unavailable

10

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

11

Fitting, Lubrication

7080561

$4.79

11

Flangette w/Grease Zerk

5241359

$32.37

12

Gasket, Jackshaft

5811095

$2.41

13

NUT-5/16-18 NYLOK-Y

7542324

$1.49

13

NUT-5/16-18 NYLOK-Y

7542324

$1.49

14

BEARING

3514525

$31.99

14

BEARING

3514525

$31.99

15

FLANGETTE

5222751

$16.44

16

Bolt, Carriage

7512377

$4.79

17

Key

7721116

$12.94

18

Asm., Jackshaft [Incl. 14,19]

1332283

$159.99

19

RING, RETAINING

7710422

$3.99

20

Kit, Disc, Brake

2202493

Unavailable

21

Bolt, Carriage

7515428

$4.79

21

Bolt, Carriage

7515428

$4.79

22

SLEEVE, SEAL

5020588

$23.99

22

SLEEVE, SEAL

5020588

$23.99

23

O-RING

5410613

$1.99

23

O-RING

5410613

$1.99

24

Nut, Flange

7542423

$3.99

24

Nut, Flange

7542423

$3.99

25

Asm., Drive Shaft [Incl. 26,27]

1591391

$343.71

26

ASM., FLANGETTE W/SCREWS

1012945

$114.99

27

Bushing, Speedometer, Metal

3280019

$11.99

28

Flangette, Offset, w/Hole

5243529

$13.75

29

Key, Speedometer, Square

3280017

$13.75

30

Gasket, Drive Adaptor

5830012

$2.41

31

Adaptor w/Zerk, Drive

3280116

$101.17
