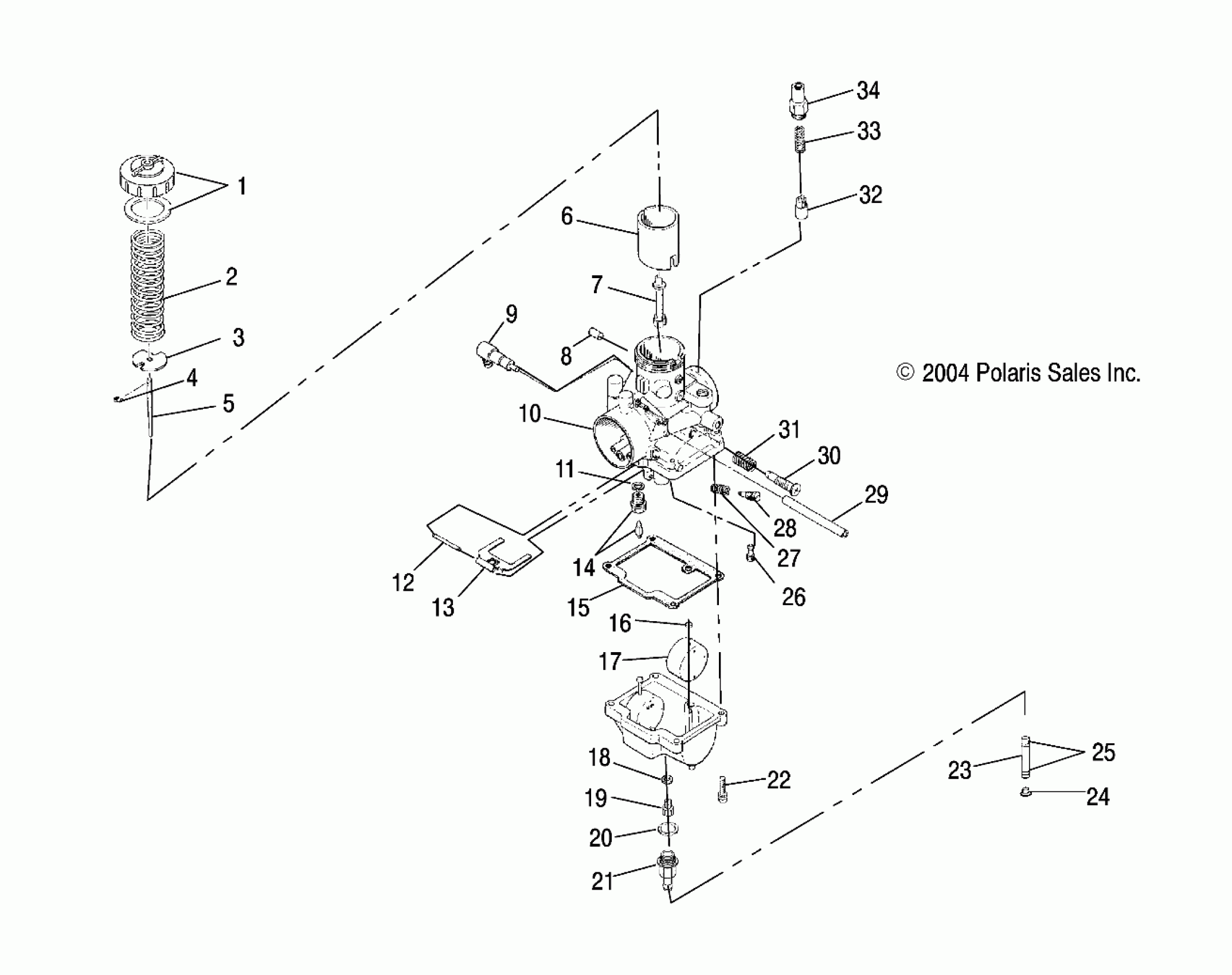

Polaris 550 CLASSIC - S05ND5BS CARBURETOR - S05ND5BS (4992669266C09) Diagram

#

Description
Price

1

Asm., Top

3130184

$32.37

2

SPRING, THROTTLE

3130439

$13.59

3

PLATE

3130027

$9.70

4

E-RING

3130508

$6.46

5

Needle, Jet, 6BGY33

3131416

Unavailable

6

Throttle Valve, 3.0

3130372

$52.60

7

Needle Jet, Q-2, 480

3130894

Unavailable

8

CAP

3130479

$14.56

9

ASM., VALVE, CHECK

3086785

$52.60

10

Asm., Carburetor [Magneto] [Incl. 1-22,21-4]

3131520

$395.22

10

Asm., Carburetor [PTO] [Incl. 1-22,21-4]

3131521

$395.22

11

Packing, Needle Valve

3130017

$4.03

12

PIN, FLOAT

3130361

$8.89

13

Arm, Float

3130018

$24.27

14

NEEDLE VALVE, 1.5

3131146

$48.56

15

Gasket, Float Chamber

3130020

$16.17

16

Cap

3130237

$4.03

17

Asm., Float

3130430

$43.56

18

WASHER

3130014

$1.59

19

Main Jet, #280 [PTO]

3130131

$7.27

19

Main Jet, #270 [Magneto]

3130130

$7.27

20

O-RING

3130239

Unavailable

21

NIPPLE

3130573

$32.37

22

Asm., Screw and Washer

3130025

$3.19

23

Line, Fuel

8350017-600

Unavailable

24

Plug, Trap

5431893

$12.94

25

HOSE CLAMP, RED

7080003

$1.49

26

Pilot Jet, #40

3130067

$10.99

27

Spring, Air Adjust

3130012

$8.89

28

Spring, Air Adjust

3130011

$19.99

29

Hose

3131288

$10.71

30

SCREW, THROTTLE STOP

3130437

Unavailable

31

SPRING, THROTTLE ADJUSTER

3130010

$8.89

32

Asm., Plunger

3130328

$32.37

33

Spring, Plunger

3130006

$8.89

34

Cap, Plunger

3130199

$28.32
