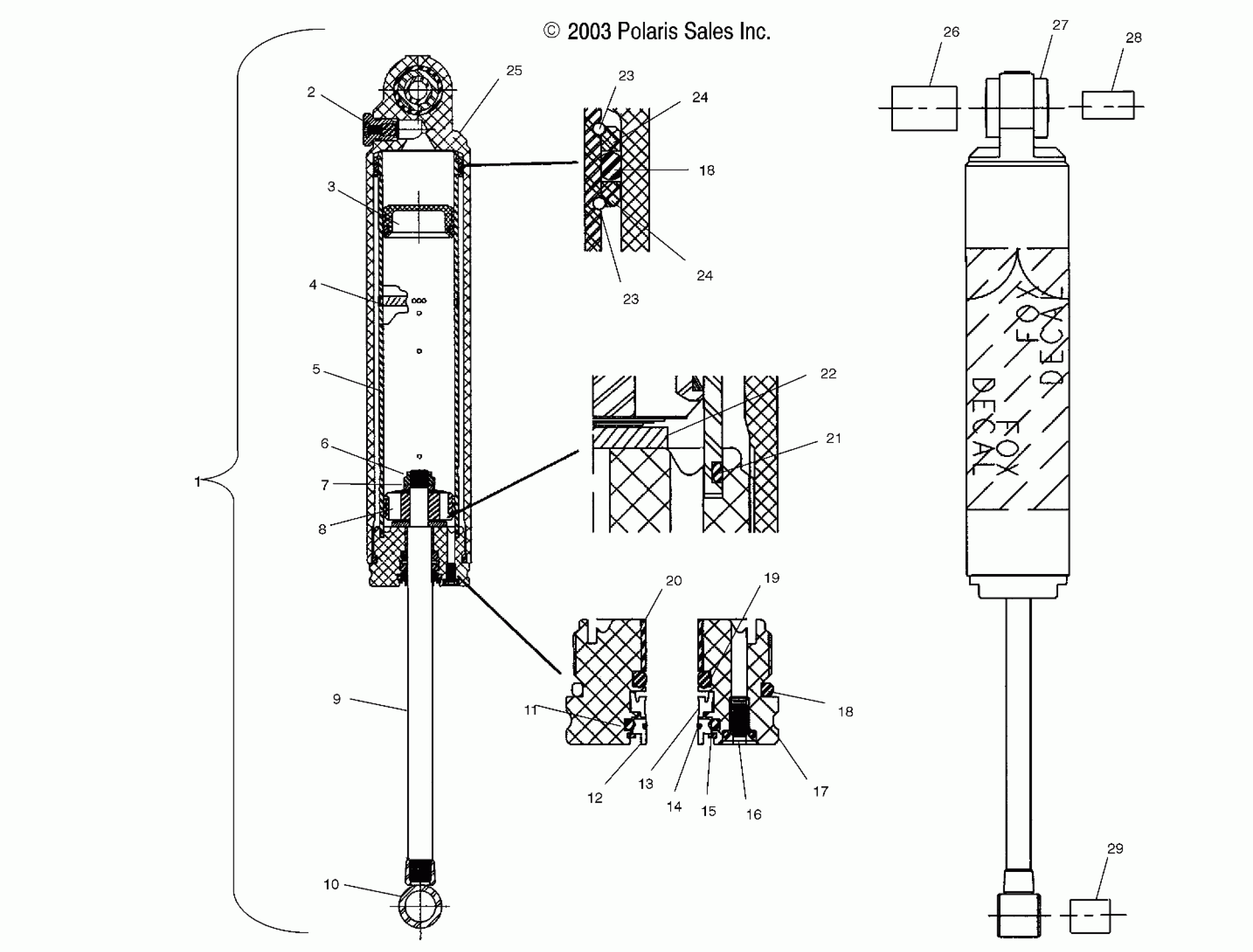

Polaris 550 CLASSIC EDGE - S04ND5BS SHOCK (REAR TRACK) - S04ND5BS (4988358835B10) Diagram

#

Description
Price

1

Shock, Rear Track, PPS [Incl. All]

7042129

Unavailable

2

O-Ring

1500022

Unavailable

2

Screw

1500295

Unavailable

3

O-Ring

1500003

$8.89

3

Bearing, External

1500006

$19.99

3

Asm., Floating Piston

1500481

$23.19

4

Valve, Check

1500306

Unavailable

5

Asm., Body, Inner

1500331

$205.99

6

Nut, Lock

1500016

$12.79

7

Plate, Backup

1500015

$6.76

8

Bearing, Piston

1500002

$31.99

8

Piston

1500489

$12.39

9

Shaft

1500487

$75.00

10

Eyelet

1500302

$49.21

11

O-Ring

1500483

$8.89

12

Scraper, F.I.S.T.

1500485

Unavailable

13

U-Cup

1500266

$24.27

14

O-Ring

1500484

$8.89

15

Ring, Snap, Internal

1500486

Unavailable

16

O-Ring

1500022

Unavailable

16

Screw

1500295

Unavailable

17

Asm., Bearing F.I.S.T. [Incl. 11-16,18-20]

1500482

$89.68

18

O-Ring

1500228

Unavailable

18

O-Ring

1500228

Unavailable

19

O-Ring

1500127

Unavailable

20

Bearing

1500488

Unavailable

21

O-RING

1500459

$5.65

22

O-Ring

1500228

Unavailable

23

RING, RETAINING, WIRE

1500097

$4.79

23

RING, RETAINING, WIRE

1500097

$4.79

24

Collar, Alum

1500336

$27.78

24

Collar, Alum

1500336

$27.78

25

Asm., Body [Incl. 2]

1500480

$148.79

26

Sleeve .56 ID

1500311

Unavailable

27

BUSHING

1500307

$7.99

28

Sleeve .385 ID

5333907

$15.99

29

Bushing .385 ID

5010422

$11.99
