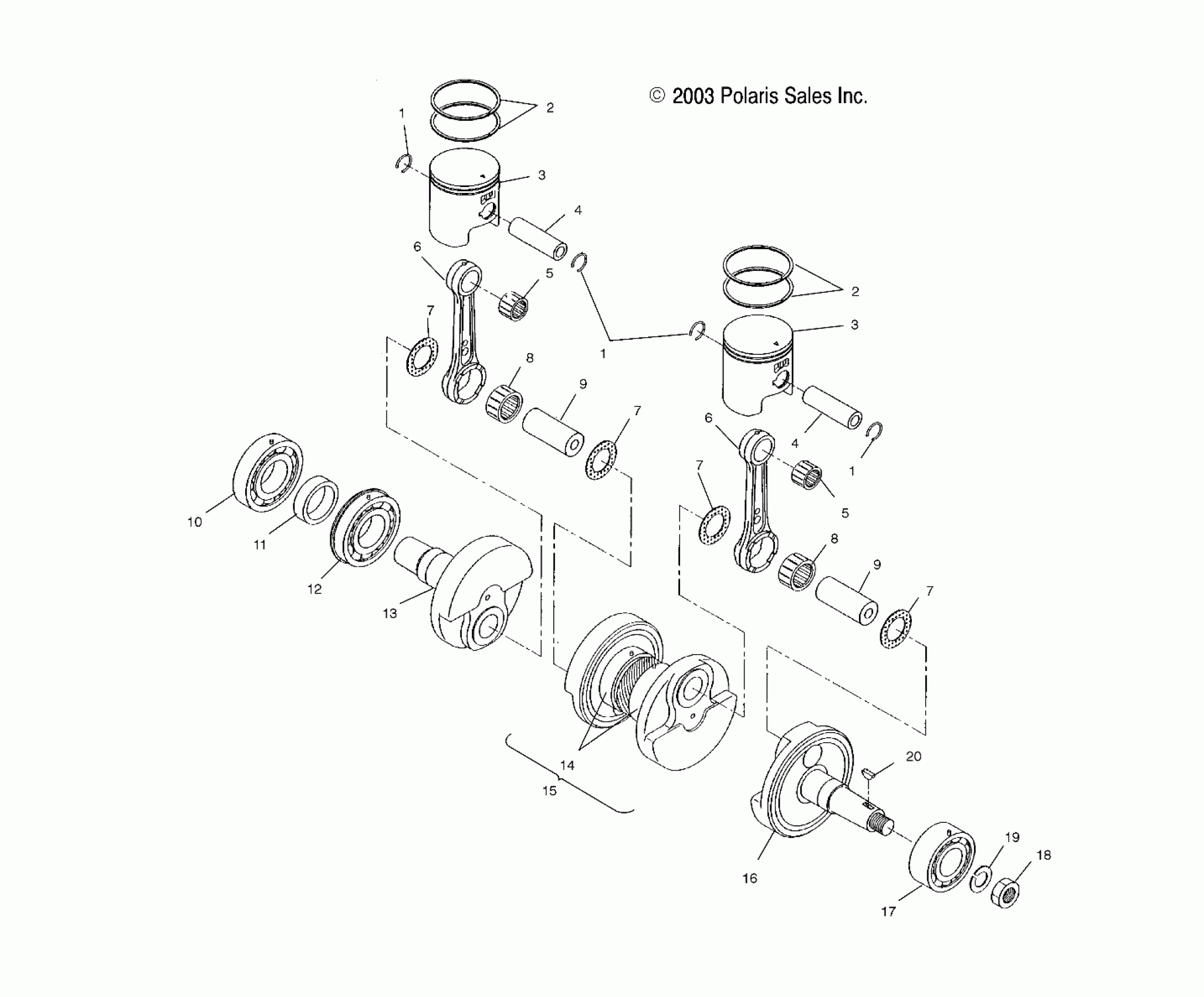

Polaris 550 CLASSIC EDGE - S04ND5BS PISTON and CRANKSHAFT - S04ND5BS (4988358835C07) Diagram

#

Description
Price

1

Clip, Piston Pin

3084167

$6.39

1

Clip, Piston Pin

3084167

$6.39

1

Clip, Piston Pin

3084167

$6.39

2

Ring, Piston [Standard]

3086988

Unavailable

2

Ring, Piston [0.25 O/S]

3086989

Unavailable

2

Ring, Piston [0.50 O/S]

3086990

$33.32

2

Ring, Piston [Standard]

3086988

Unavailable

2

Ring, Piston [0.25 O/S]

3086989

Unavailable

2

Ring, Piston [0.50 O/S]

3086990

$33.32

3

Piston, Set [Standard]

3088216

Unavailable

3

Piston, Set [0.25 O/S]

3088217

$142.84

3

Piston, Set [0.50 O/S]

3088218

$152.37

3

Piston, Set [Standard]

3088216

Unavailable

3

Piston, Set [0.25 O/S]

3088217

$142.84

3

Piston, Set [0.50 O/S]

3088218

$152.37

4

Pin, Piston

3083838

$27.99

4

Pin, Piston

3083838

$27.99

5

BEARING, END, SMALL

3083216

$16.57

5

BEARING, END, SMALL

3083216

$16.57

6

ROD, CONNECTING

3240083

$1,634.99

6

ROD, CONNECTING

3240083

$1,634.99

7

SPACER, CRANK PIN

3083277

$15.99

7

SPACER, CRANK PIN

3083277

$15.99

7

SPACER, CRANK PIN

3083277

$15.99

7

SPACER, CRANK PIN

3083277

$15.99

8

BEARING, END, LARGE

3086390

$1,634.99

8

BEARING, END, LARGE

3086390

$1,634.99

9

Crank Pin No. 2

3083456

Unavailable

9

Crank Pin No. 2

3083456

Unavailable

10

BEARING, BALL

3085754

$64.99

11

SPACER

3085677

$11.99

12

BEARING, BALL

3085753

$64.99

13

Crankshaft 3 [PTO Side]

3088199

$319.99

14

BEARING, BALL

3084586

$44.99

15

Crankshaft 2 [Incl. 9]

3085674

$694.99

16

Crankshaft [MAG Side]

3087177

$529.99

16

Asm., Crankshaft [Incl. 7-6,10,14-15]

3088198

$1,684.99

17

BEARING, BALL

3084681

Unavailable

18

NUT

3083093

$19.99

19

WASHER, SPRING

3083094

$3.17

20

Key, Woodruff

3080130

Unavailable
