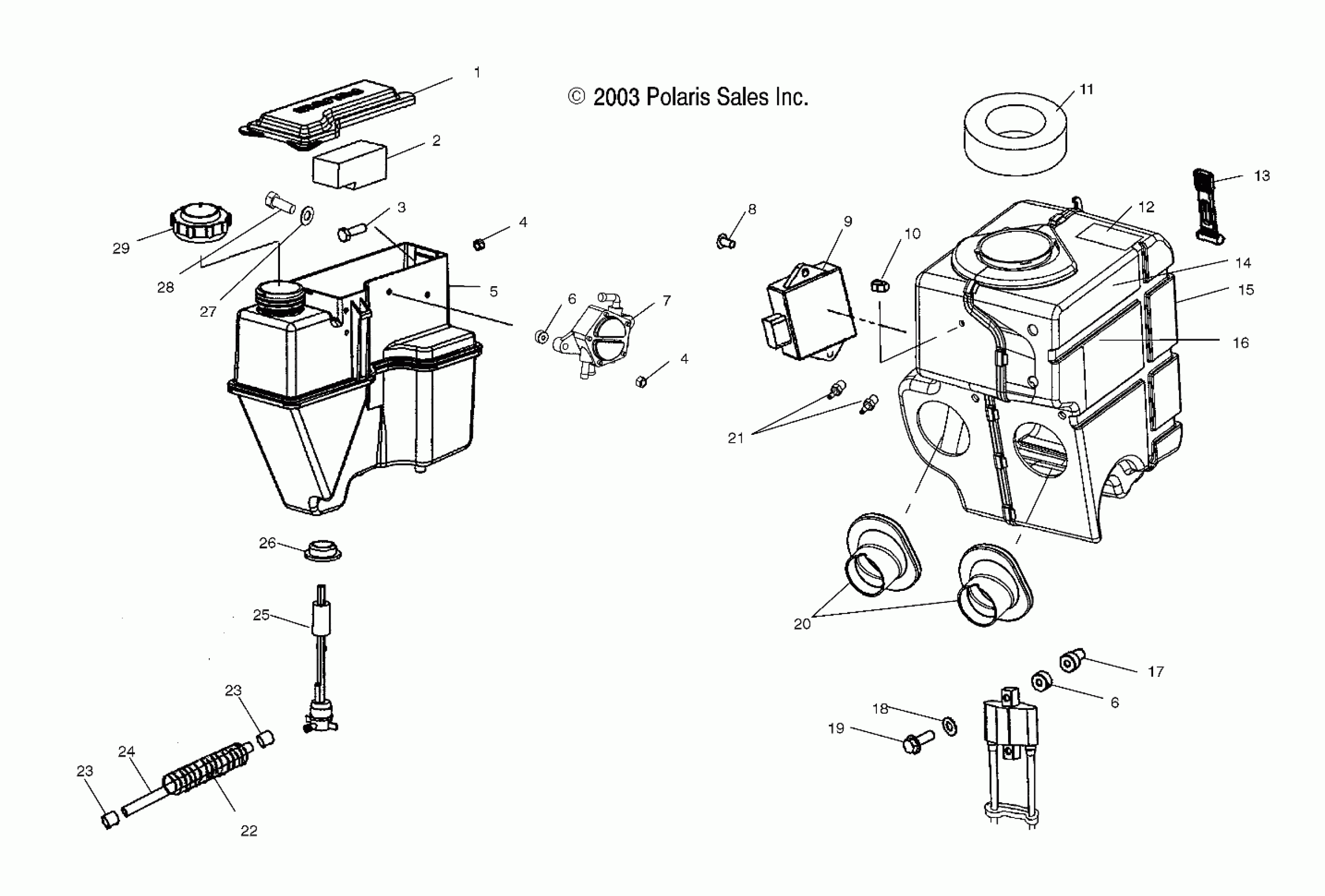

Polaris 550 CLASSIC EDGE - S04ND5BS OIL TANK/AIR BOX - S04ND5BS (4988358835B14) Diagram

#

Description
Price

1

Cover, Tool Box

5434089

$27.19

2

Foam, Tool Box

5812209

Unavailable

3

Screw

7512297

$5.59

4

Nut, Nylok

7542122

$1.49

4

Nut, Nylok

7542122

$1.49

5

Oil Bottle/Tool Box w/Mnt

1261199

Unavailable

5

Asm., Oil Tank w/Sender [Incl. 1,25]

1253453

Unavailable

6

Washer, Nylon

7555932

$2.39

6

Washer, Nylon

7555932

$2.39

7

ASM., FUEL PUMP [SEE FUEL PUMP PG. C10, REF. 3]

-------

Unavailable

8

Screw

7512095

$4.79

9

SYSTEM, CDI [SEE MAGNETO PG. C12, REF. 9]

-------

Unavailable

10

Clip Silencer Box

7670102

$2.39

11

Foam, Air Box, Chimney

5811882

$20.22

12

Decal, Caution, Air Box

7075351

Unavailable

13

STRAP-AIRBOX TOP

5433150

$24.27

14

Decal, Greasing

7073426

$7.27

15

Asm., Air Silencer w/ER [Incl. 20 & Decals]

1253499

$130.79

16

Decal, Belt Removal, Team, E/R

7171037

Unavailable

17

NUT

7547103

$8.79

18

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

19

Screw

7517610

$1.59

20

Boot, Carburetor

5412189

Unavailable

21

Fitting, Hose

7052127

$3.19

22

Tubing, Convoluted

4010051-30

Unavailable

23

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

23

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

24

Line, Fuel

8450003-1525

Unavailable

25

Sender, Oil w/Front Terminals

4010660

$60.70

26

Grommet, Oil Sender

7052305

$4.84

27

Washer, Flat

7555859

$1.49

28

Bolt

7512163

$3.99

29

Cap, Oil, Vented

1240094

$36.41
