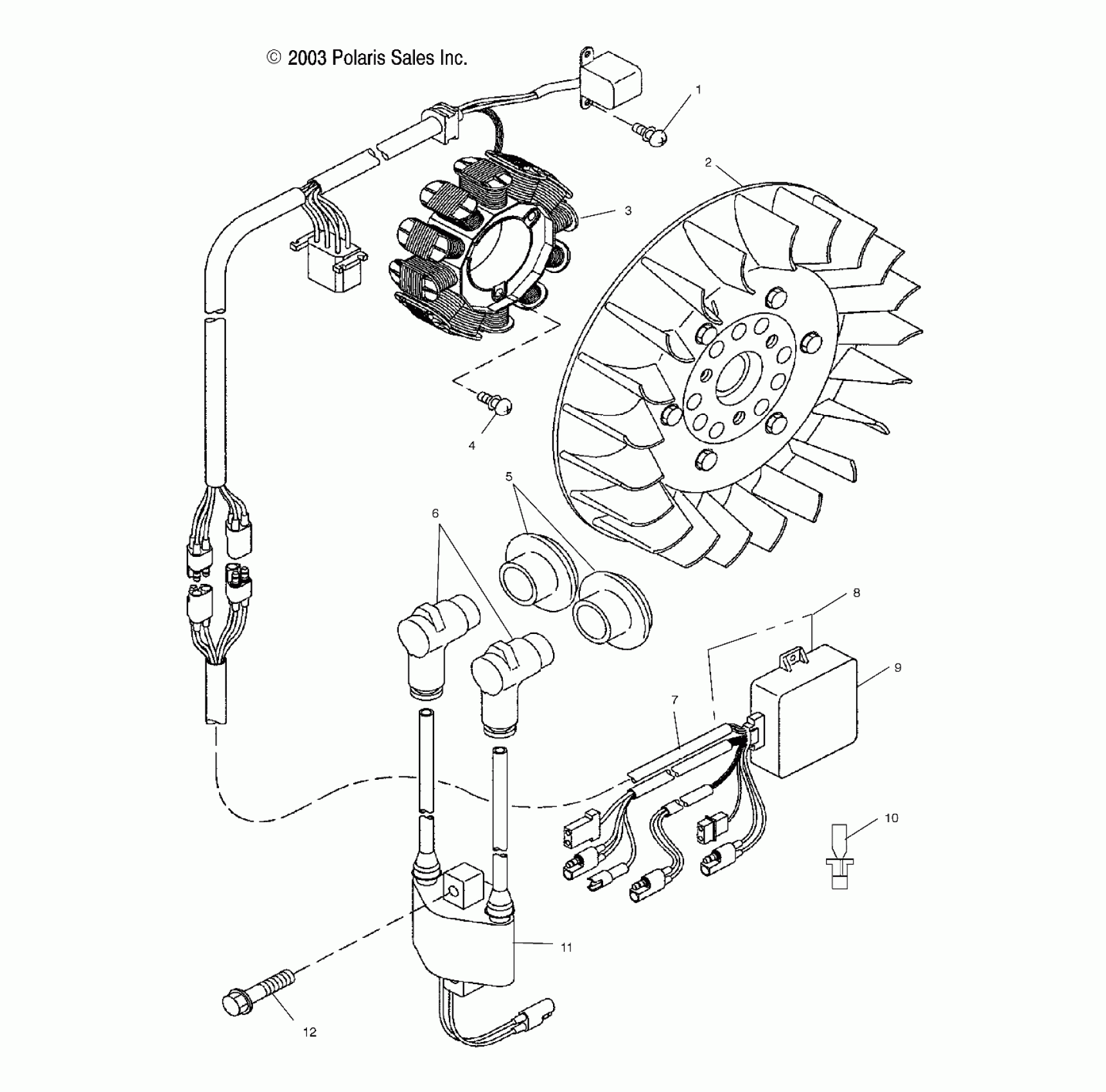

Polaris 550 CLASSIC EDGE - S04ND5BS MAGNETO - S04ND5BS (4988358835C12) Diagram

#

Description

Price

1

ASM., SCREW AND WASHER

3085698

$2.39

2

Asm., Flywheel

3087213

$400.79

3

Asm., Stator

3087212

$444.99

4

ASM., SCREW AND WASHER

3085697

$2.39

5

CAP, SPARK PLUG

3085935

$20.22

6

CAP, SPARK PLUG

3086976

$24.27

7

Harness Unit

3087219

$246.89

8

Asm., CDI System [Incl.7,9][If built before 4/1/03]

3088219

$395.22

8

Asm., CDI System [Incl.7,9][If built after 4/1/03]

3089229

$514.27

9

Unit, CDI System [If built before 4/1/03]

3088220

Unavailable

9

Unit, CDI System [If built after 4/1/03]

3089230

$514.27

10

Jumper, Stubber (E/S Only)

2461060

$8.99

11

Asm., Coil, Ignition [Incl. 6]

3087214

Unavailable

11

Coil, Ignition

3087216

Unavailable

12

Bolt, Flange

3084177

Unavailable
