Partiron

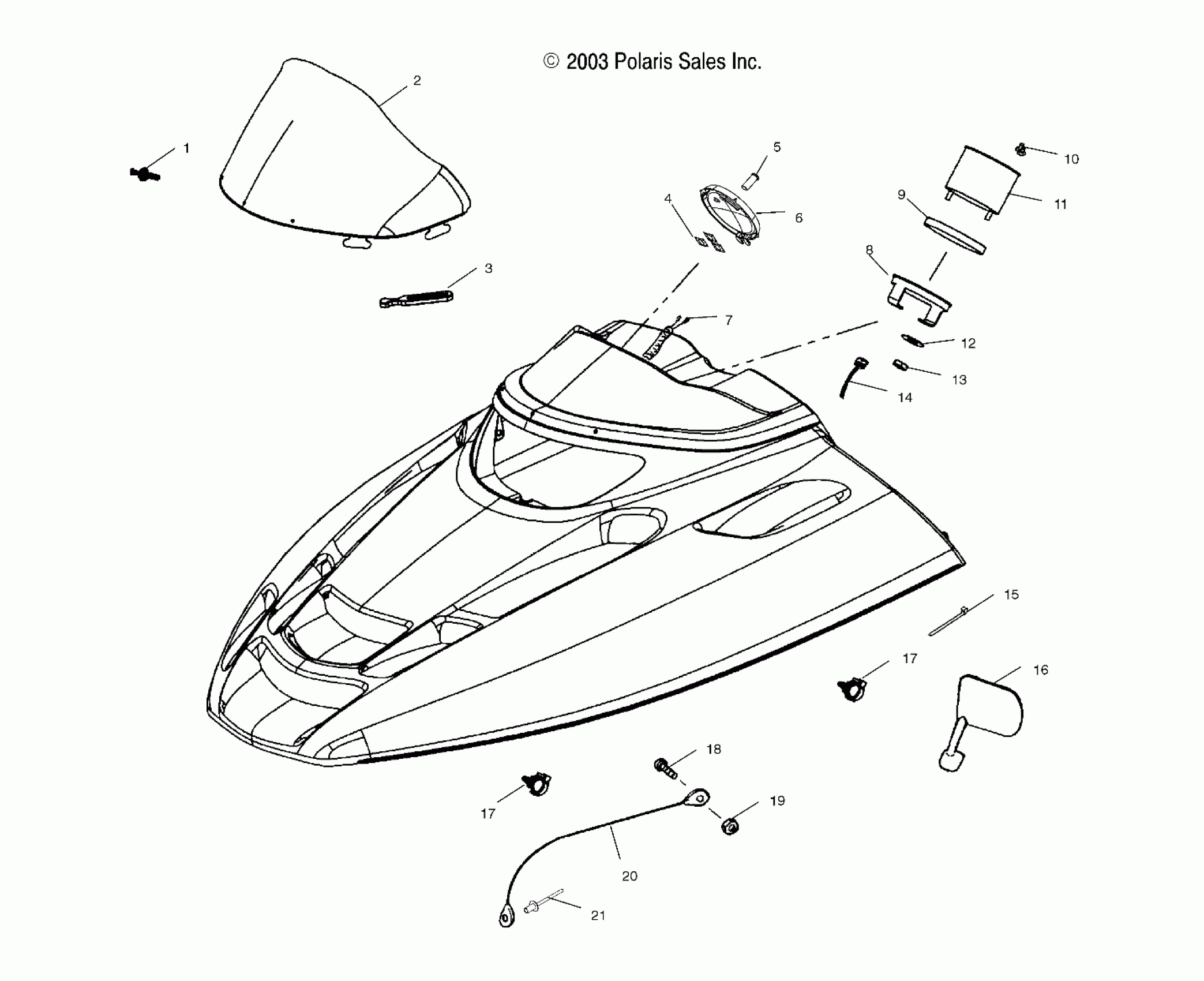

Polaris 550 CLASSIC EDGE - S04ND5BS HOOD - S04ND5BS (4988358835A09) Diagram

#

Description
Price

1

RIVET

7621509

$1.49

2

Windshield, Smoke, 15-Inch

5435045

Unavailable

3

RETAINER, WINDSHIELD

5410970

$1.49

4

Retainer, Bolt, Lamp

7670133

Unavailable

5

Indicator Reverse

4010687

Unavailable

6

Plug, Dash, w/Hole

5434081

Unavailable

7

Harness, Jumper Reverse Light

2461031

$5.75

8

Bracket, Speedometer/Tachometer

3280210

$28.32

9

Cushion, Rubber

3280209

$3.99

10

Knob, Trip Odometer

3280186

$9.70

11

Bulb, Replacement

4030015

$4.03

11

Asm., Speedometer

3280411

$339.98

12

Washer, Flat

3280157

$2.39

13

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

14

Cable, Speedometer

3280385

$93.08

15

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

16

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

16

Washer, Flat

7556088

$4.79

16

Asm., Mirror, Edge, LH

2632246-070

$89.99

16

Asm., Mirror, Edge, RH

2632247-070

$89.99

17

Clip, Plastic, Dart, Nylon

4010589

$2.39

17

Clip, Plastic, Dart, Nylon

4010589

$2.39

18

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

19

Nut, Nylok

7541925

$1.49

20

Cable, Hood Retainer

7080521

$24.27

21

RIVET-3/16-.090-.290

7661637

$1.49
