Description

Price

1

Bolt

7512265

$3.99

2

WASHER, SPRING LOCK

7552801

$1.59

3

BEARING, COVER

3576516

$28.32

4

RING-RETAINING,COVER

7710417

$1.49

5

Spring, Clutch, Dark Blue/White

7041781

$56.65

6

NUT-JAM

5020425

$23.99

7

WASHER,MULTILUBE

5430945

$1.59

8

ASM-ROLLER AND BUSHING

1321622

$32.37

9

BUTTON, GUIDE

5430445

$6.39

9

BUTTON, GUIDE

5430445

$6.39

10

Spacer [.050]

5210754

Unavailable

10

Spacer [.025]

5242981

Unavailable

10

Spacer [.020]

5210752

Unavailable

10

Spacer [.032]

5210753

Unavailable

10

Spacer [.130]

5132542

Unavailable

11

Asm., Weight/Bushing [10-62]

1321586

$40.46

12

PIN-WEIGHT,HARDENED,1/4X2.00

7515105

$13.75

13

Bearing, Sleeve

3576502

$23.99

14

INSERT-MOVEABLE

5010188

$7.99

15

Gear, Ring

5133649

Unavailable

16

SCREW

7515351

$3.99

17

NUT, FLEXLOC

7541906

$3.19

18

Asm., Drive Clutch ES Basic 126 [Incl. All Less 5,11]

1322316

Unavailable

19

Kit - Shim, Drive Clutch

2200387

$24.27

20

PIN, ROLLER

5133079

$6.39

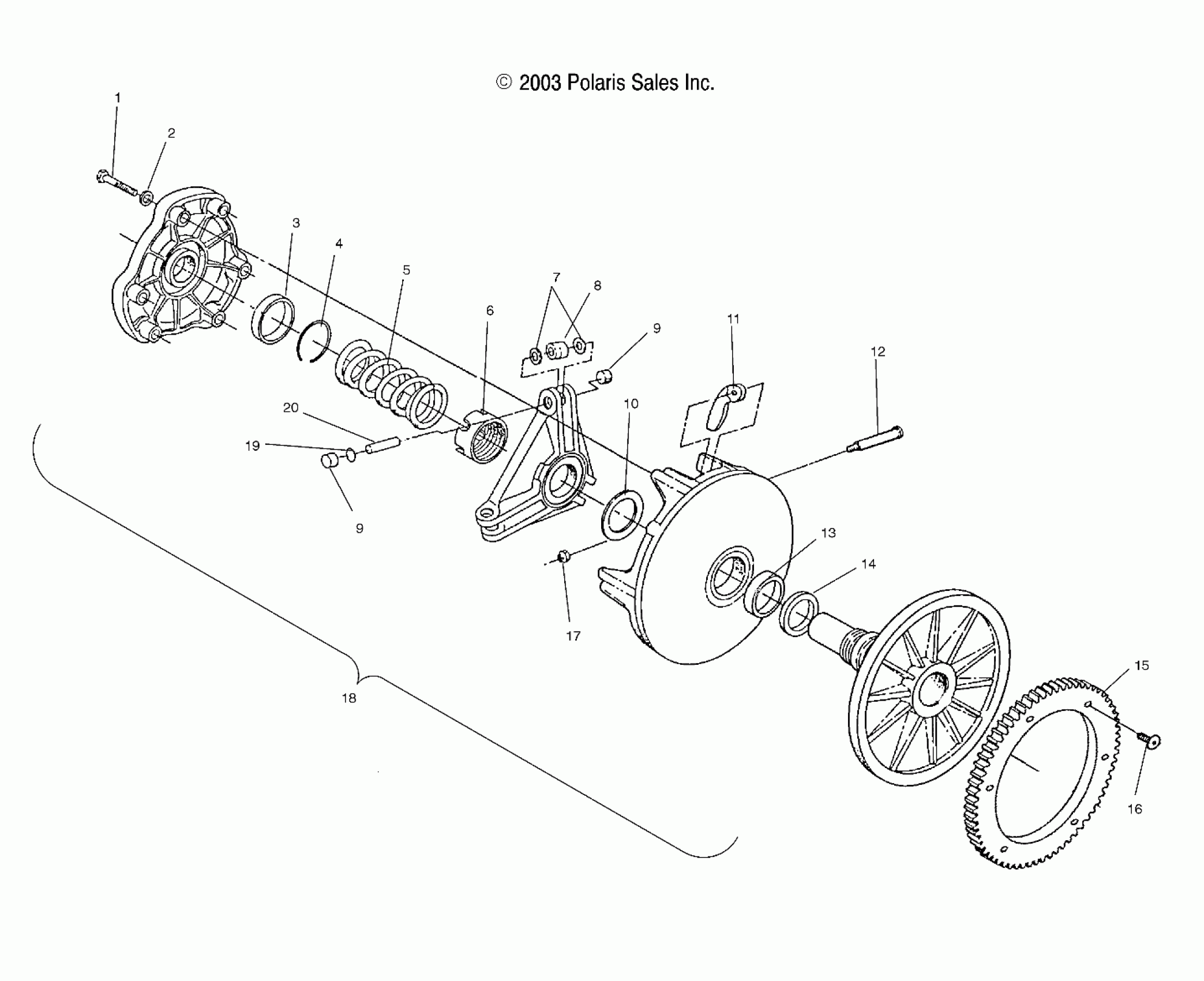

Polaris 550 CLASSIC EDGE - S04ND5BS DRIVE CLUTCH - S04ND5BS (4988358835B12) Diagram

Bolt

WASHER, SPRING LOCK

BEARING, COVER

RING-RETAINING,COVER

Spring, Clutch, Dark Blue/White

NUT-JAM

WASHER,MULTILUBE

ASM-ROLLER AND BUSHING

BUTTON, GUIDE

BUTTON, GUIDE

Spacer [.050]

Spacer [.025]

Spacer [.020]

Spacer [.032]

Spacer [.130]

Asm., Weight/Bushing [10-62]

PIN-WEIGHT,HARDENED,1/4X2.00

Bearing, Sleeve

INSERT-MOVEABLE

Gear, Ring

SCREW

NUT, FLEXLOC

Asm., Drive Clutch ES Basic 126 [Incl. All Less 5,11]

Kit - Shim, Drive Clutch

PIN, ROLLER
