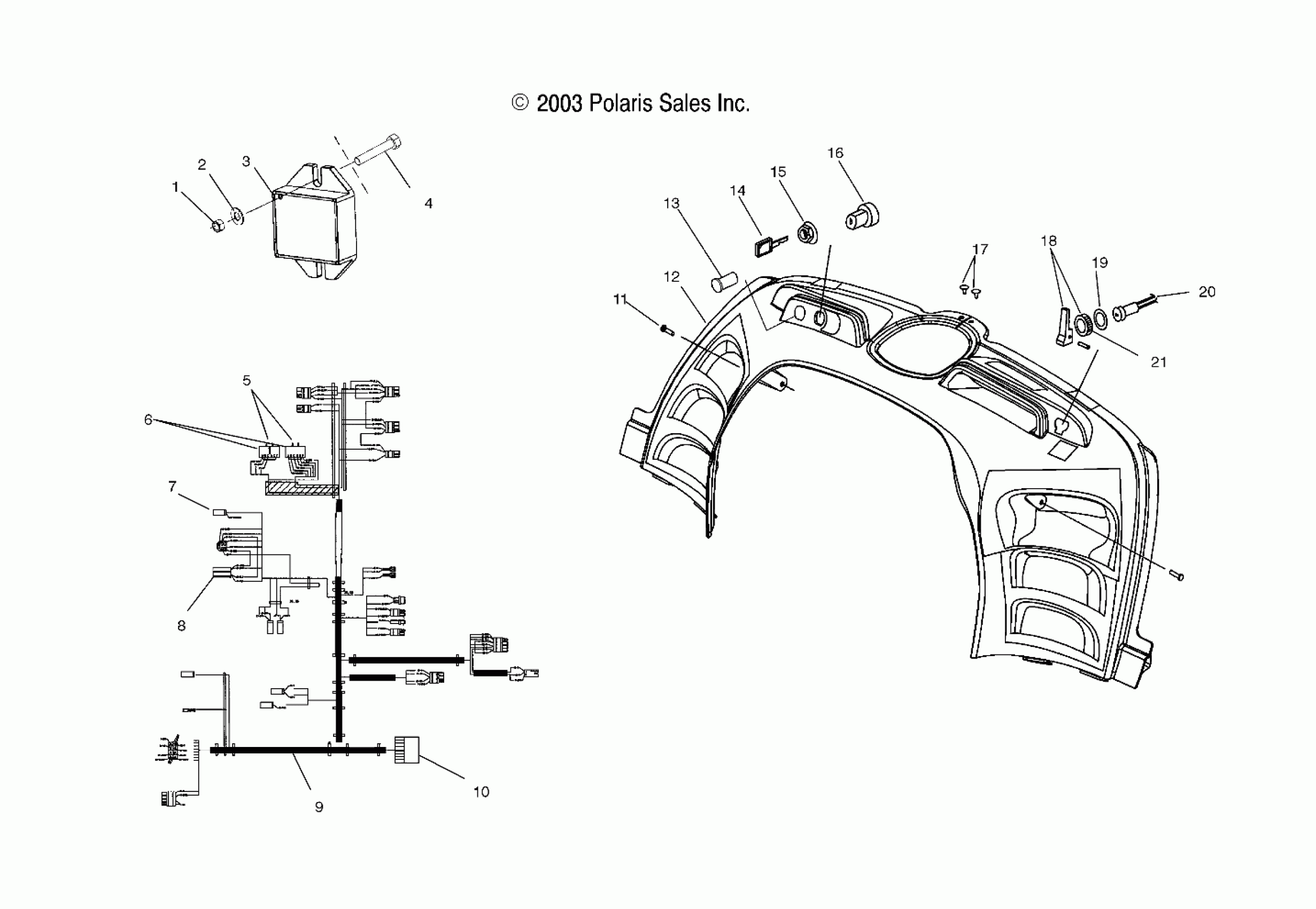

Polaris 550 CLASSIC EDGE - S04ND5BS CONSOLE - S04ND5BS (4988358835A12) Diagram

#

Description
Price

1

Nut, Nylok

7541925

$1.49

2

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

3

Regulator, AC/DC 14.3V

4010794

$116.17

4

Screw

7517263

Unavailable

5

Housing, Connector

4010193

$8.79

6

Socket

4010192

Unavailable

7

Terminal, Ring

4020092

Unavailable

8

HOUSING

4020063

$3.19

9

Harness, Main

2461148

$257.99

10

Housing

4020057

$3.51

11

Screw

7515199

$1.49

12

Console w/ACC

5434483-070

Unavailable

13

Receptacle Pod Mnt

4010638

$24.27

14

Cap w/Key NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on underside of switch body behind console. Key dot code found o

5410611

Unavailable

15

Nut, Ignition

7547035

$8.79

16

Kit, Ignition Switch

2200358

$76.89

17

CLIP-PLASTIC DART, NYLON

7670088

$1.59

18

Kit, Choke Control [Incl. Pin]

2200188

$24.27

19

Washer

7571610

$3.99

20

Cable, Choke Control [Incl. 21,18]

7080290

$105.22

21

Nut, Choke, Slide

7080229

$19.99
