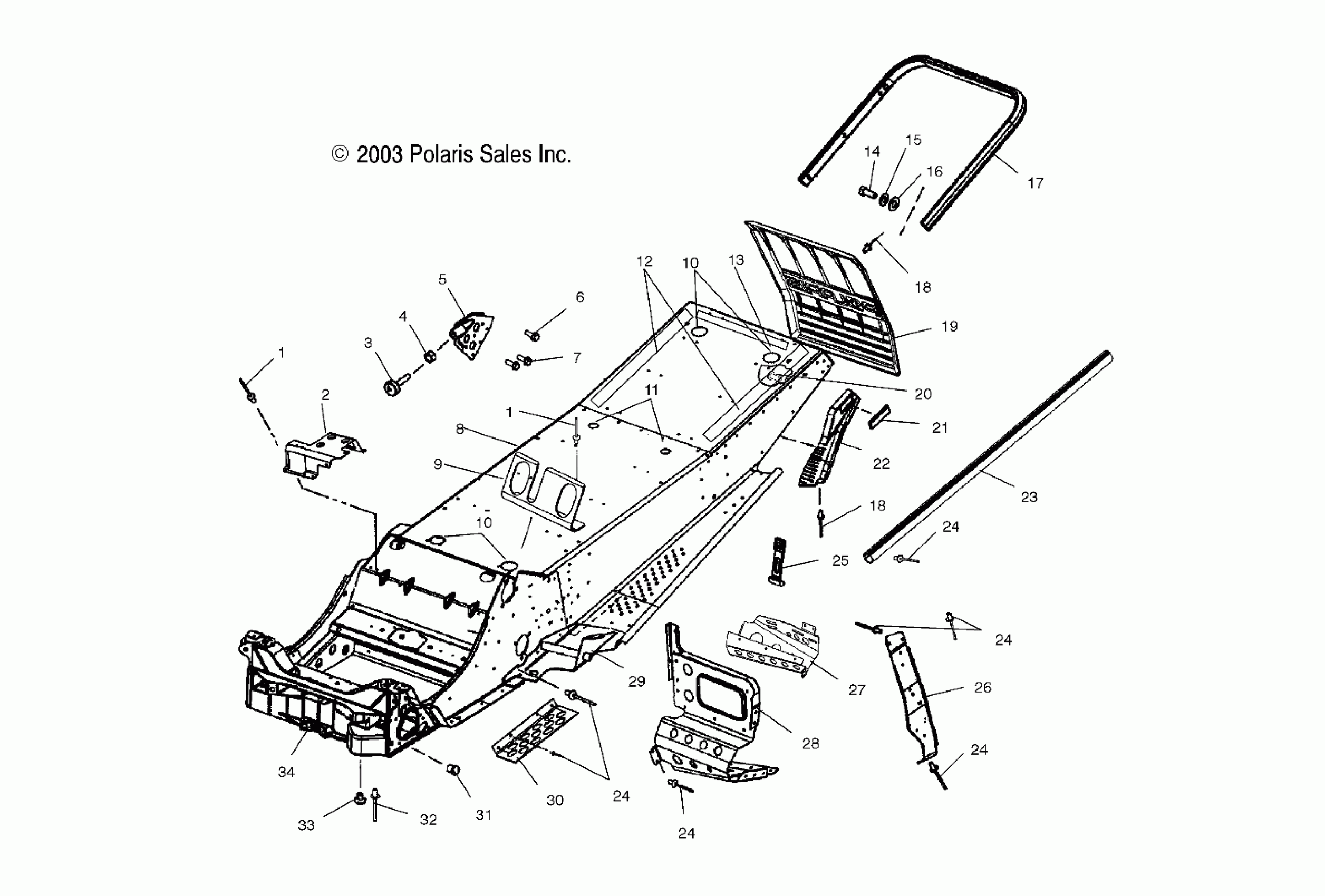

Polaris 550 CLASSIC EDGE - S04ND5BS CHASSIS - S04ND5BS (4988358835A03) Diagram

#

Description
Price

1

Rivet

7621432

$1.49

1

Rivet

7621432

$1.49

2

Bracket, Oil Tank/Hose Support

5246330

$13.19

3

Stop, Torque

3021104

$20.22

4

NUT

7542404

$1.59

5

Stop, Torque

1013399

$27.19

6

SCREW

7517632

$5.59

7

Screw

7517854

$5.59

8

Asm., Chassis, Edge, Natural [Incl. 26-29,34]

1014086-067

Unavailable

9

Brkt Airbox Edge

5246177

$18.23

10

Caplug

7080934

$1.83

10

Caplug

7080934

$1.83

11

Caplug

7080592

Unavailable

12

Gasket, Seat Base

5812290

$1.49

13

Gasket, Seat Base, 1/4 Inch

5812360

$1.83

14

Bolt

7512232

$1.49

15

WASHER, SPRING LOCK

7552801

$1.59

16

Washer, Flat

7558301

$1.49

17

Bumper, Rear, Unpainted

2632165-309

Unavailable

18

RIVET

7621472

$1.49

18

RIVET

7621472

$1.49

19

Flap, Snow, Short, Black/Chrome

5433961-1106

Unavailable

20

Screw

7517441

$2.39

21

ASM., REFLECTOR, RED

2670133

$5.75

22

Asm., Snowskirt, Refl., LH

2632443-070

$64.75

22

Asm., Snowskirt, Refl., RH

2632444-070

$55.99

23

Brace, Tunnel Roll

5245118-067

$22.23

24

RIVET-3/16-.090-.290

7661637

$1.49

24

RIVET-3/16-.090-.290

7661637

$1.49

24

RIVET-3/16-.090-.290

7661637

$1.49

24

RIVET-3/16-.090-.290

7661637

$1.49

24

RIVET-3/16-.090-.290

7661637

$1.49

25

STRAP-AIRBOX TOP

5433150

$24.27

26

Support, Footrest, LH

5246310-067

$19.68

26

Support, Footrest, RH

5246311-067

Unavailable

27

Mount, Console, Toe Clip, LH

5245457-067

Unavailable

27

Mount, Console, Toe Clip, RH

5245458-067

Unavailable

28

Footrest, LH

5245288-067

Unavailable

28

Footrest, RH

5247205-067

Unavailable

29

Kit, Trailing Arm Mount, LH

2202059

$213.00

29

Kit, Trailing Arm Mount, RH

2202598

$124.99

30

Guard, Belt

5246066

Unavailable

31

PLUG, HOLE

7080416

$5.65

32

Rivet

7661130

$1.49

33

Plug, Hole

7081076

$3.22

34

Bulkhead, Front

5132292

$115.99
