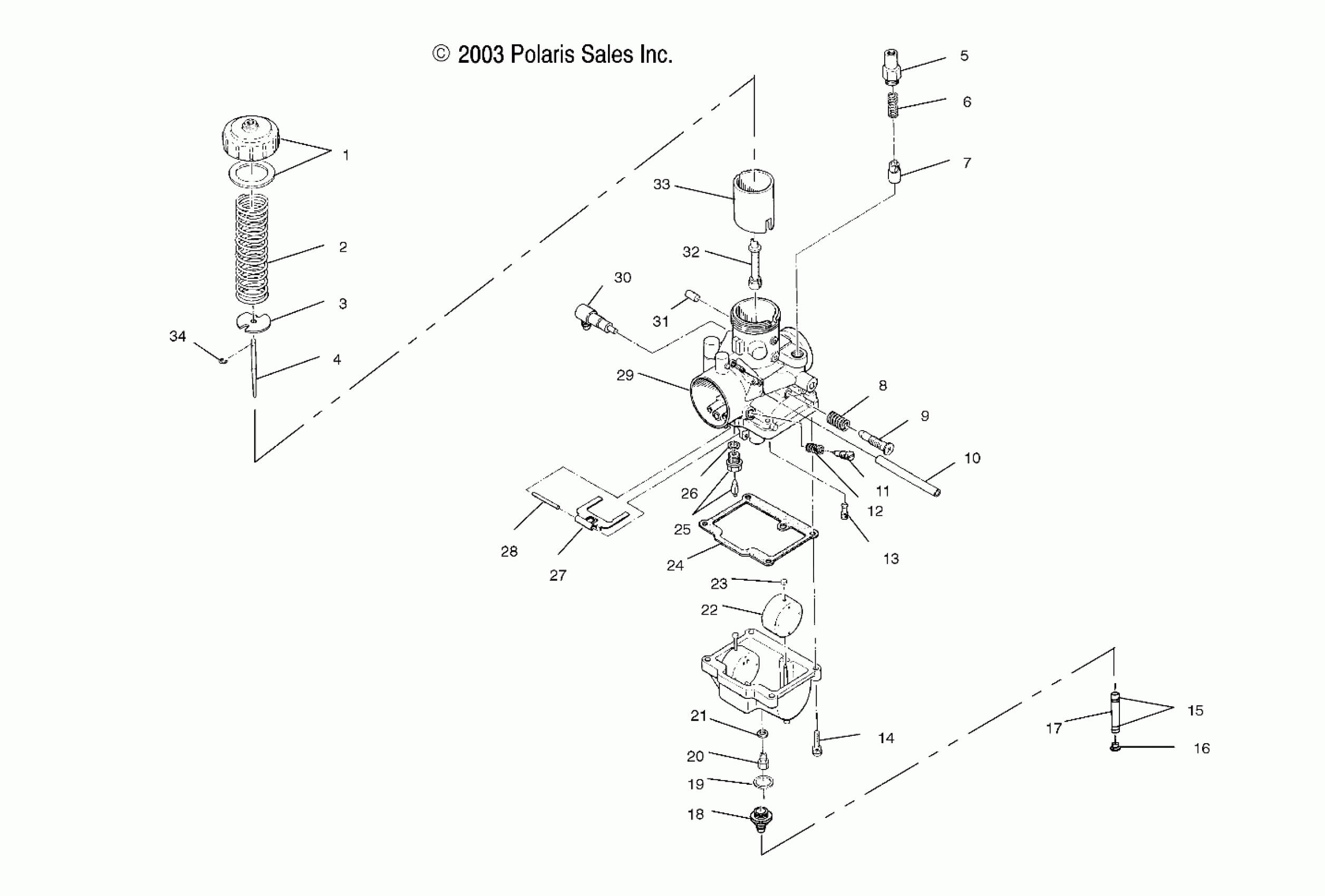

Polaris 550 CLASSIC EDGE - S04ND5BS CARBURETOR - S04ND5BS (4988358835C09) Diagram

#

Description
Price

1

Asm., Top, Mixing Chamber

3130877

Unavailable

2

SPRING, THROTTLE

3130439

$13.59

3

Plate, Throttle

3130879

Unavailable

4

Needle, Jet [6BGY33]

3131416

Unavailable

5

Cap, Plunger

3130199

$28.32

6

Spring, Plunger

3130884

Unavailable

7

Asm., Plunger

3130328

$32.37

8

SPRING, THROTTLE ADJUSTER

3130010

$8.89

9

SCREW, THROTTLE STOP

3130437

Unavailable

10

Hose

3131288

$10.71

11

Screw, Air

3130011

$19.99

12

Spring, Screw, Throttle Stop

3130012

$8.89

13

Pilot Jet [#40]

3130067

$10.99

14

Asm., Screw and Washer

3130025

$3.19

15

HOSE CLAMP, RED

7080003

$1.49

16

Plug, Trap

5431893

$12.94

17

Line, Fuel

8350017-600

Unavailable

18

Fitting, Sediment

5020476

$10.63

19

O-RING

3130239

Unavailable

20

Main Jet [#280][PTO]

3130131

$7.27

20

Main Jet [#270][Mag]

3130130

$7.27

21

WASHER

3130014

$1.59

22

Asm., Float

3130430

$43.56

23

Cap

3130237

$4.03

24

Gasket, Float Chamber

3130020

$16.17

25

Needle Valve [1.5]

3131146

$48.56

26

Packing, Needle Valve

3130017

$4.03

27

Arm, Float

3130018

$24.27

28

PIN, FLOAT

3130361

$8.89

29

Asm., Carburetor [MAG][Incl. 1-14,18-34]

3131520

$395.22

29

Asm., Carburetor [PTO][Incl. 1-14,18-34]

3131521

$395.22

30

Asm., Valve, Check

3083337

Unavailable

31

CAP

3130479

$14.56

32

Needle Jet 480 [Q-2]

3130894

Unavailable

33

Throttle Valve [3.0]

3130372

$52.60

34

E-RING

3130508

$6.46
