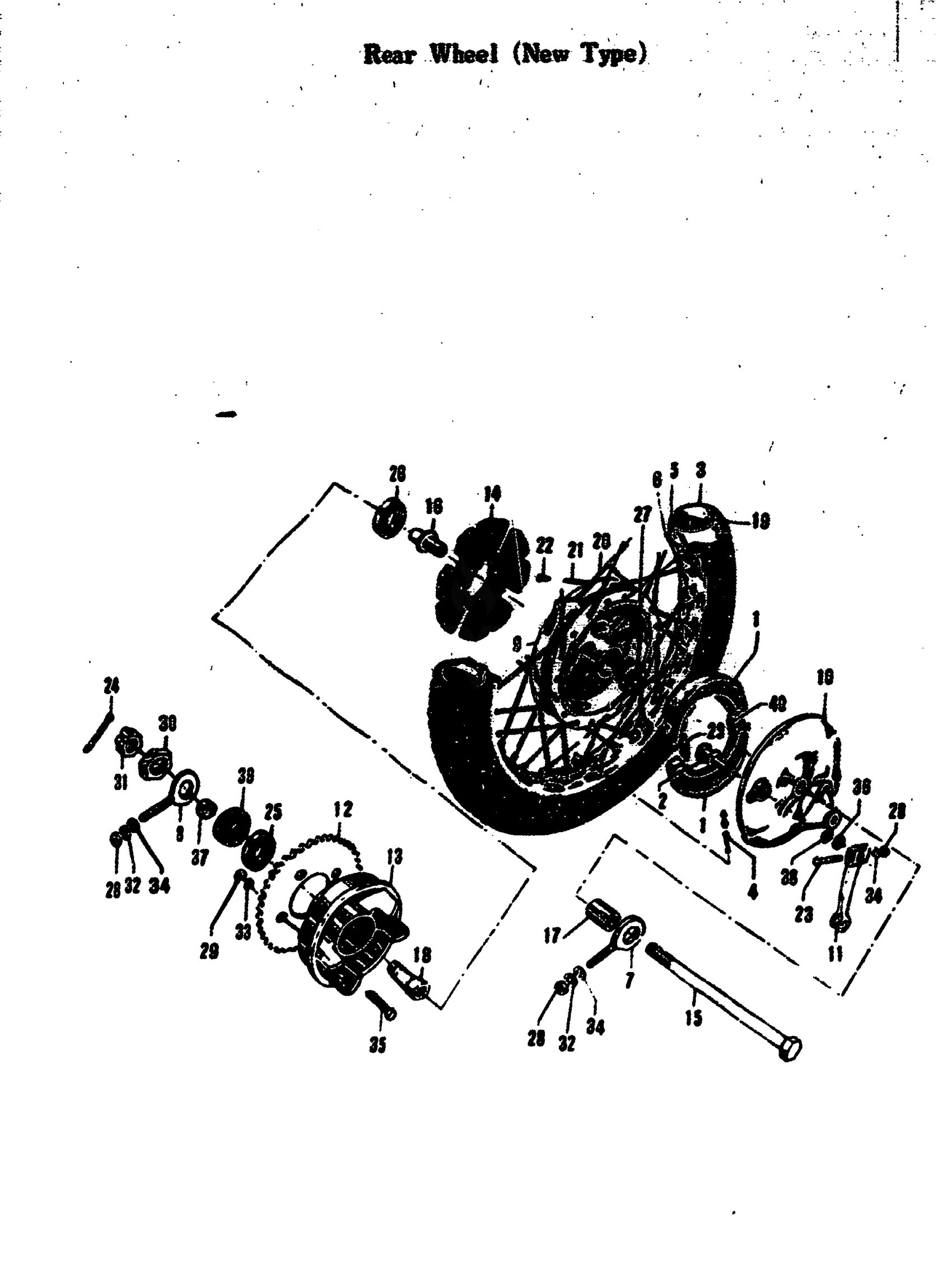

Suzuki M31 (1968) REAR WHEEL (NEW TYPE) Diagram

#

Description
Price

REAR HUB ASS'Y | REF.NOS.1,2, 9~11, 13~18,,38&40

64000-01857

Unavailable

1

NO DESCRIPTION AVAILABLE This part replaces 58410-01002.

58410-01X00

Unavailable

2

BRAKE CAM SHAFT

54441-01000

Unavailable

3

INNER TUBE | REF.NO.4 SIZ=2.25'.17'

55200-01600

Unavailable

4

INNER TUBE VALVE

55250-01000

Unavailable

5

PROTECTOR, INNER TUBE | '.17' This part replaces 55261-01010.

55261-02B40

$6.88

6

RIM WHEEL | '.17' This part replaces 55311-01020.

55311-01021

Unavailable

7

ADJUSTER, CHAIN This part replaces 61411-01001.

61411-01002

$7.37

8

LEFT CHAIN ADJUSTER (A)

61421-01001

Unavailable

9

REAR HUB DRUM

64110-01600

Unavailable

10

REAR HUB PANEL

64210-01603

Unavailable

11

REAR BRAKE CAM LEVER

64451-01602

Unavailable

12

SPROCKET, REAR | N.T.=32) T. =6.0(0.24) This part replaces 64511-01780.

64511-27750

Unavailable

REAR SPROCKER | N.T. =30) T. 6.0(0.24)

64511-01770

Unavailable

13

REAR SPROCKET MOUNTING DRUM

64611-01000

Unavailable

14

ABSORBER,RR WHL This part replaces 64651-01000.

64651-010B1

$21.50

15

REAR AXLE | ATED

64710-01601

Unavailable

16

REAR HUB BEARING SPACER | 3 0.38, L.D. =12.7 0.50, W.

64730-01000

Unavailable

17

REAR AXLE RIGHT SPACER

64741-01601

Unavailable

18

REAR SPROCKET MOUNTING DRUM S

64761-01000

Unavailable

19

REAR TIRE | ' 17'4PR

65100-01010

Unavailable

NO DESCRIPTION AVAILABLE | REF NO. 20-22 This part replaces 65301-01817.

65320-01010

Unavailable

20

REAR INNER SPOKE | . 11)L =161'6.34 A. =1015)

65321-01021

Unavailable

21

REAR OUTER SPOKE | .11) L. =160.5(6.30) A. =88.0(0.315)

65322-01021

Unavailable

22

REAR SPOKE NIPPLE

65325-01020

Unavailable

23

HEXAGON BOLT

01111-06307

Unavailable

24

COTTER PIA

04111-20258

Unavailable

25

BEARING, DRIVE SHAFT RH This part replaces 08113-62030.

09262-17023

$16.75

26

BEARING | ARING This part replaces 08143-62010.

08143-6201B

$10.80

27

B1 12X37X12 BEA | ARING This part replaces 08143-63010.

08143-6301B

$19.20

28

HEXAGON NUT

08311-11067

Unavailable

29

NUT This part replaces 08312-31088.

08310-00087

$2.13

30

SMALL HEXAGON NUT

08312-31167

Unavailable

31

NUT This part replaces 08314-11107.

08314-3110A

$1.99

32

LOCK WASHER

08321-21668

Unavailable

33

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

34

WASHER This part replaces 08322-21068.

08322-01067

$2.13

35

REAR SPROCKET BOLT | (0.31) L.=33(1.30)

09105-08001

$2.06

36

BRAKE CAM SHAFT DUST SEAL WAS | (0.79) I.D. =12.5(0.49) T.=1

09160-12011

$1.54

37

REAR MOUNTING DRUM SHAFT SPAC | 0.98 I.D. =17(0.67) W.=10.5

09180-17004

$6.63

38

BRAKE CAM SHAFT SEAL | 2(0.64) I.D.=11.4(0.45) T.2.4(0.01

09280-12001

$2.90

39

SPROKET MOUNTING DRUM OIL SEA | 58) I.D.=24.1(0.95) W.=6.0(0.24)

09283-25001

Unavailable
