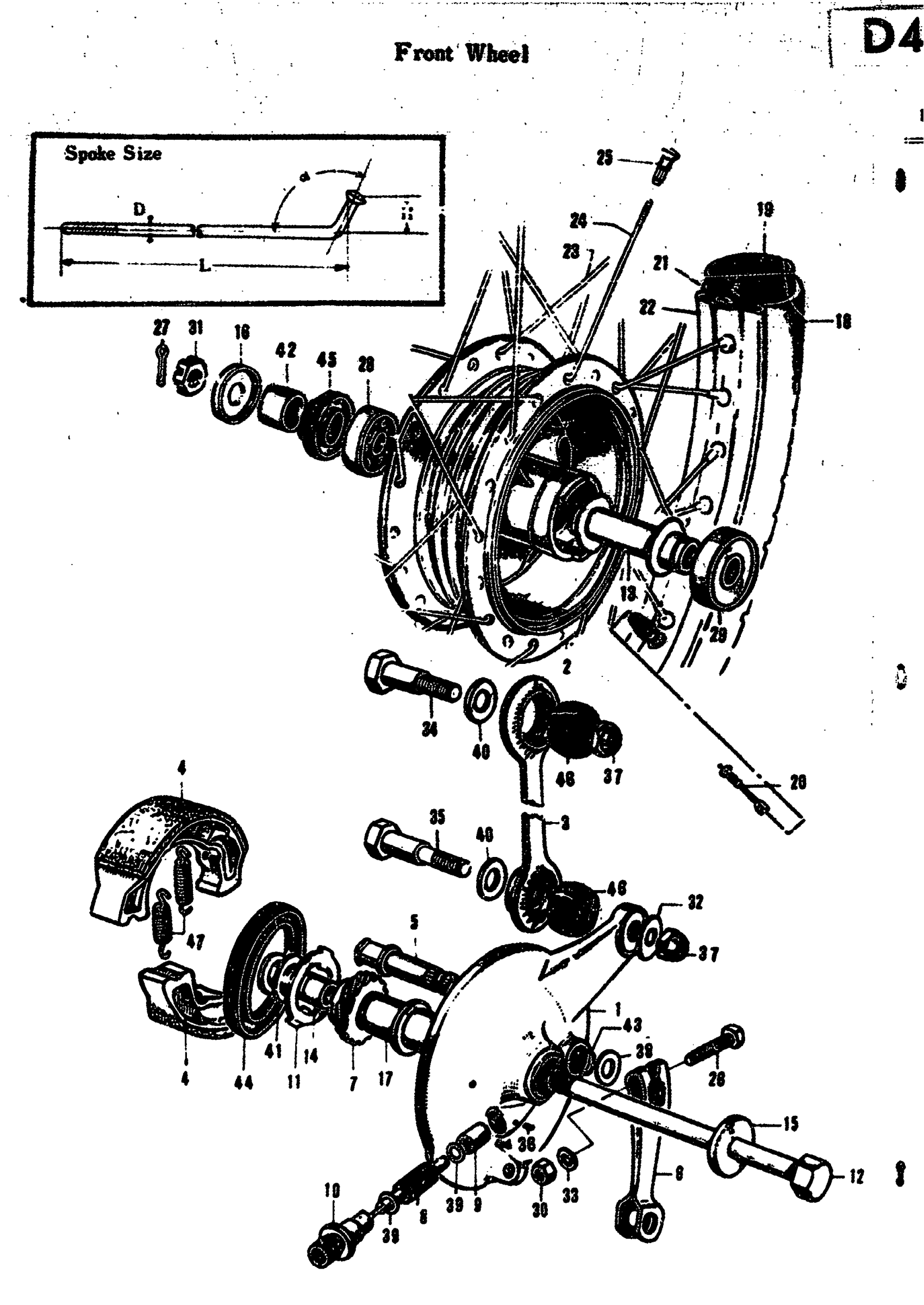

Suzuki M31 (1968) FRONT WHEEL Diagram

#

Description
Price

FRONT HUB ASS'Y | UDES REF NOS. 1,2,4~17,28,34,~37,39-45&47

54002-01809

Unavailable

1

FRONT HUB PANEL COMP | UDES REF NOS.9&17

54005-01811

Unavailable

2

FRONT HUB DRUM

54110-01604

Unavailable

3

FRONT TORQUE LINK | STED

54310-02602

Unavailable

4

BRAKE SHOE

54410-01002

Unavailable

5

BRAKE CAM SHAFT

54441-01000

Unavailable

6

FRONT BRAKE CAM LEVER | STED

54451-02602

Unavailable

7

SPEDOMETER PINION

54611-02000

Unavailable

8

SPEDOMETER GEAR

54621-02000

Unavailable

9

SPEDOMETER GEAR INNER HUSHING

54631-01000

Unavailable

10

SPEDOMETER OUTER BUSHING

54632-01001

$12.80

11

SPEDOMETER PINION DRIVE

54661-02000

Unavailable

12

FRONT ASLE | STED

54710-02600

Unavailable

13

FRONT HUB BEARING SPACER

54730-01000

Unavailable

14

FRONT HUB PANEL SPACER

54761-02002

Unavailable

15

FRONT HUB PANEL SPACER DUST S

54851-02031

Unavailable

16

FRONT HUB DRUM DUST SEAL

54862-01000

Unavailable

17

FRONT HUB PANE BUSHING

54931-02000

Unavailable

18

FRONT TIRE | 124PR

55100-01010

Unavailable

19

INNER TUBE | :17 INCLUDES REF.NO.30

55200-01600

Unavailable

20

INNER TUBE VALVE

55250-01000

Unavailable

21

RIM WHEEL | 5" 17" This part replaces 55311-01020.

55311-01021

Unavailable

22

RIM WHEEL | " 17" CHROME PISTED This part replaces 55311-01020.

55311-01021

Unavailable

22

SPOKE SET FR | REF. NOS. 23~25 This part replaces 55301-01812.

55320-01012

$36.58

23

FRONT INNER SPOKE | 30) L =160.5(6.32) a.104

55321-01021

Unavailable

24

FRONT OUTER SPOKE | .10) L.=180(6.30)a.=82*3028)

55322-01021

Unavailable

25

FRONT SPOKE NIPPLE

55325-01020

Unavailable

26

HEXAGON BOLT

01111-06307

Unavailable

27

COTTER PIN

08113-62000

$13.63

28

BALL BEARING

08113-62000

$13.63

29

BEARING | ARING This part replaces 08143-63000.

08143-6300B

$15.33

30

HEXAGON NUT

08311-11067

Unavailable

31

NUT This part replaces 08314-11107.

08314-3110A

$1.99

32

WASHER This part replaces 08322-11088.

08322-01087

$2.13

33

WASHER This part replaces 08322-21068.

08322-01067

$2.13

34

FRONT TORQUE LINK BOLT

09111-08002

Unavailable

35

FRONT HUB PANEL FIAING BOLT | STED

09111-08004

Unavailable

36

SCREW,3X4.3 This part replaces 09134-03101.

09134-03101-A05

$1.78

36

SPEEDED METER GEAR OUTER BUSH

09134-03001

Unavailable

37

LOCK NUT2 | STED

09159-08002

Unavailable

38

BRAKE CAM SHAFT DUST SEAL WAS | .79) I.D.=12.5(0.49) T.=1..79) I.D.=12.5(0.49) T.=1.

09160-12011

$1.54

39

SPEEDOMETER PINION THRUST WAS | 35) L.D.=5.1(0.49) T.=0.4(35) L.D.=5.1(0.49) T.=0.4(

09160-12011

$1.54

40

FRONT TORQUE LINK WASHER | .95) L.D.=12.2(0.48) T.=1.

09160-12013

Unavailable

41

THRUST WASHER | .95) I.D.=12.2(0.48) T.=1.95) I.D.=12.2(0.48) T.=1 This part replaces 09160-16004.

09160-16005

Unavailable

42

FRONT AXIE SPACER

09160-16003

$2.92

43

BRAKE CAM SHAFT DUST SEAL

09280-12001

$2.90

44

FRONT HUB PANEL OIL SEAL | .28) I.D.=43(1.54) W.=7(0.

09283-43001

Unavailable

45

OIL SEAL (15X31X5) | .22) L.D.=15(0.59) W.=9.5(

09284-15001

$4.73

46

FRONT TIRQUE LINK BUSHING

09305-12002

Unavailable
