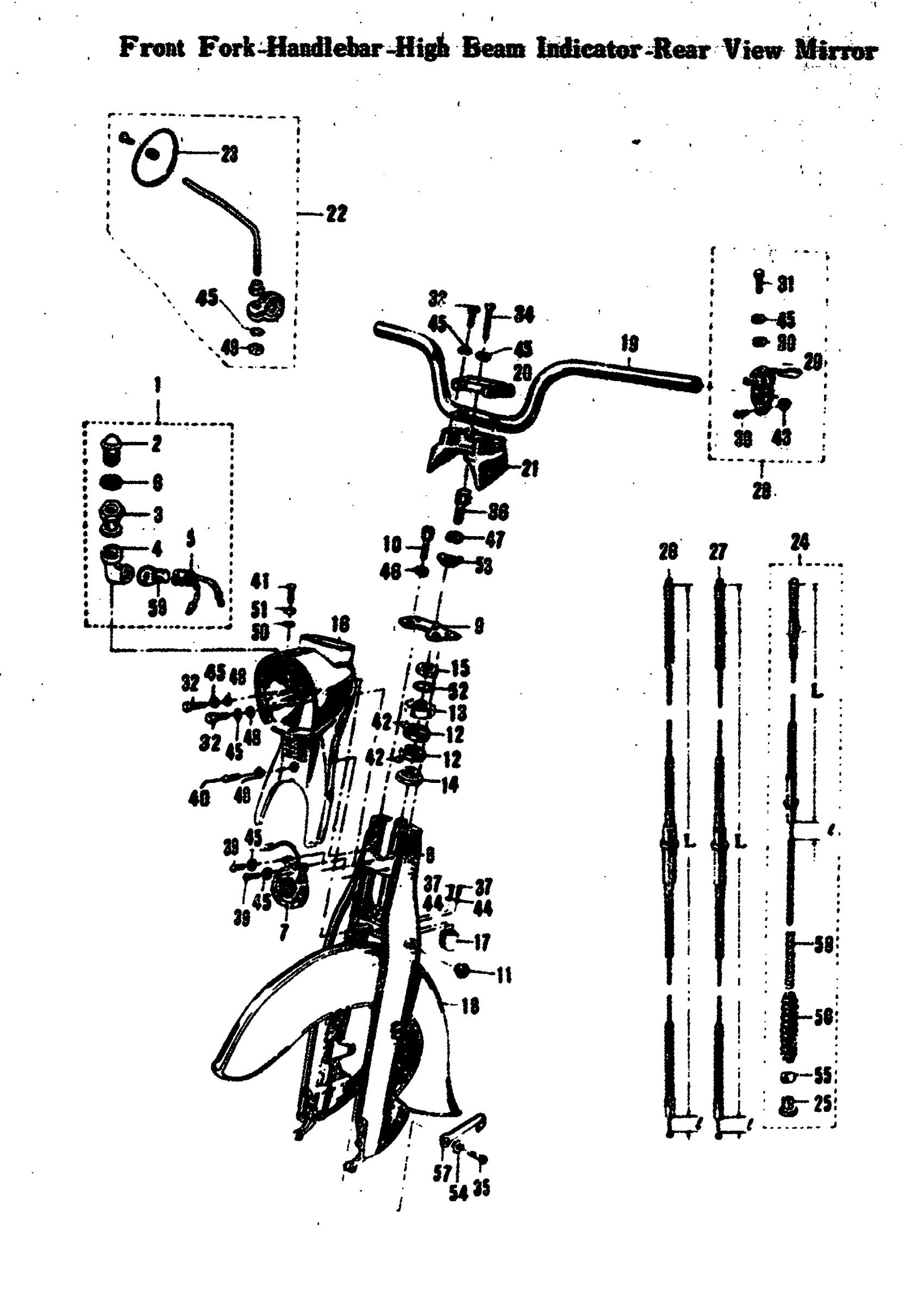

Suzuki M31 (1968) FRONT FORK-HANDLEBAR-HIGH BEAM INDICATOR-REAR VIEW MIRROR Diagram

#

Description
Price

1

HIGH BEAM INDICATOR LAMP ASS'

36330-02610

Unavailable

2

HIGH BEAM INDICATOR LAMP BULB

36331-01610

Unavailable

4

HIGH BEAM INDICATOR LAMP HOLD

36334-01610

Unavailable

3

HIGH BEAM INDICATOR LAMP BULB

36332-01610

Unavailable

5

HIGH BEAM INDICATOR LAMP GASK

36335-01610

Unavailable

3

HOLDING NUT

36332-01610

Unavailable

6

HIGH BEAM INDICATOR LENS GASK

36337-01610

Unavailable

7

HORN

38500-01030

Unavailable

8

FRONT FORK | BEF.NO.14

51000-01838

Unavailable

9

STEERING STEM HEAD

51310-02000

Unavailable

10

STEERING STEM HEAD FRONT BOLT

51351-02000

Unavailable

11

FRONT FONT FORK JOINT CAP

51423-02001

Unavailable

12

STEERING INNER RACE

51611-01000

Unavailable

13

STEERING UPPER OUTER RACE

51621-01601

Unavailable

14

STEERING LOWER OUTER RACE

51622-01000

Unavailable

15

STEERING STEM LOCK NUT

51632-01060

Unavailable

16

HEAD LAMP HOUSING | CK)

51810-02601-091

Unavailable

16

HEAD LAMP HOUSING | MENT BED)

51810-02601-061

Unavailable

16

HEAD LAMP HOUSING

51810-02601-064

Unavailable

16

HEADLAMP HOUSING | T PERMENT

51810-02601-075

Unavailable

17

TEERING LOCK ASSY

51900-03012 S

Unavailable

18

FINNT FENDER

53111-02070-019

Unavailable

18

FRONT FENDER | ED

53111-02070-061

Unavailable

18

FRONT FENDER | E

53111-02070-064

Unavailable

18

FRONT FENDER | MENT BLUS

53111-02070-075

Unavailable

19

HANDIEBAR

56111-50950

Unavailable

20

HANDIEBAR UPPER CLAMP

56211-02600

Unavailable

21

HANDLEBAR LOWER CLAMP

56221-02600

Unavailable

22

REAR VIEW MIRROR ASSY

56500-03610

Unavailable

23

REAR VIEW MIRROR

56510-03611

Unavailable

24

BRAKE CABLE ASSY

58100-01741

Unavailable

25

BARKE CAM ADJUSTING NUT

58165-50000

Unavailable

26

THROTTLE CABLE

58310-02001

Unavailable

27

STATTER CABLE

58410-02001

Unavailable

28

STARTER LEVER ASSY

58700-03010

Unavailable

29

STARTER LEVER

58721-03010

Unavailable

30

.WASHER (6.5X16X1) This part replaces 58723-03010.

09160-06129

$2.30

31

HEXAGON BOLT

01111-06127

Unavailable

32

BOLT This part replaces 01111-06208.

01500-06207

$2.28

33

HEXAGON BOLT

01111-06357

Unavailable

34

HEXAGON BOLT

01111-06557

Unavailable

35

PLUG, DRAIN This part replaces 01121-08168.

01500-0816B

$2.50

36

SMALL HEAD HEXAGON BOLT

01121-10168

Unavailable

37

CROSS HEAD SCREW

02111-05088

Unavailable

37

CROSS HEAD SCREW

02111-05081

Unavailable

38

SCREW This part replaces 02111-05168.

02112-05167

$1.97

38

CROSS HEAD SCREW

02111-05161

Unavailable

39

SCREW This part replaces 02111-06128.

02112-06127

$1.84

40

CROSS HEAD SCREW

02111-06167

Unavailable

41

.SCREW This part replaces 02131-04127.

02122-0412A

$1.93

41

CROSS HEAD SCREW

02131-04122

Unavailable

42

STEEL BALL

06111-06004

Unavailable

43

NUT This part replaces 08311-11058.

08310-00057

$1.84

43

HEXAGON NUT

08311-11051

Unavailable

44

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

45

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

46

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

47

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

48

WASHER This part replaces 08322-21068.

08322-01067

$2.13

49

.LOCK WASHER This part replaces 08321-11088.

08321-01087

$2.13

50

HEAD LAMP RIM FITTING SCREW G

09161-04005

Unavailable

51

HEAD LAMP RIM FITTING WASHER

09165-04004

$1.93

52

STEERING STEM LOCK WASHER

09166-26001

$2.07

53

STEERING STEM HEAD WASHER

09167-10002

Unavailable

54

FRONT FENDER WASHER

09169-08002

Unavailable

55

BRAKE CAM LEVER PIN

09209-10001

$1.49

56

BRAKE CABLE BOOT

09287-07001

$2.00

57

FRONT FENDER CABLE CLIP

09403-00020

Unavailable

58

BRAKE CABLE SPRING

09440-06003

$2.44
