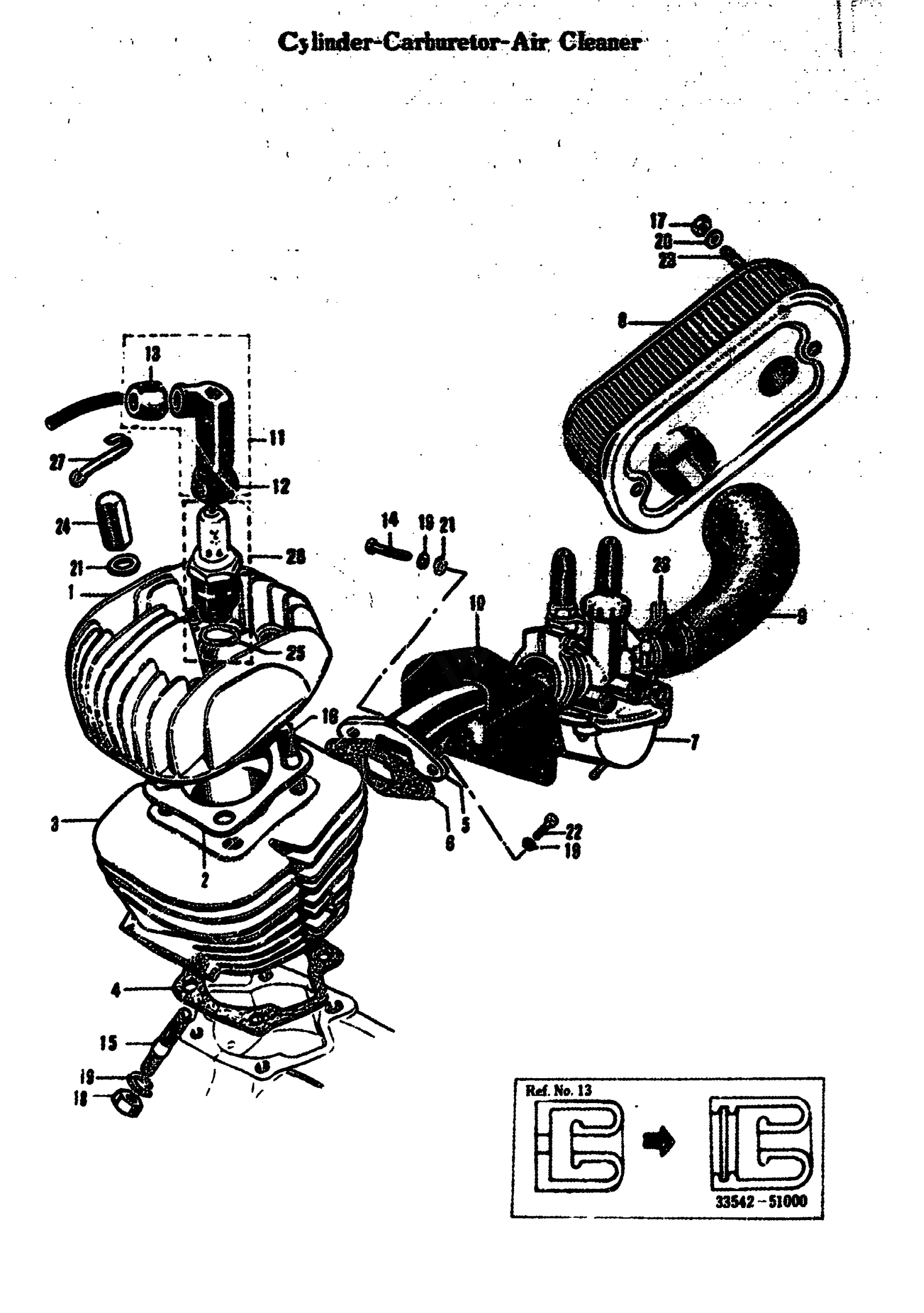

Suzuki M31 (1968) CYLINDER CARBURETOR - AIR CLEANER Diagram

#

Description
Price

1

CYLINDER HEAD

11111-02100

Unavailable

2

CYLINDER HEAD GASKET

11141-02100

Unavailable

3

CYLINDER

11211-02100

Unavailable

4

CYLINDER GASKET

11241-02000

Unavailable

5

INLET MANIFOLD

13111-02000

Unavailable

6

INLET MANIFOKE GASKET

13121-02000

Unavailable

7

CARBORETOR ASS'Y

13200-02110

Unavailable

8

AIR CLEANER COMP.

13700-02010

Unavailable

9

AIR CLEANER TUBE

13881-02000

Unavailable

10

FRAME DANT SEAL

13891-02000

Unavailable

11

SPARK PLUG CAP ASS'Y

33501-10801

Unavailable

12

SPARK PLUG CAP SEAL

33541-11000

Unavailable

13

SPARK PLUG CAP HIGH TE

33542-51000

Unavailable

14

STUD BOLT

01411-06168

Unavailable

15

BOLT,STUD This part replaces 01421-06958.

01421-0695A

$2.32

16

SCREW This part replaces 02112-06258.

02112-06257

$1.78

17

NUT This part replaces 08311-11058.

08310-00057

$1.84

17

NEXAGON NUT

08311-11051

Unavailable

18

.NUT This part replaces 08311-11068.

08310-00067

$2.13

19

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

20

WASHER This part replaces 08322-21058.

08322-01057

$2.13

21

WASHER This part replaces 08322-21068.

08322-01067

$2.13

22

INLET MANIFOLD FITTING BOLT

09100-06012

Unavailable

23

AIR CLEANER FITTING STUD BOLT

09108-05101

Unavailable

23

AIR CLEANER FITTING STUD BOLT

09108-05001

Unavailable

24

NO DESCRIPTION AVAILABLE This part replaces 09159-06002.

09159-06002-XC0

Unavailable

25

SPARK PLUG GASKET

09168-14004

$1.83

26

AIR CLEANER TUBE CLAMP

09386-31001

Unavailable

27

HIGH TENSION CORD CLAMP

09403-00022

Unavailable

28

SPARK PLUG ASS'Y | NGK 8.6

09482-00007

Unavailable

28

SPARK PLUG ASS'Y | NGK 8.4

09482-00006

Unavailable
