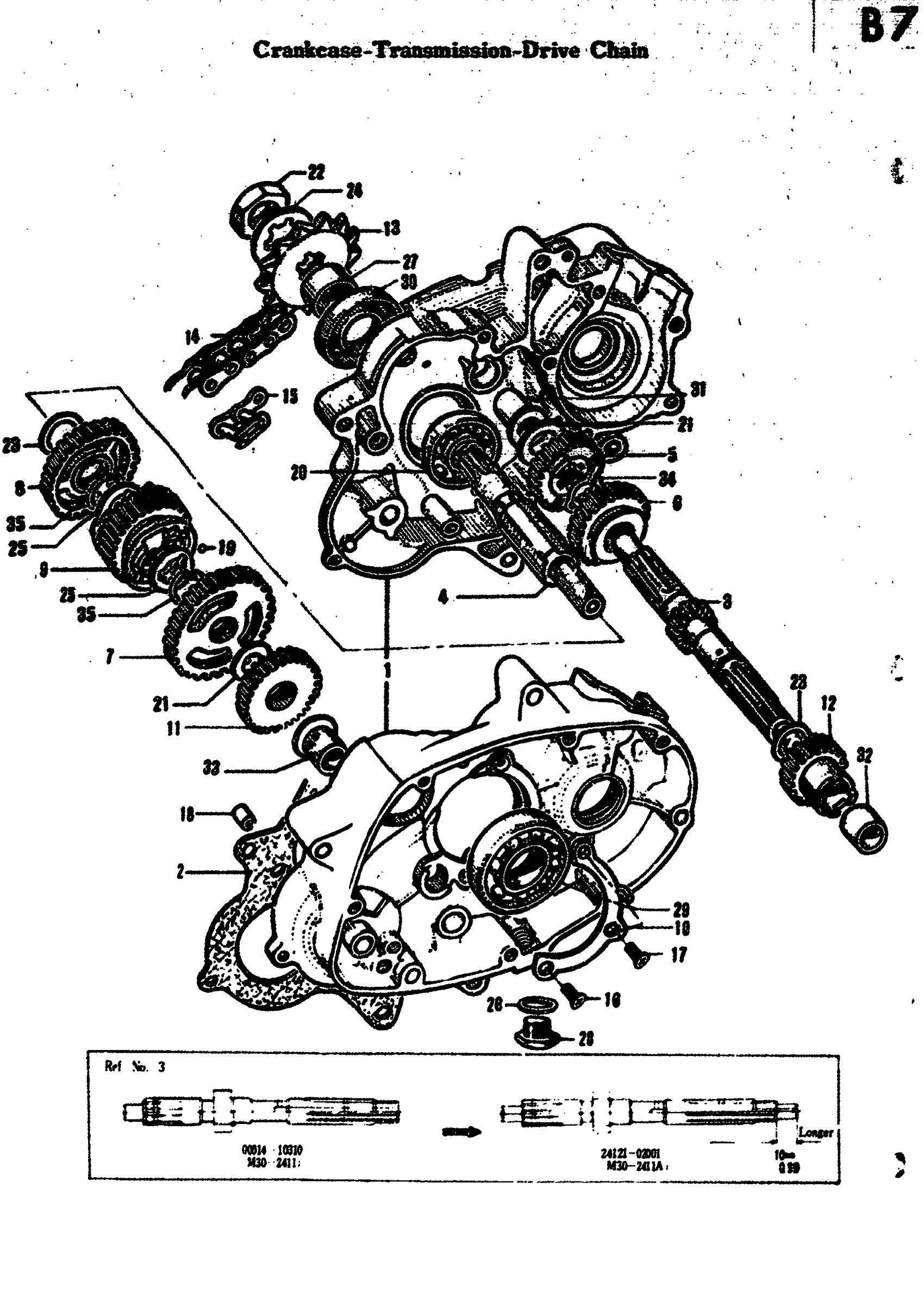

Suzuki M31 (1968) CRANKCASE-TRANSMISSION-DRIVE CHAIN Diagram

#

Description
Price

1

CRANKCASE ASS'Y | ANDES REF.NO.2.25 27 ON THND REF.NOS. 1(2PES) 13-1E25,27 (2PES) ON PAGE 4.

11303-02803

Unavailable

2

CRANKCASE GASKET

11481-02000

Unavailable

3

COUNTER SHAFT

24121-02001

Unavailable

3

COUNTER SHAFT | O. M30-149605

00014-10310

Unavailable

4

DRIVE SHAFT

24131-02000

Unavailable

5

SECOND PINION

24221-02000

Unavailable

6

TOP PINION | BE FOUND''I'' MARK ON THE

24231-02700

Unavailable

6

TOP PINION | P TO E.NO. M33-149606

24231-02000

Unavailable

7

LOW GEPR COMP | NELNDES BUSHING

24310-02001

Unavailable

8

SECOND GEAR

24321-02001

Unavailable

9

TOP GEAR | O BE FOUND''T'' MARK ON TH

24331-02700

Unavailable

9

TOP GEAR | P TO E.NO.M30-149605

24331-02001

Unavailable

10

COUNTER SHAFT BEARING FITTING

24741-02000

Unavailable

11

KICK STARTER IDIE GEAR COMP. | NCLUDES BUSHING

25260-03002

Unavailable

12

NO DESCRIPTION AVAILABLE | NCLUDES REF.NO.25 This part replaces 26280-03002.

26280-03003

Unavailable

13

SPROCKET, ENGINE (NT:12)* | #430 N.T.=12 This part replaces 27511-01710.

27511-04000

Unavailable

13

SPROCKET, ENGIN | #420 N.T.=11 This part replaces 27511-01700.

27511-01701

$18.20

13

ENGINE SPROCKET | #437 N.T.=13

27511-01000

Unavailable

14

DRIVE CHAIN ASS'Y

27600-01010

Unavailable

15

JOINT (DID) This part replaces 27620-01011.

27620-01012

$6.87

16

SCREW This part replaces 02121-06108.

02122-0610A

$1.68

17

CROSS HEAD SCREW

02121-06128

Unavailable

18

DOWEL PIN

04211-09129

$1.65

19

STEEL BALT

06111-05004

$1.49

20

BELL BEARING

08113-63030

$23.65

21

SECOND PINION LOW GEAR THRUST | .94) I.D=12(0.47)04)

08211-12241

$2.06

22

ENGINE SPROKET NUT

09140-16002

$3.16

22

NUT | -017004 TO BE USED AS CLUT HAD NUT This part replaces 09140-16001.

09140-16005

$3.75

23

WASHER, 2ND DRIVE GEAR | .14) L.D.=17(0.62) T.=1.0( This part replaces 09160-17001.

09181-17223

$2.96

24

ENGINE SPROKET LOCK WASHER | .3) I.D.=13.(0.51)T.=1.0(0.

09167-16001

$1.87

24

WASHER | 311-017004 OPTIONAL This part replaces 09167-16002.

09167-16001

$1.87

25

TOP GEAR WASHER | .14) T.=1.2(0.047)

09167-26001

Unavailable

26

DRAIN PLUG GASKET | (0.57) T.=1.0(0.04)

09168-14004

$1.83

27

ENGINE SPROCKET SPACER | .03) I.D.=17(0.67) W.=13(0

09180-17008

$8.58

28

DRIAN PLUG | .55)SCREW L=8(0.31)

09247-14004

Unavailable

29

BEARING | .41)I.D.=30(1.18) W.=10(0.39) This part replaces 09262-30002.

09262-30003

Unavailable

30

DRIVE SHAFT OIL SEAL | .58) I.D.=21(0.83) W=14.7(0.58)

09283-21001

$12.70

31

SNAP RING

09381-12001

$1.49

32

KICK STARTER GEAR BUSHING | 91),I.D.20.7(0.81),W.=14.7(0.58)

09304-20001

Unavailable

33

DRIVE SHAFT BUSHING

09319-12004

Unavailable

34

TRANSMISSION SHAFTCIRCLIP

09380-17001

$1.98
