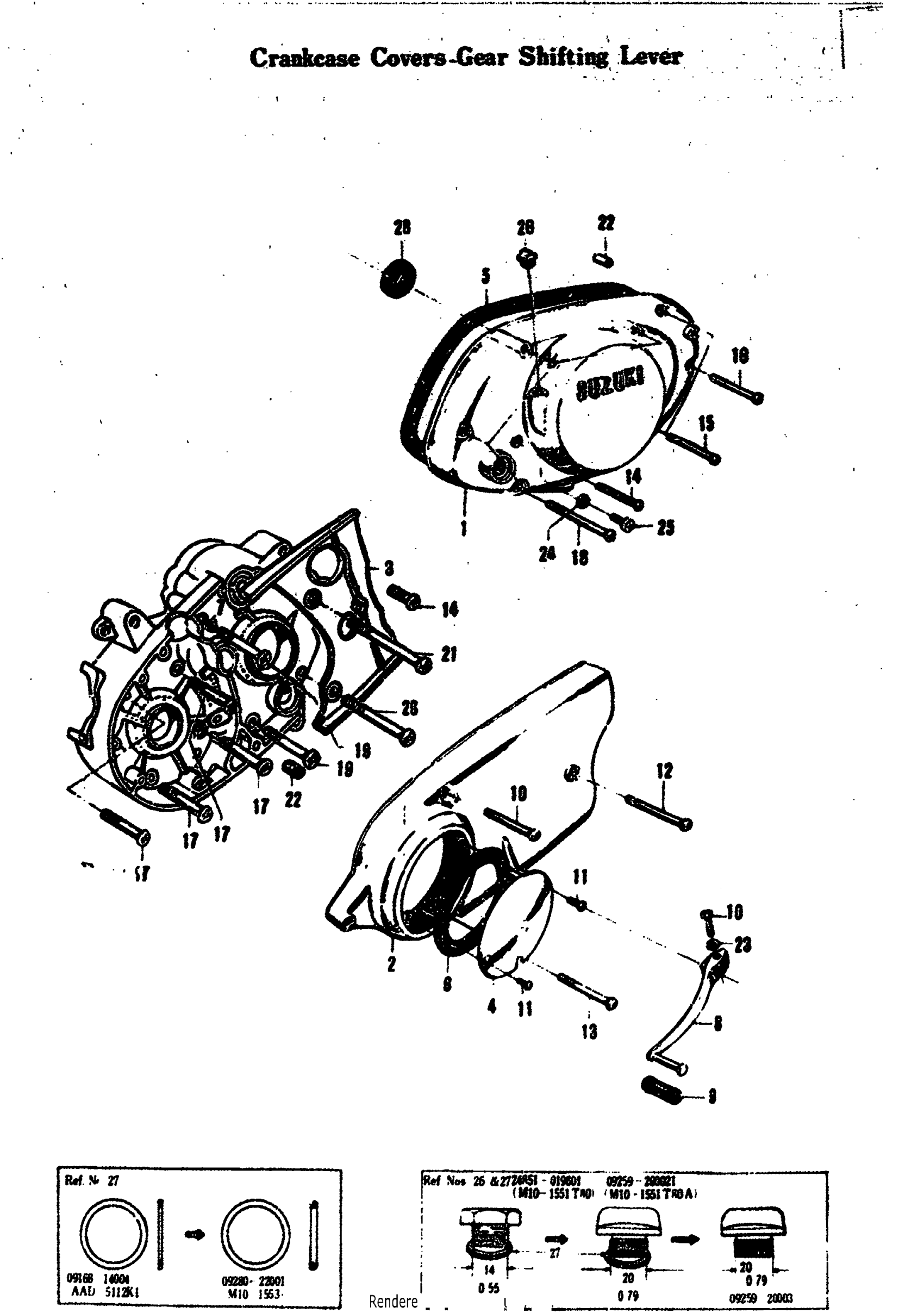

Suzuki M31 (1968) CRANKCASE COVERS-GEAR SHIFTING LEVER Diagram

CRANKCASE RIGHT COVER

11341-02603

Unavailable

CRANKCASE LEFT COVER

11351-02601

Unavailable

ENGINE SPROCKET BACK COVER

11371-02001

Unavailable

DYNAME INSPECTION CAP | O.M30-124636

11381-01000

Unavailable

CRANKCASE RIGHT COVER GASKET

11482-02000

Unavailable

DYNAMO INSPECTION CAP GASKET | (3.92) I.D. =69(2.36) T.=1.FTER E.NO. M30-124636

11491-01000

Unavailable

BRCATHER HOLE COVER

24828-02000

Unavailable

GEAR SHIFTING LEVER ASS'Y | ATED ISELANDS REF NO.9

25600-01602

Unavailable

.RUBBER,GEAR SHIFT PEDAL This part replaces 25652-03201.

25652-16510

$3.74

BOLT This part replaces 01112-06208.

01500-06207

$2.28

CROSS HEAD SCREW

02111-05088

Unavailable

CROSS HEAD SCREW | O.M30-124636

02111-05081

Unavailable

CROSS HEAD SCREW

02111-06408

Unavailable

CROSS HEAD SCREW

02111-06508

Unavailable

SCREW This part replaces 02112-06208.

02112-06207

$1.78

SCREW This part replaces 02112-06308.

02112-06307

$1.97

SCREW This part replaces 02112-06358.

02112-06357

$1.78

SCREW (6X40) This part replaces 02112-06408.

02112-06407

$1.78

6X50 CROSS SCRE This part replaces 02112-06508.

02112-06507

$1.99

SCREW This part replaces 02112-06608.

02112-06607

$2.57

SCREW This part replaces 02112-06658.

02112-06657

$2.62

6 X 75 CROSS SC This part replaces 02122-06758.

02122-0675A

$3.02

DOWEL PIN

04211-09129

$1.65

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

OIL LEVEL SCREW CASKET | .43)I.D=6.2(0.24),T=1.0(0.04)

09168-06001

$1.49

OIL LEVEL SCREW

09247-06001

Unavailable

PLUG SET This part replaces 09259-20003.

09200-20811

$4.02

OIL PLUG

24851-01980

Unavailable

.O-RING (D:2.4,ID:21.8) | (0.86) W=2.4(0.09)

09280-22001

$1.65

OIL PLUG GASKET | (0.81)(0.57),T=1.0(0.04)

09168-14004

$1.83

COUNTER SHAFT OIL SEAL | .10)

09284-12003

Unavailable
