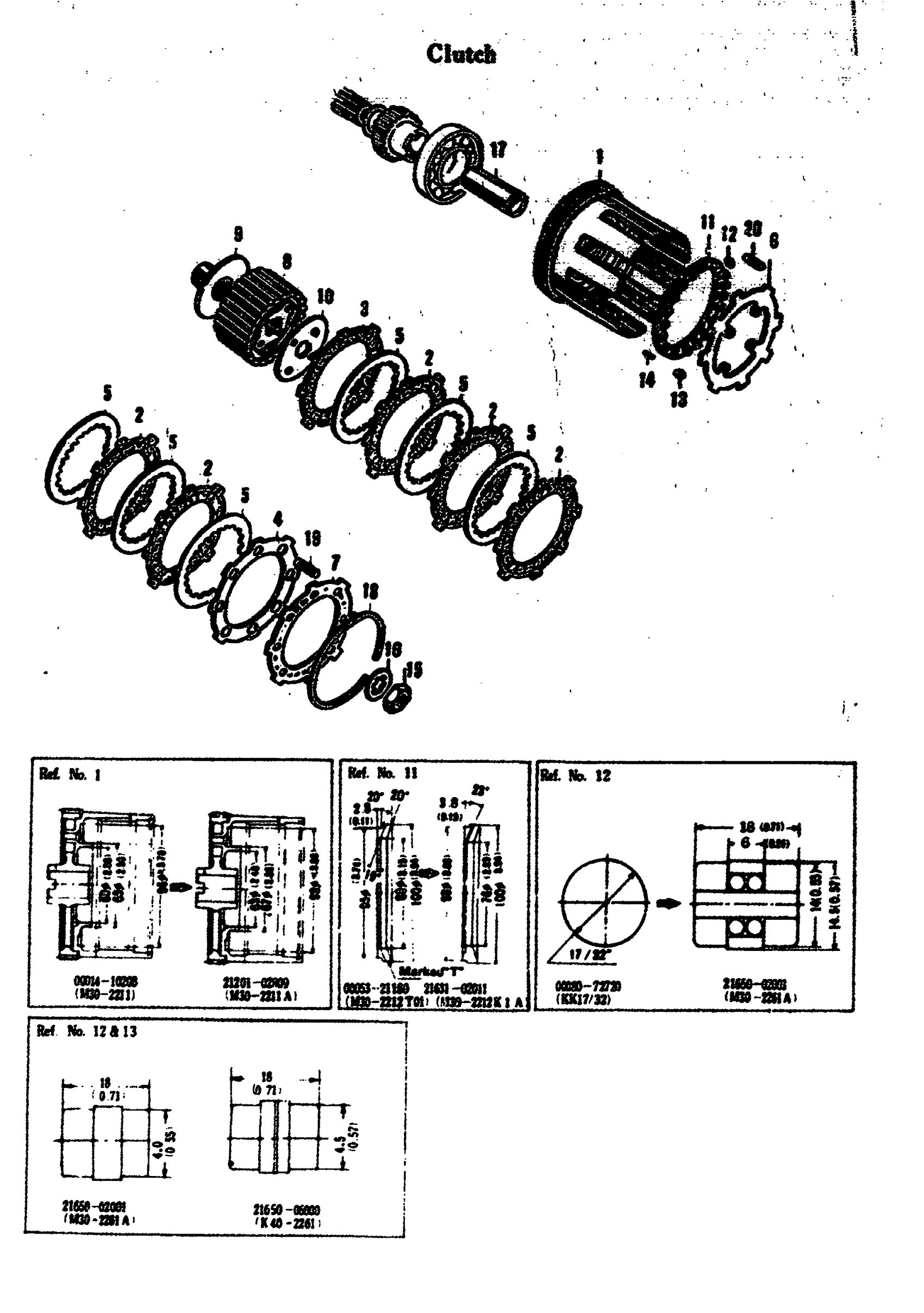

Suzuki M31 (1968) CLUTCH Diagram

#

Description
Price

1

CLUTCH HOUSING COMP.

21201-02809

Unavailable

1

CLUTCH HOUSING COMP. | P TO E.NO.1439-149605

00014-10208

Unavailable

3

CLUTCH INNER CORK PLATE | 15) FROM E.NO. M39-149695

21442-02001

Unavailable

2

CLUTCH CORK PLATE | .99) T.=3.0(0.12)

21441-02002

Unavailable

4

CLUTCH OUTER CORK PLATE | .99) T.=3.0(0.12)

21443-02001

Unavailable

2

CLUTCH CORK PLATE | I.D.=76(2.99) T.=3.0(0.12)

21441-02702

Unavailable

5

CLUTCH STEEL PLATE | 0.06) T.=1.6(0.06)

21451-02000

Unavailable

5

CLUTCH STEEL PLATE | 3.94) T.=1.2(0.06)

21451-02701

Unavailable

6

CLUTCH INNER PLATE | 06)

21465-02000

Unavailable

7

CLUTCH OUTER PLATE | .99) T.=1.6(0.06)

21466-02000

Unavailable

8

CLUTCH SLEEVE HUB ASS'Y

21530-02012

Unavailable

9

CLUTCH SLEEVE HUB SPACER

21541-02013

Unavailable

10

CLUTCH SLEEVE HUB RETAINER | .52) I.D.=17(0.67) T.=2.3(

21542-02000

Unavailable

11

ROLLER GUIDE RING | 3.94) I.D.=76(2.99)

21631-02011

Unavailable

11

BOLL GUIDE RING | 3.15) UP TO E.NO. M30-1490

00053-21180

Unavailable

12

ROLLER COMP. | TO E.NO.M31 162561

21650-02001

Unavailable

12

STEEL BALL | O. M39-149605

00080-72720

Unavailable

13

CLUTCH PLATE PIECE

21650-06000

Unavailable

14

PIN | .M30-149606 This part replaces 06211-04103.

04221-04109

Unavailable

15

NUT This part replaces 09140-16001.

09140-16005

$3.75

16

CLUTCH SLEEVE HUB WASHER | .30) I.D.=14(0.55) T.=0.8(

09167-17002

$1.91

17

CLUTCH HOUSING SPOCER | .83) I.D. =17(0.67) W.=52(

09180-17011

Unavailable

18

CLUTCH OUTER PLATE CIRELIP

09381-00001

Unavailable

19

CLUTCH SPRING | 39 I.D.=8.0(0.3) L=18.8(0.

09440-10002

Unavailable

20

CLUTCH INNER PLATE RETURN SPR | 0.74) I.D.=5.4(0.21)

09443-07002

Unavailable
