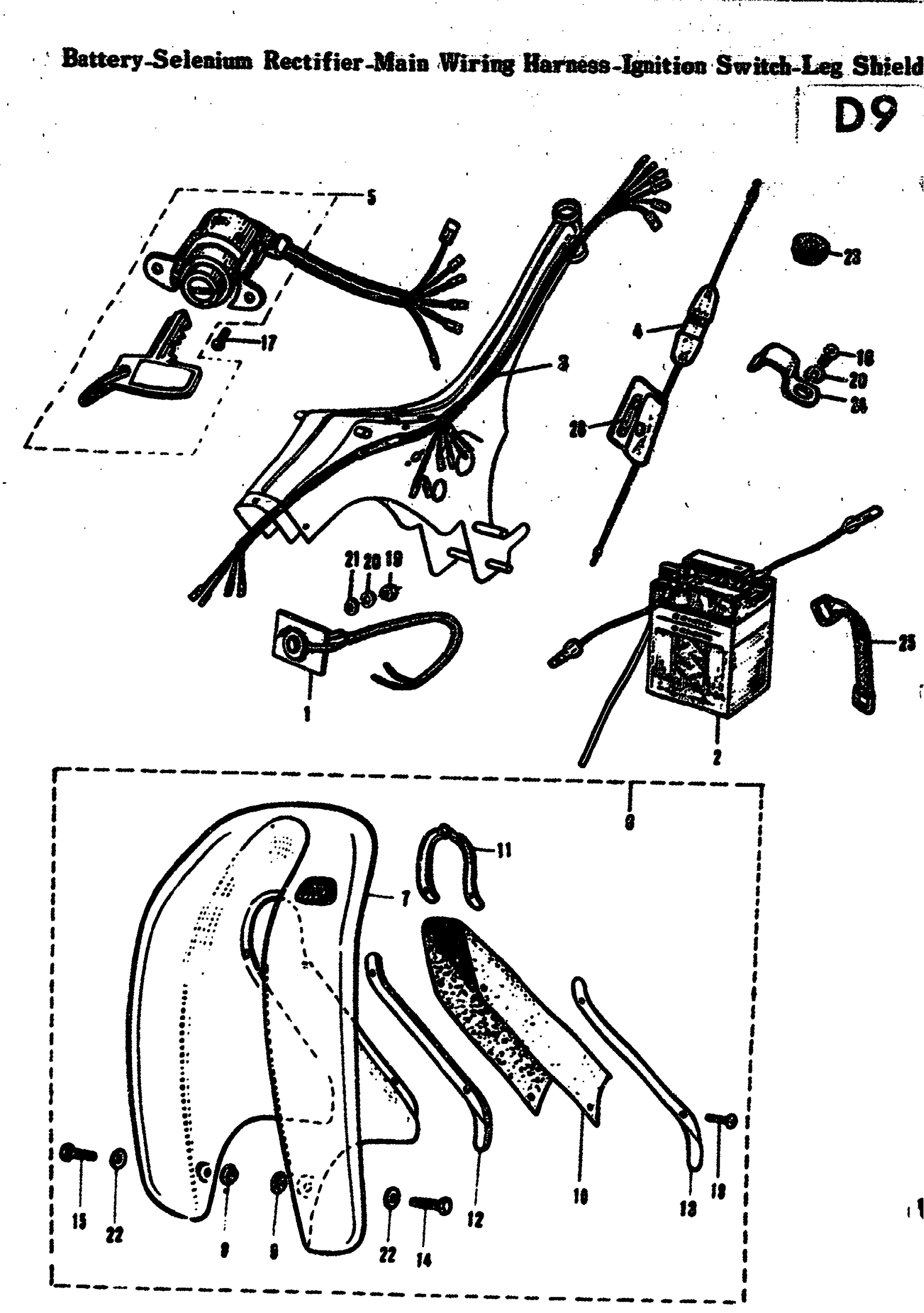

Suzuki M31 (1968) BATTERY-SELENIUM RECTIFIER-MAIN WIRING HARNESS-IGNITION SWITCH-LEG SHIELD Diagram

#

Description
Price

1

DIODE This part replaces 32800-01020.

32800-16A00

$23.07

2

BATTERY ASS'Y

33610-06010

Unavailable

3

MAIN WIRING HARNESS

36610-02611

Unavailable

4

FUSE CASE ASS'Y

36740-01010

Unavailable

5

IGNITION SWITCH ASS'Y

37110-02013

Unavailable

6

LEG SHIELD ASS'Y

48100-02621-064

Unavailable

7

>LEG SHIELD

48110-02001-064

Unavailable

8

LEG SHIELD RIGNT LOWER SPACER | 0.56)

48191-06000

Unavailable

9

LEG SHIELD LOWER SPACER | .30)

48211-02000

Unavailable

10

FRAME PROTECTOR

48231-02000

Unavailable

11

FREME PROTECTOR UPPER BAND

48241-02000

Unavailable

12

FRAME PROTECTOR RIGHT MOLDING

48250-02000

Unavailable

13

FRAME PROTECTOR LEFT MOLDING

48260-02000

Unavailable

14

BOLT This part replaces 01211-06207.

01204-06207

Unavailable

15

BOLT 6X25 This part replaces 01211-06257.

01204-06257

$2.07

16

CROWN HEAD SEREW

02111-05088

Unavailable

16

CROWN HEAD SEREW

02111-05081

Unavailable

17

.SCREW This part replaces 02131-04127.

02122-0412A

$1.93

17

CROWN HEAD SEREW

02131-04122

Unavailable

18

SCREW This part replaces 02141-05127.

02142-05127

$1.97

18

CROWN HEAD SEREW

02141-05122

Unavailable

19

NUT This part replaces 08313-11057.

08313-1005A

$1.93

19

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

20

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

21

WASHER This part replaces 08322-21058.

08322-01057

$2.13

22

WASHER, FRONT This part replaces 09160-06005.

09160-06134

$1.91

23

MAIN WRIING HARNESS BUSHING

09308-06002

Unavailable

24

MAIN WIRING HARNESS CLIP

09403-00021

Unavailable

25

BETTERY FITTING BAND

09462-00012

Unavailable
