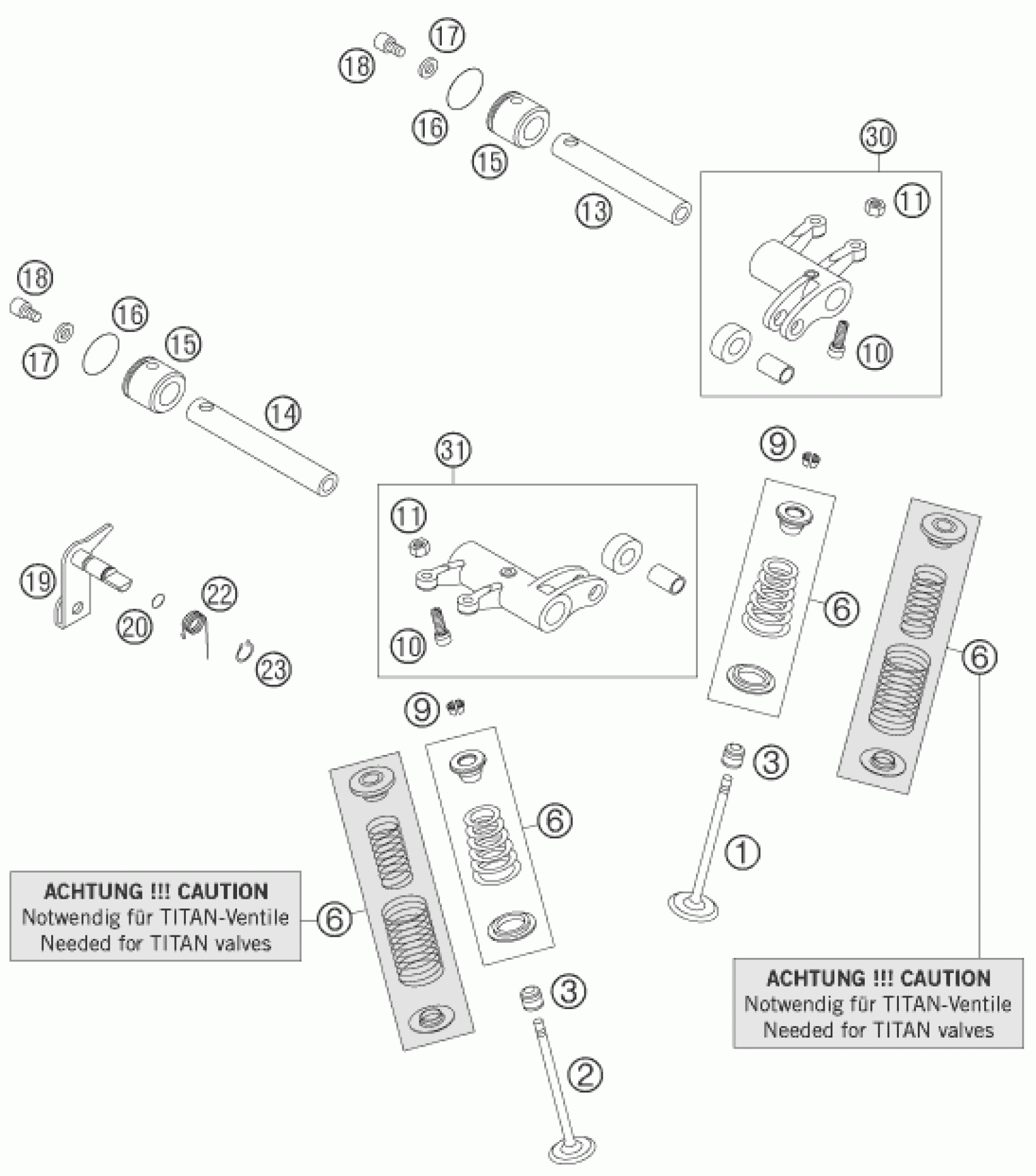

KTM 540 SXS RACING 2004 VALVE DRIVE Diagram

#

Description
Price

1

INTAKE VALVE D=35MM

59036030000

$51.60

2

EXHAUST VALVE D=30MM

59036031000

$75.91

3

VALVE-STEM SEALING RACING

59036027000

$5.98

6

VALVE SPRING CONICAL CPL. 03

59436028044

$23.76

9

VALVE COLLET KK 6 H

59036033000

$2.05

10

ADJUSTMENT SCREW M6X0,75

59036062000

$19.07

11

NUT M6X0,75

59036062100

$12.15

13

ROCKER ARM SHAFT INTAKE

59036056000

$20.47

14

ROCKER ARM SHAFT EXHAUST

59036057000

$21.59

15

END CAP ROCKER ARM SHAFT

59036061095

$20.37

16

O-RING 19,10X1,60 NBR 70

0770191016

$1.49

17

SHIM ALU 5,2X10X2

59036060010

$1.49

18

SHCS DIN 912 M5x8

0912050083

$1.49

19

DECOMPRESSION SHAFT CPL.

59036050000

$32.59

20

O-RING 5,10X1,60 NBR 70

0770051016

$1.49

22

DECOMPRESSION LEVER SPRING

59036059000

$3.08

23

CIRCLIP DIN0471- 8X0,8

0471080000

$1.49

30

ROCKER ARM INTAKE CPL.

59036060144

$148.23

31

ROCKER ARM EXHAUST CPL.

59036061144

$169.26
