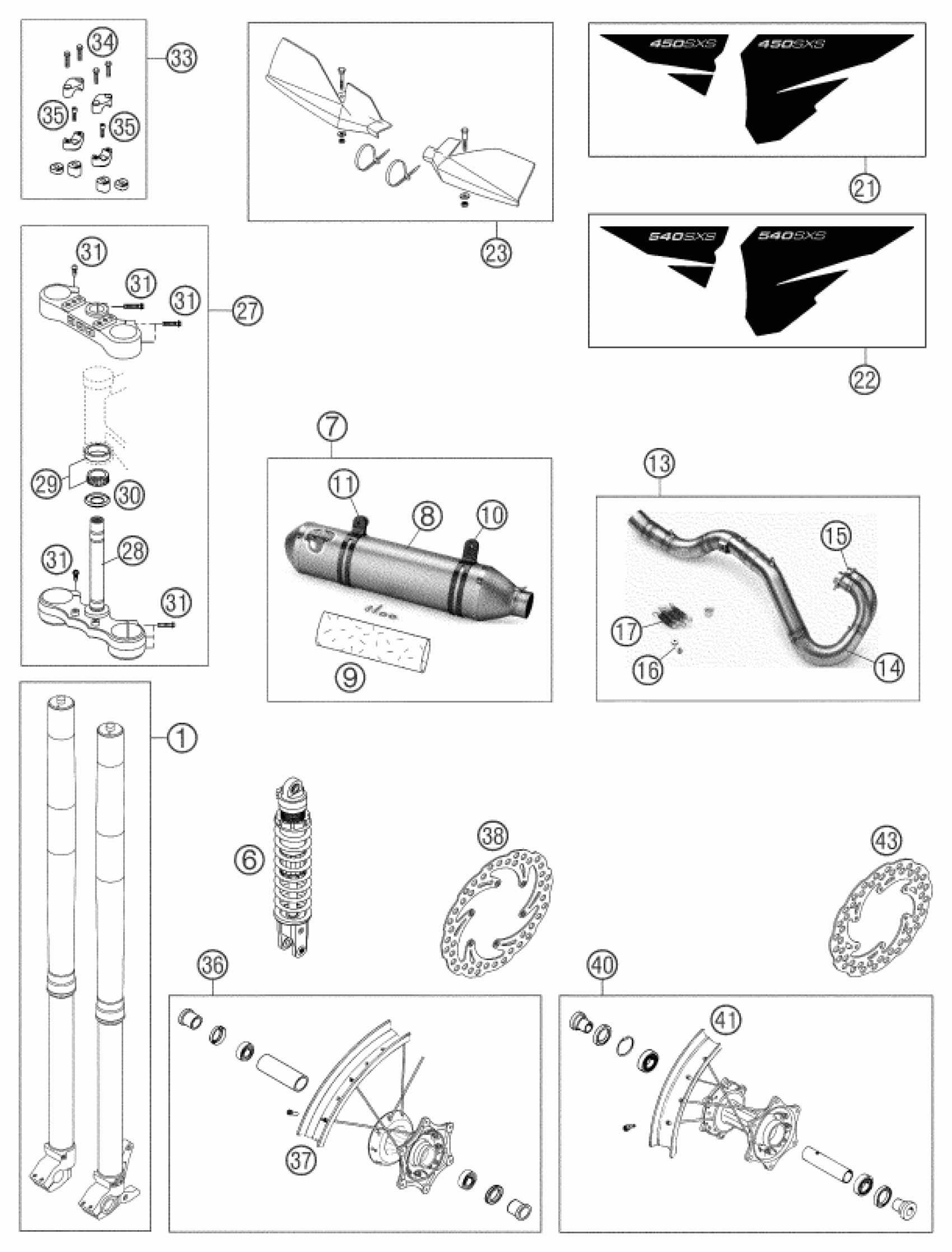

KTM 540 SXS RACING 2003 NEW PARTS Diagram

#

Description
Price

1

FRONT FORK 4860 MXMA D=48MM

1418X742

$1,598.60

6

* MONOSHOCK 5018 PDS SXS RAC.

1218X766

Unavailable

7

% SILENCER TITAN SXS 20

SXS02540502

Unavailable

8

REPAIR KIT

SXS02540507

Unavailable

9

STFFING YARN-KIT L=560MM 02

SXS02540505

Unavailable

10

CLAMP FRONT

SXS02540503

$43.98

11

% CLAMP F.SILENC. CARBON REAR

SXS02540504

Unavailable

13

EXHAUST PIPES TITAN SXS 03

SXS03450500

Unavailable

13

* EXHAUST PIPES TITAN SXS 03

SXS03540500

Unavailable

14

FRT PART EXHAU.PIPE TITAN 03

SXS03450503

Unavailable

15

EXHAUST FLANGE 03

SXS02540506

$28.21

16

SUPPORT EXHAUST PIPE 02

SXS02540508

$13.65

17

EXHAUST-SPRING WITH RUBBER 02

57305016000

$8.49

14

FRT PART EXHAU.PIPE TITAN 03

SXS03540503

Unavailable

21

DISPLACEM. STICKER 450 SXS 03

59408091300

Unavailable

22

DISPLACEM. STICKER 540 SXS 03

59008191300

Unavailable

23

HAND GRD CPL. L/S+R/S ORA.03

5480207900004

Unavailable

23

HAND GUARD L/S+R/S BLA.03

5480207900030

Unavailable

27

* TRIP.CLAMP KIT MLD CPL.20MM

59501099020

Unavailable

28

FORK TUBE L=244 '91

50101033100

$85.17

29

TAPERED ROLLER BEARING CPL.

54201081000

$51.04

30

O-RING SUPPORT W. SEALING LIP

54601084100

$19.35

31

HH COLLAR SCREW M 8X30 WS=10

0015080303

$3.08

33

% HANDLEBAR SUPPORT CPL.D=28MM

59501039044

Unavailable

34

HH COLLAR SCREW M 8X25 WS=10

0015080253

$2.05

35

AH SCREW DIN6912-M10X25,10.9

0912100250

Unavailable

35

AH SCREW DIN6912-M10X35 10.9

0912100356

Unavailable

35

AH SCREW DIN6912-M10X45 10.9

0912100456

Unavailable

36

* FRONT WHEEL 1,6X21"DID SCHW.

5480900104430

Unavailable

37

FRONT RIM U-SHAPE 1,6X21"DID

5900907000030

Unavailable

38

BRAKE DISC FRONT D=260MM 03

54809060100

$223.83

40

* REAR WHEEL CPL.2,15X19" BLA.

5481000114430

Unavailable

41

* RIM REAR U-SHAPE 2,15X19"DID

5901007010030

Unavailable

43

BRAKE DISC REAR D=220MM 03

54810060000

$141.27
