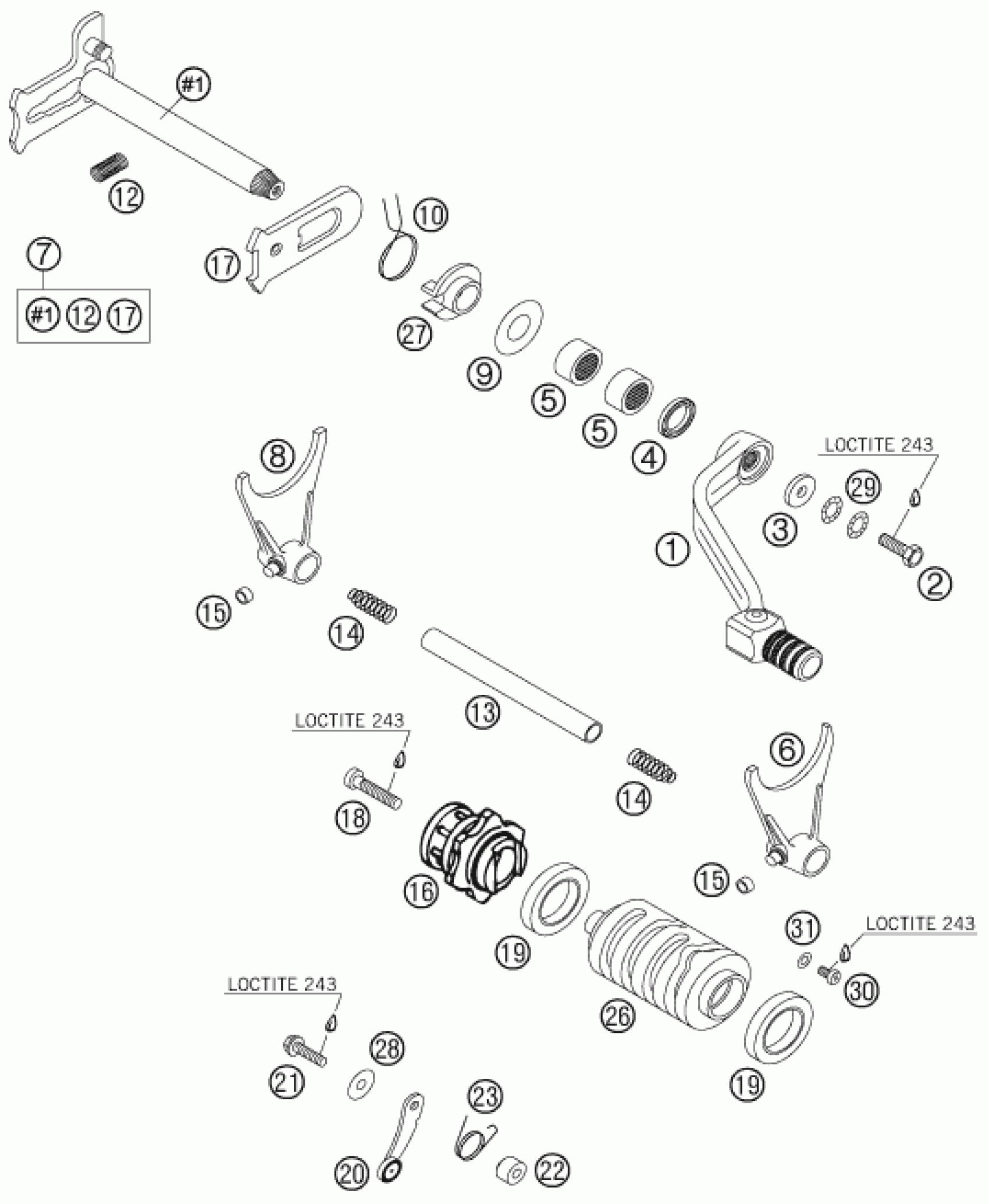

KTM 540 SXS 2006 SHIFTING MECHANISM Diagram

#

Description
Price

22

SLEEVE FOR LOCKING LEVER

54634052300

$3.08

23

detent arm spring 2.3mm

59034023000

$2.05

24

SHIFT RAIL 11,8X89MM

59034019000

$12.80

29

Pair of washers M6 NORDLOCK

50233041000

$4.11

21

HH COLLAR SCREW M 5X20 WS=8

0015050203

$2.05

26

SHIFTROLLER 4-GEAR

59434012000

$46.55

27

SPRING GUIDE

54634020000

$6.44

28

WASHER DIN7349-5X15X2

0349000050

$1.49

12

TENSIONING SPRING 0,8MM

56534013100

$1.49

20

LOCKING LEVER CPL '96

54634024144

$16.07

1

SHIFT LEVER CPL.RACING 2000

59034031000

$87.69

10

RETURN SPRING 2,2MM '95

54634014100

$6.63

13

SHIFT RAIL 11,8X105MM

59034020000

$13.36

14

PRESSURE SPRING 0,9MM

58038023200

$4.11

15

SHIFTING ROLLER 6X8X5,2

50334018100

$4.11

16

SHIFT LOC'ING DRUM ALU CPL.00

59034015044

$64.04

17

SLIDING PLATE CPL.

54634008044

$10.46

18

AH SCREW DIN6912 M 6X30

0984060302

$1.49

19

BALL BEARING 61805 C3

0625618050

$43.94

2

HH SCREW DIN0933-M 6X16 10.9

0933060165

$2.05

3

STEEL WASHER 6,4X17X3

50232050001

$5.23

4

radial shaft seal 14x24x6 B

0760142460

$9.25

5

needle sleeve HK 1412 14x20x12

54632095000

$7.00

30

FLAT HEAD SCREW DIN7985-M 5X 8

0985050083

$1.49

31

WASHER DIN0125-A 5,3

0125050003

$1.49

6

SHIFT FORK 2./4.GEAR 2000

59034002000

$40.48

7

SHIFT SHAFT CPL. RACING '03

59034005044

$57.16

8

SHIFT FORK 1./3.GEAR 2000

59034003000

$71.33

9

STOP DISK 14X30X1

54634050000

$2.05

25

SHIFT FORK 5./6.GEAR 2000

59034001000

$41.51
