FRONT FORK, TRIPLE CLAMP

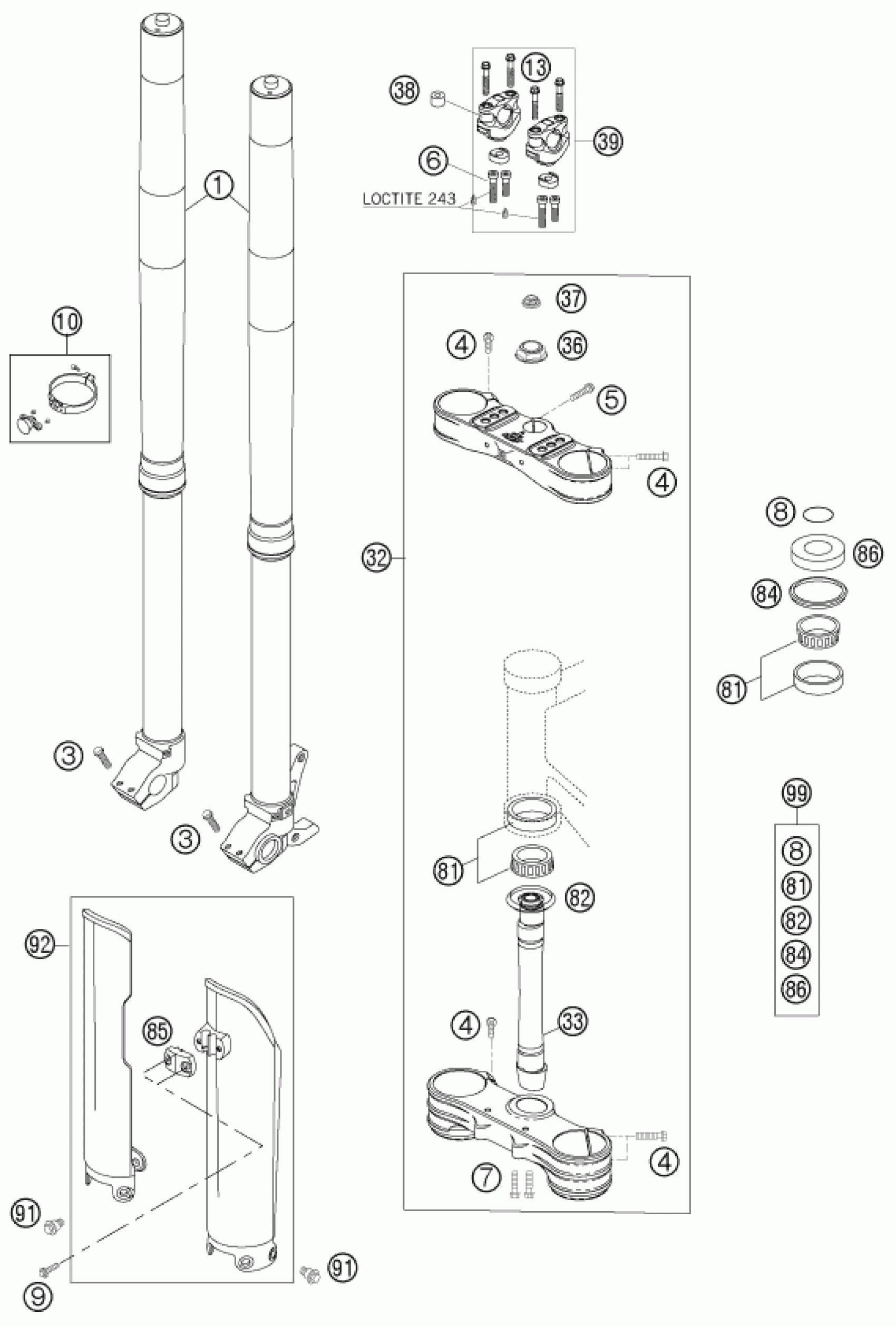

KTM 540 SXS 2006 FRONT FORK, TRIPLE CLAMP Diagram
#
Description
Price
3
HH COLLAR SCREW M 8X25 WS=10
0015080253
$2.05
4
HH COLLAR SCREW M 8X30 WS=10
0015080303
$3.08
5
HH COLLAR SCREW M 8X25 WS=10
0015080253
Unavailable
6
AH SCREW DIN6912-M10X35 10.9
0912100356
$4.11
6
AH SCREW DIN6912-M10X25,10.9
0912100250
Unavailable
7
HH COLLAR SCREW M 8X20 WS=10
0015080203
$2.05
8
O-RING 25X3,55 NBR70 05
0770025035
$1.49
9
EJOT PT SCREW K60X20 ALU WS=6
0017060204
$3.08
10
FACTORY START 05
SXS05540100
$74.69
13
HH COLLAR SCREW M 8X45 WS=10
0015080453
$2.05
32
TRIPLE CLAMP SHAPE 17,5/20,5
SXS06450400
Unavailable
33
FORK TUBE 06
SXS06450403
Unavailable
36
NUT M20 06
SXS06450404
Unavailable
37
SAFETY SCREW M20 2006
SXS06450405
Unavailable
38
ELASTOMER GREEN/SOFT
SXS05125203
$32.29
38
ELASTOMER YELLOW/MEDIUM
SXS05125204
Unavailable
38
ELASTOMER RED/HARD
SXS05125205
Unavailable
39
PHDS PROGRESSIVE H-BAR DAMPING
SXS07125200
Unavailable
81
TAPERED ROLLER BEARING CPL. 06
54201081100
$51.04
82
O-RING SUPPORT W. SEALING LIP
54601084100
$19.35
84
STEARING HEAD GASKET TOP
54601184000
$7.10
85
CLAMP F.SPEED.CABLE ORANGE 06
5900108510004
$1.49
86
STEERING HEAD COVER
54201086000
$8.50
91
SPECIAL SCREW M6X12,5 WS=8
59001092050
$2.05
92
FORK PROT. L/S +R/S ORG 02
5900109400004
$33.99
1
SXS FORK 450/540
14187B16
Unavailable
99
STEARING HEAD REP. KIT 06-15
00050000930
Unavailable
