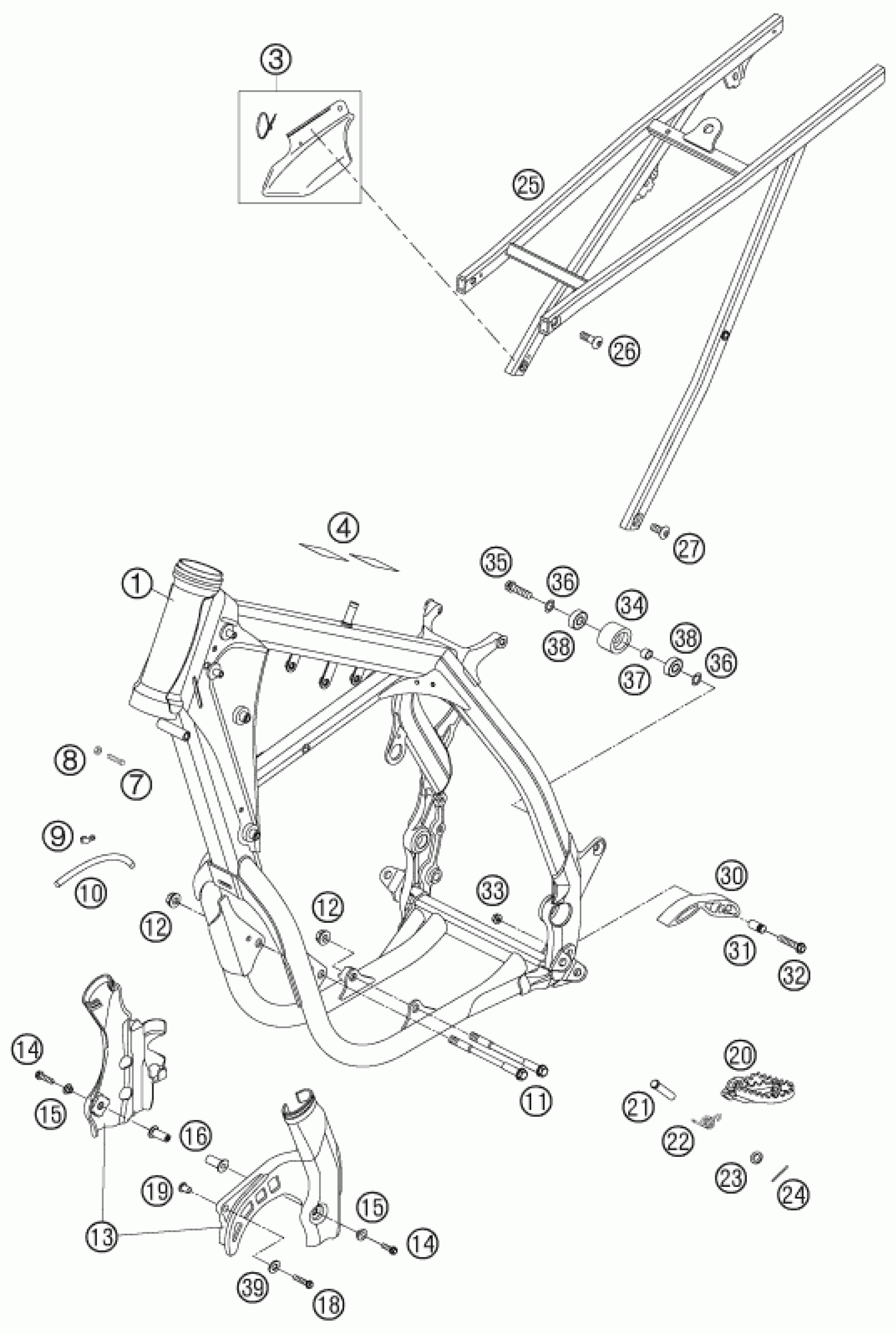

KTM 540 SXS 2006 FRAME Diagram

#

Description
Price

1

FRAME 450/540 SXS ''DF05''

SXS05450550

Unavailable

4

ADH. FOIL TRANSP. 80X80 MM 04

50307012000

$2.05

7

SPECIAL SCREW M8X26 WS=10

59001037000

$3.08

8

Hexagon nut DIN934 M8

0934080003

$2.05

9

ANGLE PIECE '97

50303089000

$5.23

10

PVC-HOSE 7X10 PER METER

55007016001

$6.07

11

Enginebrac. screw M10X123 WS=1

59003013000

$9.44

12

SELF LOCKING NUT M10 CU WS=14

54310086100

$2.05

13

FRAME PROTECTION SET 05

54803094100

$20.94

14

HH COLLAR SCREW M 5X25 WS=6

0014050253

$3.08

15

Bush f. frame protection 03

54803092060

$4.11

16

BLIND PLUG-IN NUT M5 WN 22A 03

54803092050

$5.23

18

HH COLLAR SCREW M 6X35 WS=8

0015060353

$3.08

19

BUSHING F. SPROCKET COVER RAC.

59030060050

$10.46

20

FOOT PEG L/S SILVER 02

59003040250

$43.66

20

FOOT PEG R/S SILVER 02

59003041250

$43.66

21

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

$12.43

22

FOOTREST SPRING L/S & R/S

54603041000

$5.23

23

washer DIN 125 A 10.5

0125100003

$2.05

24

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

25

SUB FRAME CPL. SX RAC. ''G5''

59403002244

$274.11

26

SPROCKET SCREW-AH M8X26 WS=6

54510052100

$3.08

27

SPROCKET SCREW-AH M8X20 WS=6

54610052000

$2.05

30

CHAIN SLIDING PIECE BELOW '97

51103053000

$9.15

31

BUSHING 8,2X10X20

51103053051

$4.11

32

HH COLLAR SCREW M 8X35 WS=10

0015080353

$4.11

33

Self locking nut M8 10.9

54310086200

$3.08

34

CHAIN ROLL D=30MM

50203053000

$6.72

35

HH COLLAR SCREW M 8X30 WS=10

0015080303

$3.08

36

LOCK WASHER 8MM

36003014000

$2.05

37

BUSHING 8.2 X 12 X 6

74003021000

$3.08

38

Grooved ball bearing 608 2RS C

0625006087

$21.40

39

WASHER DIN0125-A 6,4

0125060003

$1.49

3

HEAT PROTECTOR CARBON

SXS05450515

Unavailable
