Description

Price

1

CARBURETOR FCR-MX 4125F 06

59031001600

Unavailable

5

CARBURETOR COVER WITH GASKET

57331027044

$39.26

12

THROTTLE SHAFT CPL. 06

57331046200

$75.09

14

COIL SPRING THROTTLE SHAFT

57331046050

$9.15

16

LINK ARM THROTTLE VALVE CPL.

57331035051

$84.89

19

THROTTLE VALVE CPL.

57331035000

$345.01

20

BUSHING THROTTLE VALVE

59031035050

$10.65

21

GASKET PLATE THROTTLE VALVE 04

57331035153

$191.85

22

GASKET WASHER THROTTLE VALVE

59031035052

$17.94

23

JET NEEDLE KEIHIN OBDTN

59031034000

Unavailable

23

JET NEEDLE KEIHIN OBDTP

59031034400

$31.03

23

JET NEEDLE KEIHIN OBDTQ

59031034500

Unavailable

24

BAR CLIP

59031029000

$5.23

25

NEEDLE SET SCREW CPL.

57331032000

$40.10

26

NEEDLE JET FCR-MX

59031121000

$32.72

27

MAIN JET 185 KEIHIN

54531623185

Unavailable

27

MAIN JET 188 KEIHIN

54531623188

Unavailable

27

MAIN JET 190 KEIHIN

54531623190

$12.61

27

MAIN JET 192 KEIHIN

54531623192

Unavailable

27

MAIN JET 195 KEIHIN

54531623195

Unavailable

28

IDLE JET 38 KEIHIN

54531607038

Unavailable

28

IDLE JET 40 KEIHIN

54531607040

Unavailable

28

IDLE JET 42 KEIHIN

54531607042

$12.71

28

IDLE JET 45 KEIHIN

54531607045

Unavailable

29

STARTER JET 85

59031051085

$16.73

30

IDLE AIR JET 100 KEIHIN

57331107100

$14.76

32

ADJUST SCREW CPL. FCR-MX

59031017100

$19.63

35

BUFFER PLATE

57331085000

$12.33

39

FLOAT CPL.

57331009000

$59.64

40

ARM PIN FLOAT

57331008000

$2.05

41

HOT-STARTER VALVE

77031075000

$34.84

44

HOT-STARTER VALVE CPL. 06

57331075100

$97.89

42

FLOAT NEEDLE

54631220000

$31.41

43

CLAMP

54531621000

$4.11

46

DRAIN SCREW FLOAT CHAMBER

57331155000

$5.98

47

COVER ACCELERATOR PUMP

57331060000

$27.01

49

FLOAT CHAMBER CPL. SET

57331011000

$178.48

53

COIL SPRING

59031059000

$7.38

55

STARTER VALVE CPL.

57331048000

$86.85

56

BREATH.HOSE FCR-MX KEIHIN CPL.

57331098000

$107.52

60

FLAT HEAD SCREW DIN0965-M 5X10

0965050103

$2.05

61

PLUG M 18X1

54531699000

$20.09

64

INTERMEDIATE LEVER CPL.

57331062000

$33.28

65

LINK LEVER

57331056000

$8.13

66

SPRING LINK LEVER

57331059000

$9.49

67

SPRING INTERMEDIATE LEVER

57331159000

$10.84

68

CARBURETOR COVER 06

57331038200

$8.13

69

WASHER LINK LEVER

57331087000

$2.05

70

E-CLIP

57331084000

$2.05

72

ROD ACCELERATOR PUMP

57331061000

$26.73

83

HOSE CONNECTOR CPL.

59031013044

$65.35

90

STOP SCREW CPL. FCR-MX

57331025000

$56.65

99

GASKET SET FCR-MX KEIHIN

57331099000

$119.67

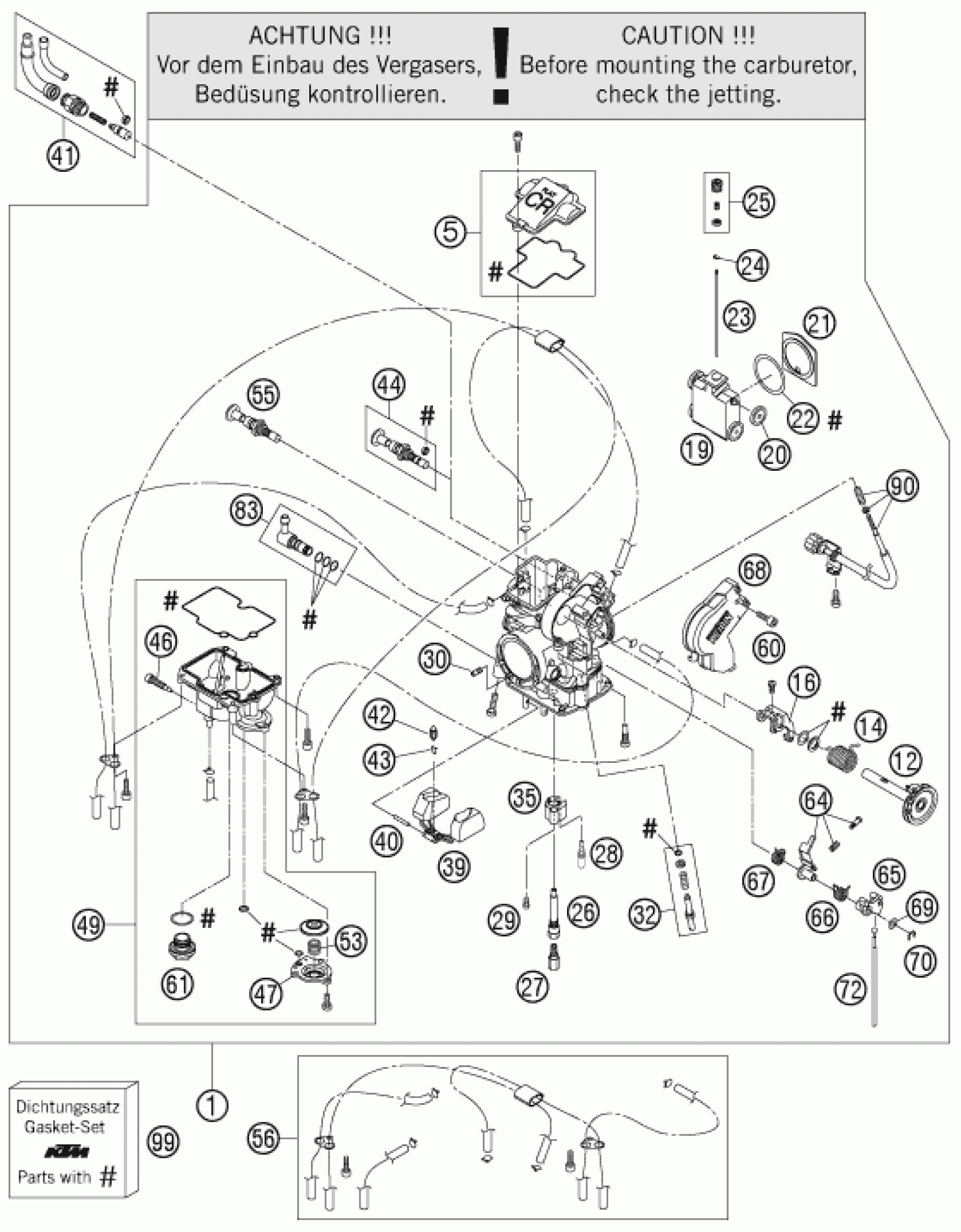

KTM 540 SXS 2006 CARBURETOR Diagram

CARBURETOR FCR-MX 4125F 06

CARBURETOR COVER WITH GASKET

THROTTLE SHAFT CPL. 06

COIL SPRING THROTTLE SHAFT

LINK ARM THROTTLE VALVE CPL.

THROTTLE VALVE CPL.

BUSHING THROTTLE VALVE

GASKET PLATE THROTTLE VALVE 04

GASKET WASHER THROTTLE VALVE

JET NEEDLE KEIHIN OBDTN

JET NEEDLE KEIHIN OBDTP

JET NEEDLE KEIHIN OBDTQ

BAR CLIP

NEEDLE SET SCREW CPL.

NEEDLE JET FCR-MX

MAIN JET 185 KEIHIN

MAIN JET 188 KEIHIN

MAIN JET 190 KEIHIN

MAIN JET 192 KEIHIN

MAIN JET 195 KEIHIN

IDLE JET 38 KEIHIN

IDLE JET 40 KEIHIN

IDLE JET 42 KEIHIN

IDLE JET 45 KEIHIN

STARTER JET 85

IDLE AIR JET 100 KEIHIN

ADJUST SCREW CPL. FCR-MX

BUFFER PLATE

FLOAT CPL.

ARM PIN FLOAT

HOT-STARTER VALVE

HOT-STARTER VALVE CPL. 06

FLOAT NEEDLE

CLAMP

DRAIN SCREW FLOAT CHAMBER

COVER ACCELERATOR PUMP

FLOAT CHAMBER CPL. SET

COIL SPRING

STARTER VALVE CPL.

BREATH.HOSE FCR-MX KEIHIN CPL.

FLAT HEAD SCREW DIN0965-M 5X10

PLUG M 18X1

INTERMEDIATE LEVER CPL.

LINK LEVER

SPRING LINK LEVER

SPRING INTERMEDIATE LEVER

CARBURETOR COVER 06

WASHER LINK LEVER

E-CLIP

ROD ACCELERATOR PUMP

HOSE CONNECTOR CPL.

STOP SCREW CPL. FCR-MX

GASKET SET FCR-MX KEIHIN
