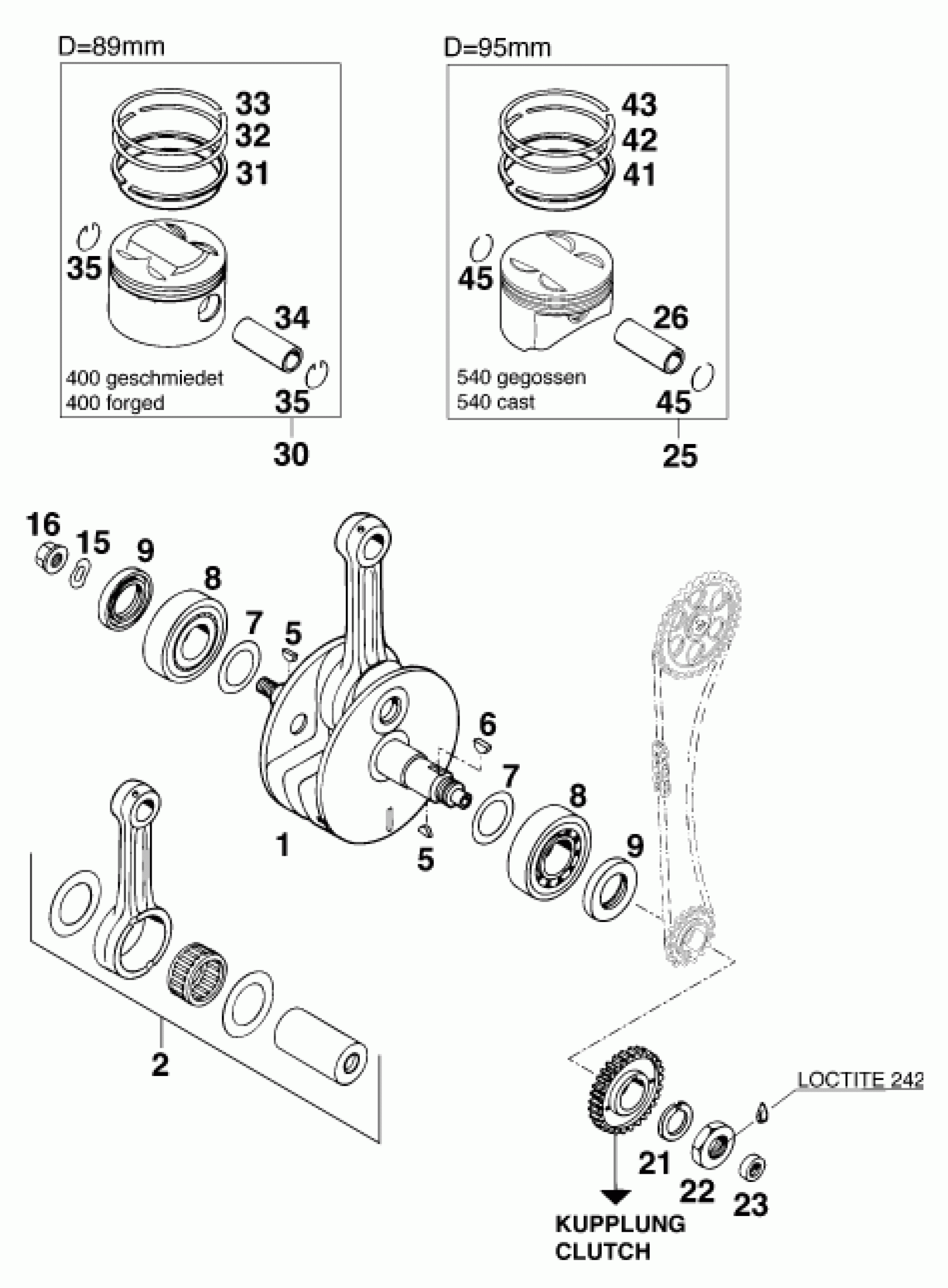

KTM 540 SXC <1998 CRANKSHAFT, PISTON Diagram

#

Description
Price

1

CRANKSHAFT CPL. 400 LC4 '97

57630018000

$528.37

1

CRANKSHAFT CPL. 540/620 LC4'

58330018000

Unavailable

2

CONNECTING ROD REPAIR SET LC4

58030015044

$415.87

2

CONNECTING ROD REPAIR SET LC

58330015044

$345.34

5

WOODRUFF KEY DIN6888-3X5X13

0888030050

$2.05

6

WOODRUFF KEY 5X6,5 HARDED

6946005

$2.05

7

THRUST WASHER 30,5X45X0,10

56030081000

Unavailable

7

THRUST WASHER 30,7X47X0,15

56030081100

Unavailable

7

THRUST WASHER 30,5X45X0,30

56030081200

Unavailable

8

CYL.ROLLER BEARING NJ 306 C3

58030082000

$115.28

9

SHAFT SEAL RING 30X47X7 BSL

0760304771

Unavailable

15

SPRING WASHER DIN0137-B12

0137120000

$1.49

16

COLLAR NUT M12X1 LEFT WS=17

51030028100

$11.40

21

LOCKING RING VSK 20

58030019000

$1.73

22

HEXAGON NUT DIN0936-M20X1,5

0936200155

$6.52

23

SHAFT SEAL RING 12 X 22 X 7 B

0760122270

$15.79

25

PISTON I 95MM CPL. CAST '96

57630007100 I

Unavailable

25

PISTON II 95MM CPL. CAST '96

57630007100 II

Unavailable

26

PISTON BOLT 22 X 13 X 56,3

57630033100

Unavailable

30

PISTON I 89 MM CPL. FORGED

57530007000 I

Unavailable

30

PISTON II 89MM CPL. FORGED

57530007000 II

Unavailable

31

OIL SCRAPER RING 89MM

57530031000

$19.35

32

TAPERED COMPR.PISTON RING 89MM

57530132000

$14.60

33

RECTANGULAR RING 89MM

57530032000

$45.99

34

PISTON PIN 22 X 13 X 54,2

58030033000

$46.19

35

CIRCLIP A 22 X 1,5

58030074000

Unavailable

41

OIL SCRAPER RING 95MM

58030631000

$25.42

42

TAPERED COMPR.PISTON RING 95MM

58030732000

$19.00

43

RECTANGULAR RING 95MM

58030632000

$46.22

45

CIRCLIP C 22 X 1,5

58030074100

$1.78
