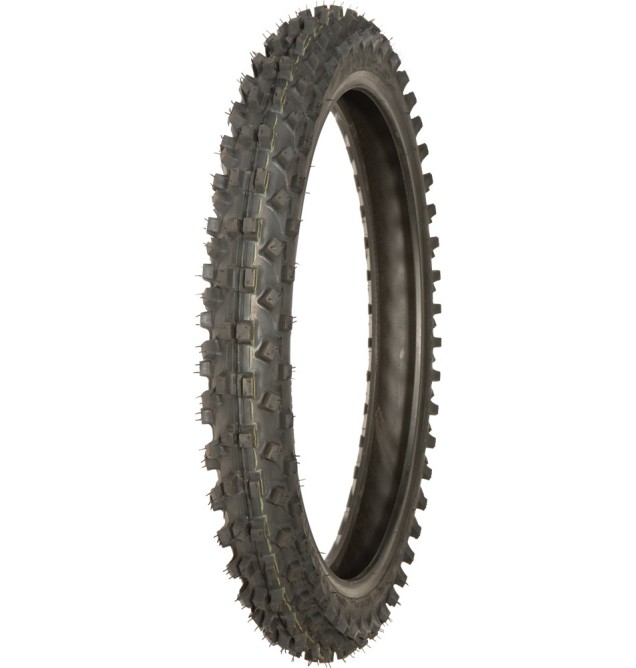

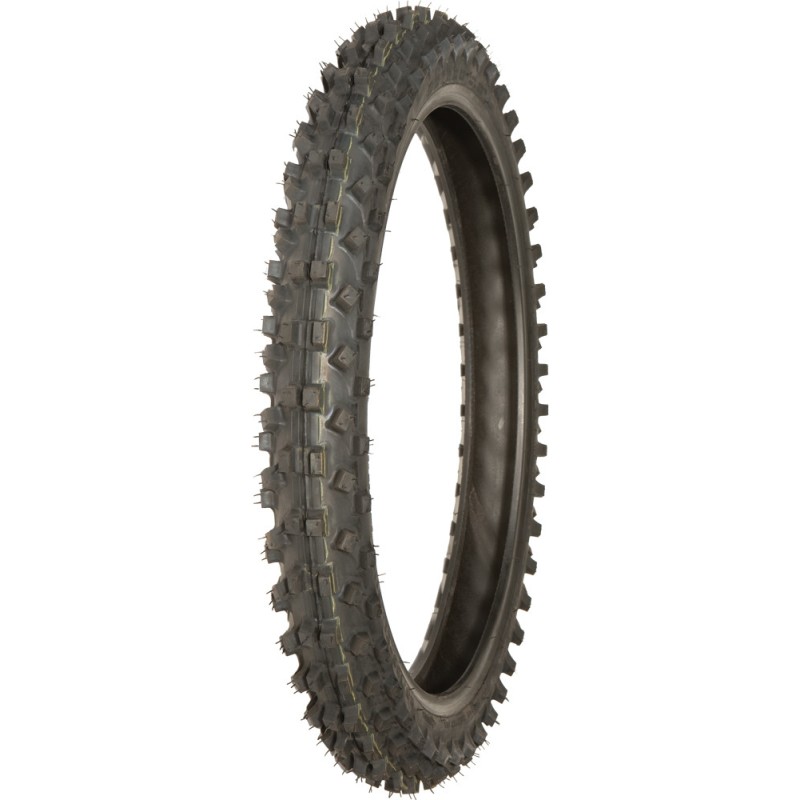

540 Series Tire
Tire size
Item: 87-4317
Weight: 14.5 lbs
Package Dimensions: 26.5 x 26.9 x 5
- Wide spaced knobs shed mud quickly
- Tall aggressive tread pattern for increased traction in the nastiest conditions
- NHS (Not for Highway Service)
Speed Rating: M
Construction: Bias
Load Index: 68
Tube Type: Tube
Position: Rear
Tire Ply Rating: 4 PR
Version: Sand
Inside Diameter: 18 in.
Tire Width: 120 mm
Aspect Ratio: 100
Purpose: Off-Road
Tire Brand: Shinko
Tire Line: 540 Series
Recommended Rim Size: 2.75 in.
Maximum Pressure: 33 psi
Tire Size: 120/100-18
Outside Diameter: 27.44 in.
Permitted Rim Size: 2.50~3.00
Model: R540 SERIES
Item: 87-4316
Weight: 13 lbs
Package Dimensions: 26.1 x 25.8 x 4.7
- Wide spaced knobs shed mud quickly
- Tall aggressive tread pattern for increased traction in the nastiest conditions
- NHS (Not for Highway Service)
Speed Rating: M
Construction: Bias
Load Index: 64
Tube Type: Tube
Position: Rear
Tire Ply Rating: 4 PR
Version: Sand
Inside Diameter: 18 in.
Tire Width: 110 mm
Aspect Ratio: 100
Purpose: Off-Road
Tire Brand: Shinko
Tire Line: 540 Series
Recommended Rim Size: 2.5 in.
Maximum Pressure: 33 psi
Tire Size: 110/100-18
Outside Diameter: 26.65 in.
Permitted Rim Size: 2.15~3.00
Model: R540 SERIES
Item: 87-4315
Weight: 11.75 lbs
Package Dimensions: 26.1 x 25.9 x 4.2
- Wide spaced knobs shed mud quickly
- Tall aggressive tread pattern for increased traction in the nastiest conditions
- NHS (Not for Highway Service)
Speed Rating: M
Construction: Bias
Load Index: 59
Tube Type: Tube
Position: Rear
Tire Ply Rating: 4 PR
Version: Sand
Inside Diameter: 18 in.
Tire Width: 100 mm
Aspect Ratio: 100
Purpose: Off-Road
Tire Brand: Shinko
Tire Line: 540 Series
Recommended Rim Size: 2.5 in.
Maximum Pressure: 33 psi
Tire Size: 100/100-18
Outside Diameter: 25.87 in.
Permitted Rim Size: 2.15~2.75
Model: R540 SERIES
Item: 87-4314
Weight: 13.55 lbs
Package Dimensions: 27.3 x 27.1 x 4.8
- Wide spaced knobs shed mud quickly
- Tall aggressive tread pattern for increased traction in the nastiest conditions
- NHS (Not for Highway Service)
Speed Rating: M
Construction: Bias
Load Index: 66
Tube Type: Tube
Position: Rear
Tire Ply Rating: 4 PR
Version: Sand
Inside Diameter: 19 in.
Tire Width: 120 mm
Aspect Ratio: 90
Purpose: Off-Road
Tire Brand: Shinko
Tire Line: 540 Series
Recommended Rim Size: 2.75 in.
Maximum Pressure: 33 psi
Tire Size: 120/90-19
Outside Diameter: 27.48 in.
Permitted Rim Size: 2.50~3.00
Model: R540 SERIES
Item: 87-4313
Weight: 12.75 lbs
Package Dimensions: 26.8 x 26.7 x 4.6
- Wide spaced knobs shed mud quickly
- Tall aggressive tread pattern for increased traction in the nastiest conditions
- NHS (Not for Highway Service)
Speed Rating: M
Construction: Bias
Load Index: 62
Tube Type: Tube
Position: Rear
Tire Ply Rating: 4 PR
Version: Sand
Inside Diameter: 19 in.
Tire Width: 110 mm
Aspect Ratio: 90
Purpose: Off-Road
Tire Brand: Shinko
Tire Line: 540 Series
Recommended Rim Size: 2.5 in.
Maximum Pressure: 33 psi
Tire Size: 110/90-19
Outside Diameter: 26.81 in.
Permitted Rim Size: 2.15~3.00
Model: R540 SERIES
Item: 87-4312
Weight: 11.2 lbs
Package Dimensions: 26.2 x 25.9 x 4.2
- Wide spaced knobs shed mud quickly
- Tall aggressive tread pattern for increased traction in the nastiest conditions
- NHS (Not for Highway Service)
Speed Rating: M
Construction: Bias
Load Index: 57
Tube Type: Tube
Position: Rear
Tire Ply Rating: 4 PR
Version: Sand
Inside Diameter: 19 in.
Tire Width: 100 mm
Aspect Ratio: 90
Purpose: Off-Road
Tire Brand: Shinko
Tire Line: 540 Series
Recommended Rim Size: 2.5 in.
Maximum Pressure: 33 psi
Tire Size: 100/90-19
Outside Diameter: 26.1 in.
Permitted Rim Size: 2.15~2.75
Model: R540 SERIES
Item: 87-4311
Weight: 8.65 lbs
Package Dimensions: 23.2 x 22.9 x 3.5
- Wide spaced knobs shed mud quickly
- Tall aggressive tread pattern for increased traction in the nastiest conditions
- NHS (Not for Highway Service)
Speed Rating: M
Construction: Bias
Load Index: 51
Tube Type: Tube
Position: Rear
Tire Ply Rating: 4 PR
Version: Sand
Inside Diameter: 16 in.
Tire Width: 90 mm
Aspect Ratio: 100
Purpose: Off-Road
Tire Brand: Shinko
Tire Line: 540 Series
Recommended Rim Size: 2.15 in.
Maximum Pressure: 33 psi
Tire Size: 90/100-16
Outside Diameter: 23.07 in.
Permitted Rim Size: 1.85~2.50
Model: R540 SERIES
Item: 87-4310
Weight: 7.55 lbs
Package Dimensions: 21.8 x 21.6 x 3.7
- Wide spaced knobs shed mud quickly
- Tall aggressive tread pattern for increased traction in the nastiest conditions
- NHS (Not for Highway Service)
Speed Rating: M
Construction: Bias
Load Index: 49
Tube Type: Tube
Position: Rear
Tire Ply Rating: 4 PR
Inside Diameter: 14 in.
Version: Sand
Tire Width: 90 mm
Aspect Ratio: 100
Purpose: Off-Road
Tire Brand: Shinko
Tire Line: 540 Series
Recommended Rim Size: 2.15 in.
Maximum Pressure: 33 psi
Tire Size: 90/100-14
Outside Diameter: 21.1 in.
Permitted Rim Size: 1.85~2.50
Model: R540 SERIES
Item: 87-4302
Weight: 8.75 lbs
Package Dimensions: 27.2 x 27.5 x 3.3
- Wide spaced knobs shed mud quickly
- Tall aggressive tread pattern for increased traction in the nastiest conditions
- NHS (Not for Highway Service)
Position: Front
Speed Rating: M
Construction: Bias
Load Index: 51
Tube Type: Tube
Tire Ply Rating: 4 PR
Version: Sand
Inside Diameter: 21 in.
Tire Width: 80 mm
Aspect Ratio: 100
Purpose: Off-Road
Tire Brand: Shinko
Tire Line: 540 Series
Recommended Rim Size: 1.85 in.
Maximum Pressure: 33 psi
Tire Size: 80/100-21
Outside Diameter: 27.28 in.
Permitted Rim Size: 1.60~2.15
Model: 540 SERIES
Item: 87-4301
Weight: 6.81 lbs
Package Dimensions: 21.66 x 21.66 x 2.76
- Wide spaced knobs shed mud quickly
- Tall aggressive tread pattern for increased traction in the nastiest conditions
- NHS (Not for Highway Service)
Position: Front
Speed Rating: M
Construction: Bias
Load Index: 42
Tube Type: Tube
Tire Ply Rating: 4 PR
Version: Sand
Inside Diameter: 19 in.
Tire Width: 70 mm
Aspect Ratio: 100
Purpose: Off-Road
Tire Brand: Shinko
Tire Line: 540 Series
Recommended Rim Size: 1.6 in.
Maximum Pressure: 33 psi
Tire Size: 70/100-19
Outside Diameter: 24.53 in.
Permitted Rim Size: 1.40~1.85
Model: 540 SERIES
Item: 87-4300
Weight: 6.32 lbs
Package Dimensions: 19.96 x 19.96 x 2.76
- Wide spaced knobs shed mud quickly
- Tall aggressive tread pattern for increased traction in the nastiest conditions
- NHS (Not for Highway Service)
Position: Front
Speed Rating: M
Construction: Bias
Tube Type: Tube
Tire Ply Rating: 4 PR
Version: Sand
Inside Diameter: 17 in.
Tire Width: 70 mm
Aspect Ratio: 100
Purpose: Off-Road
Tire Brand: Shinko
Tire Line: 540 Series
Recommended Rim Size: 1.6 in.
Maximum Pressure: 33 psi
Load Index: 40
Tire Size: 70/100-17
Outside Diameter: 22.52 in.
Permitted Rim Size: 1.40~1.85
Model: 540 SERIES
Unmatched Performance with 540 Series Tire
Experience superior grip and control with the 540 Series Tire, designed for riders who demand the best in traction and durability. Its tall aggressive tread pattern and wide spaced knobs shed mud quickly, making it the ideal choice for tackling the toughest terrains.
Conquer the Toughest Trails
The 540 Series Tire is built for those who love to explore off-road paths. The tall aggressive tread pattern enhances traction in muddy and slippery conditions, ensuring you can navigate through any obstacle with confidence. Whether you're racing or just enjoying a ride, this tire delivers performance that doesn't compromise on safety.
Quick Mud Shedding for Optimal Performance
Don’t let mud slow you down. The unique design of wide spaced knobs allows for quick shedding of mud, maintaining optimal contact with the ground. This means you can keep your momentum and enjoy a smoother ride even in the messiest of conditions. Trust the 540 Series Tire to keep you moving forward!
Not for Highway Service
Keep in mind, the 540 Series Tire is specifically designed for off-road use. This means you can expect a rugged performance that is tailored for intense trail riding, rather than highway use. It’s built to handle the demands of rough terrains, offering durability and reliability where it matters most.
Specifications
| Parameter | Value |
|---|---|
| Tread Pattern | Tall aggressive |
| Mud Shedding Capability | Wide spaced knobs |
| Service Type | NHS (Not for Highway Service) |
This product has variations, so please ensure you select the correct variation for more detailed information.
FAQ
Is the 540 Series Tire suitable for wet conditions?
Absolutely! With its tall aggressive tread pattern, the 540 Series Tire excels in wet and muddy conditions, providing excellent traction and control.
Can I use this tire for everyday riding?
This tire is not recommended for everyday highway use, as it is specifically designed for off-road performance. It’s perfect for trail riding and rugged terrain.
