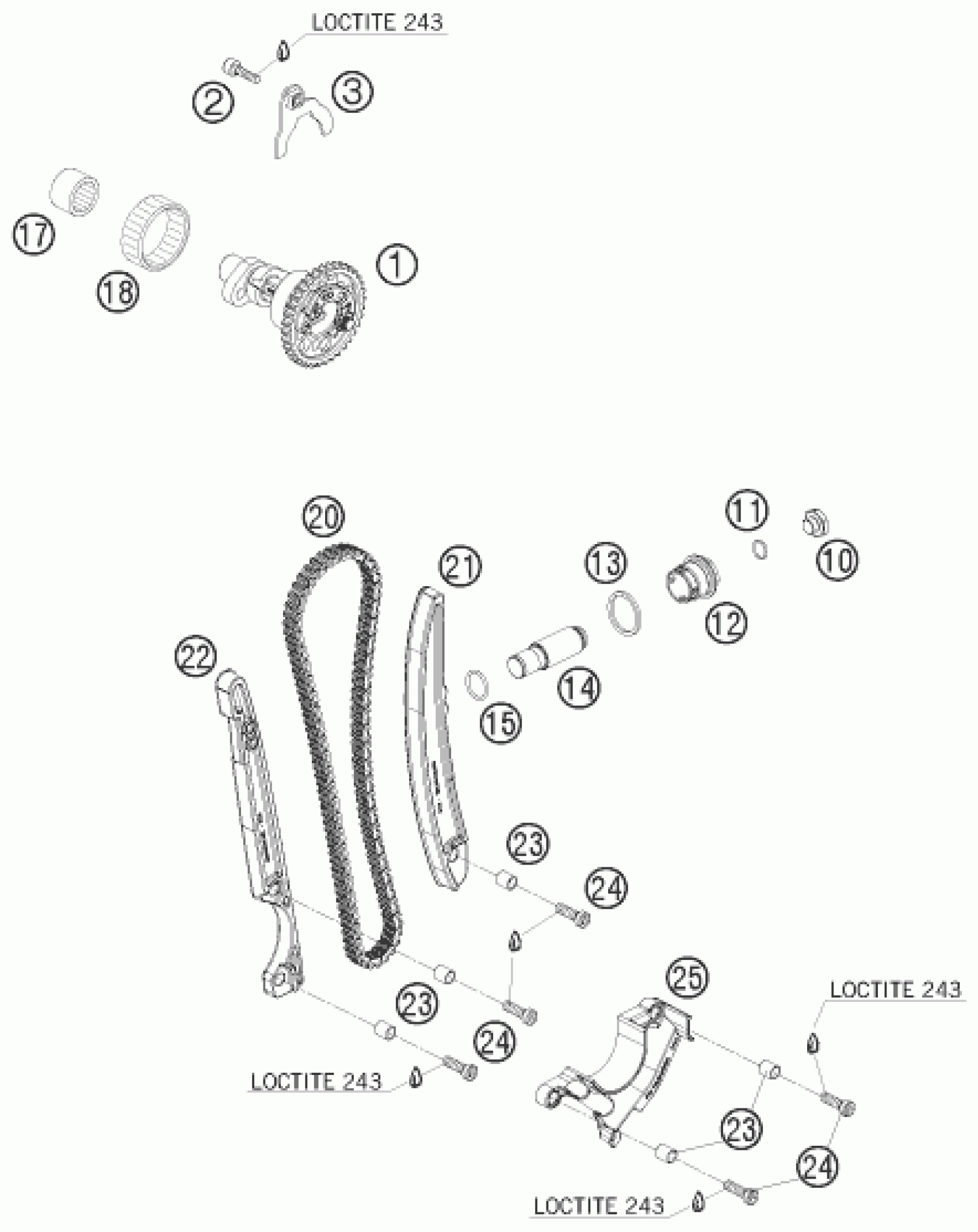

KTM 530 XC-W 2010 TIMING DRIVE Diagram

CAMSHAFT WITH AUTODECO

81736010033

Unavailable

AH SCREW DIN0912-M 6X20 SS

0912060208

$2.05

RETAINING PLATE CAMSHAFT CPL.

78036012033

$11.30

HOLDING BOLT

77336008010

$8.31

o-ring 10.00x1.00 NBR70

0770010010

$2.05

CHAIN ADJUSTER HOLDING BOLT

78036008100

$21.68

CU SEAL-RING DIN7603 A24X29X2

0603242920

$3.08

chain tension adjuster

77036003100

$63.85

o-ring 18.00x2.00 NBR70

0770180020

$2.05

NEEDLE SLEEVE HK1814RS18/24/14

0618182414

$9.06

NEEDLE SLEEVE HK4012B40X47X12

0618404712

$11.02

TIMING CHAIN 114T 08

78636013000

$84.24

TIMING CHAIN TENSIONER

78036002100

$7.47

GUIDE RAIL

78036001000

$6.35

SPACER BUSHING 6.1X8.2X9.1 05

77036001050

$4.11

AH SCREW DIN6912-M 6X20 8.8

0984060203

$2.05

FAILURE PROTECTION

78036005100

$6.72
