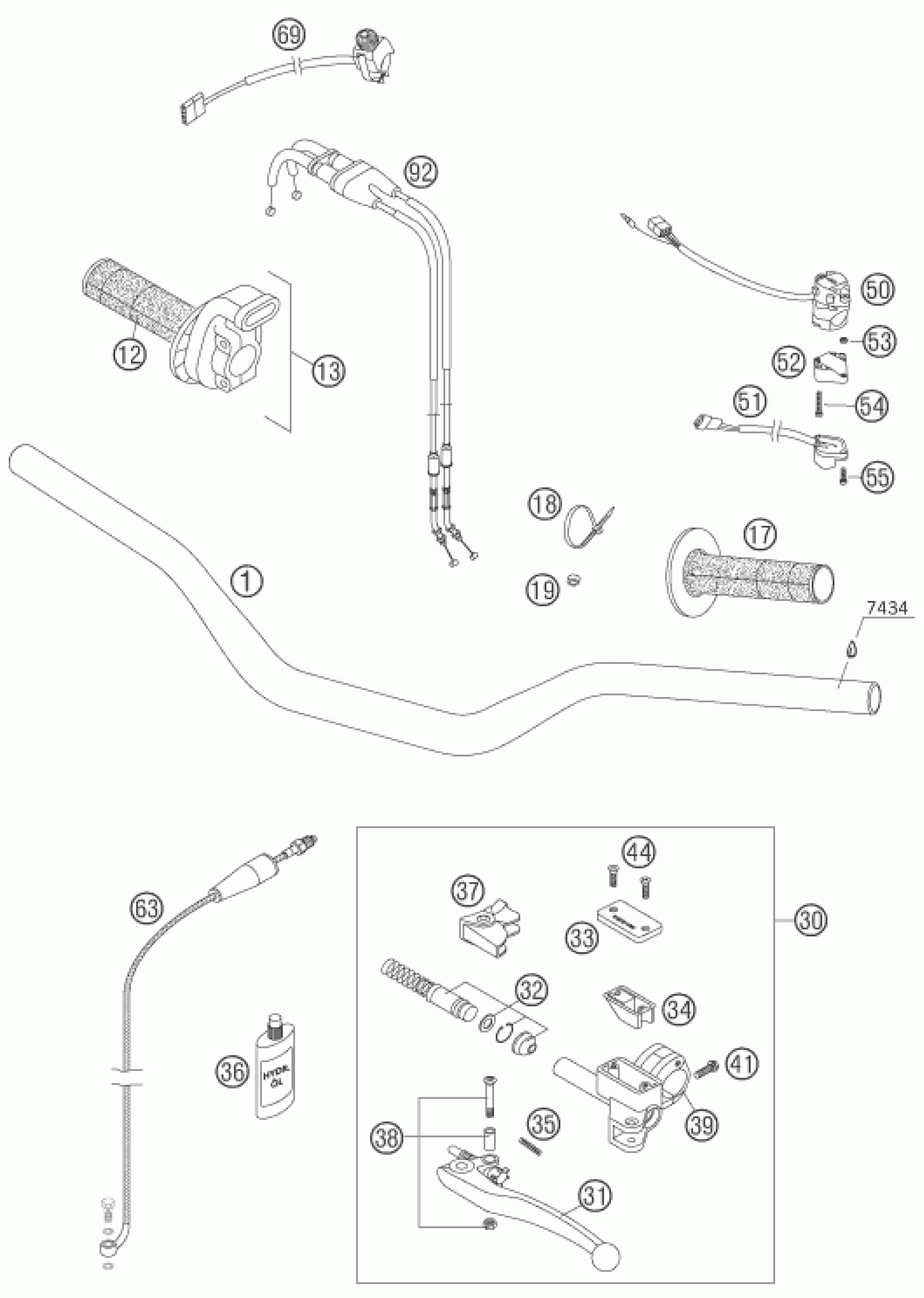

KTM 525 XC DESERT RACING 2007 HANDLEBAR, CONTROLS Diagram

HANDLEBAR 28MM HIGH 2000

59002001000

$175.68

TWIST GRIP COVER RENTHAL 04

54802013000

$22.71

THROTTLE GRIP CPL. RAC. 04

59402010000

$44.59

FIXED GRIP RENTHAL 04

54802039000

$22.71

Cable tie 200/4.6mm black

44011076200

Unavailable

CABLE TIE 100/2,5MM BLACK

44011076100

Unavailable

SPACER BUSHING 6X10X5

50301089000

$2.05

MASTER CYLINDER CPL. RACING 04

59002030200

$345.85

CLUTCH LEVER LONG CPL. 2003

59002031000

$40.10

CLUTCH LEVER SHORT CPL. 2003

54602031000

Unavailable

REP.KIT PISTON 9,0MM RAC. 2004

59002032100

$64.23

COVER HYD.CLUTCH 2T 2000

50302033100

$27.76

RUBBER FOR RESERVOIR '98

50302034000

$18.97

SPRING FOR CLUTCH LEVER 03

59002035000

$4.11

OIL FOR HYD. CLUTCH 100 ML

50302036200

$19.91

PROTECT.CAP FOR LEVER PERCH'98

50302037000

$19.07

LEVER SCREW CPL. 125-200 '98

50302038000

$23.46

CLAMP WITH PIN 2000

50302030150

$33.18

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

FLAT HEAD SCREW DIN0965-M 4X12

0965040123

$1.49

H.LIGHT SWITCH CEV 2/4TAKT '98

50311070000

$64.69

FLASHER SWITCH CEV '98

50311029000

$51.98

ADAPTER FOR FLASHER SWITCH '98

13011070060

$5.23

HEXAGON NUT DIN0934-M 4

0934040003

$1.49

CYL.HEAD SCREW DIN0084-M 4X22A

0084040223

$1.49

FLAT HEAD SCREW DIN7985-M 4X16

0985040163

$2.05

CLUTCH PIPE RACING 2003

59032063100

$103.03

STARTER CONTROL 04

59411074000

$42.91

THR.CABLE''OPEN-CLOSE''KEIHIN

59002091300

$76.76
