CRANKSHAFT, PISTON

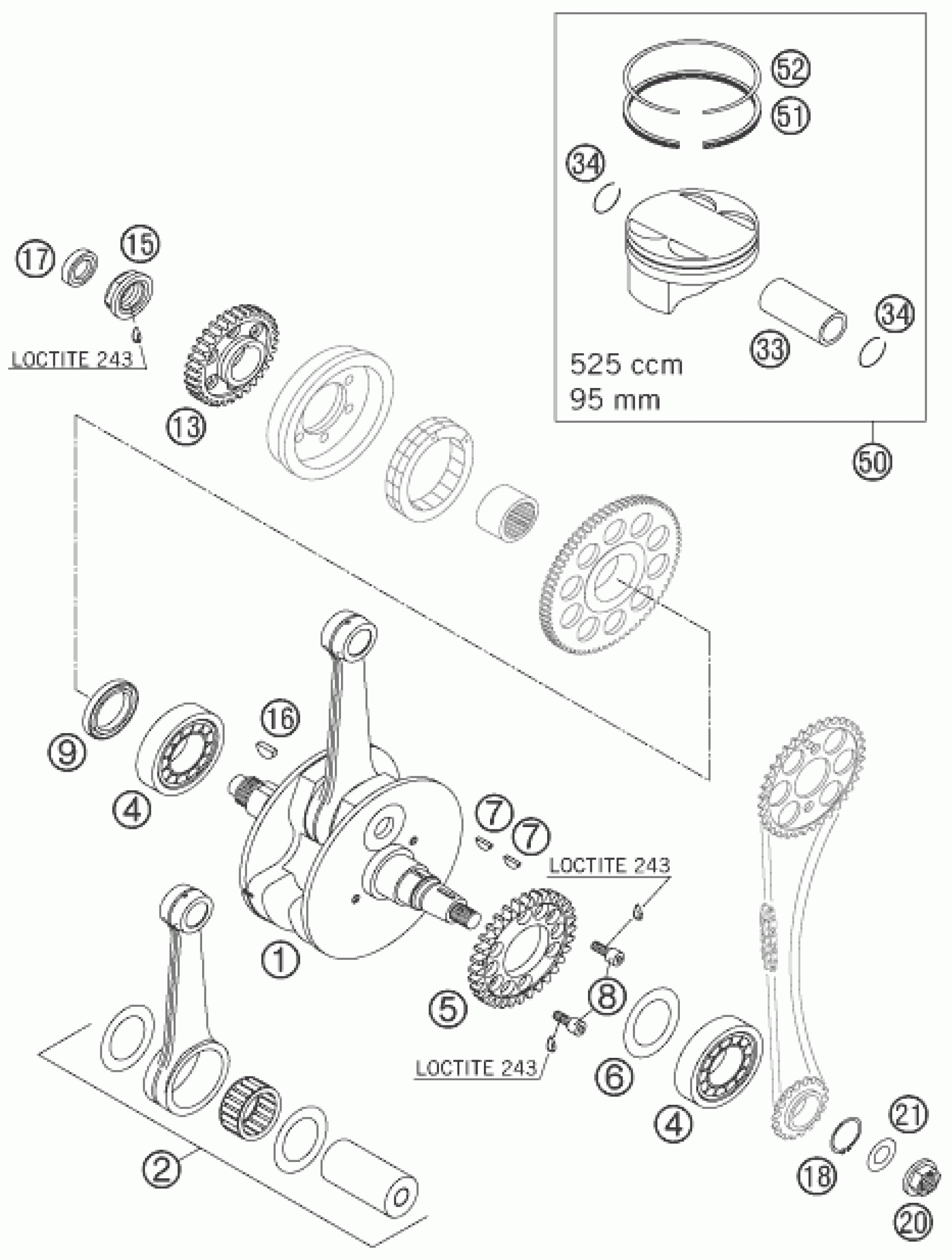

KTM 525 XC DESERT RACING 2006 CRANKSHAFT, PISTON Diagram
#
Description
Price
1
CRANKSHAFT CPL. 520 RAC. 2006
59030018500
$647.72
2
CON.ROD REP.SET 250/520 RAC.00
59030015044
$490.77
4
CYL.ROLLER BEAR.NJ206 ET2XCS46
50330082000
$83.21
5
DRIVE GEAR 32-T F.BALANC.SHAFT
59030055000
$91.24
6
THRUST WASHER 30,5X45X0,10
56030081000
Unavailable
6
THRUST WASHER 30,7X47X0,15
56030081100
Unavailable
6
THRUST WASHER 30,5X45X0,30
56030081200
Unavailable
7
WOODRUFF KEY DIN6888-3X5X13
0888030050
$2.05
8
AH SCREW DIN7984-M 6X16
0984060162
$1.49
9
SH.SEAL RING 30X47X7 BSL VITON
0760304772
$20.37
13
PRIMARY GEAR 33-T
59032000033
$126.59
15
HH NUR M20X1,5 WS=27 LEFT
59030029100
$6.96
16
WOODRUFF KEY 5X6,5 HARDED
6946005
$2.05
17
radial shaft seal 14x24x6 B
0760142460
$9.25
18
CIRCLIP DIN0471-25X1,2
0471250120
$2.05
20
COLLAR NUT M12X1 R/S
49030021000
$2.05
21
SPRING WASHER DIN0137-B12
0137120000
$1.49
33
PISTON PIN BOLT 20X15,8/12X50
59030033000
$18.01
34
CIRCLIP C20X1,5
59030074000
$2.05
50
PISTON I 95MM CPL. FORGED 2000
59030007000 I
$510.69
50
PISTON II 95MM CPL.FORGED 2000
59030007000 II
$700.40
51
OIL SCRAPER RING 95MM
58030631000
$25.42
52
RECTANGULAR RING 95/87,2X1,25
59030032000
$36.92
