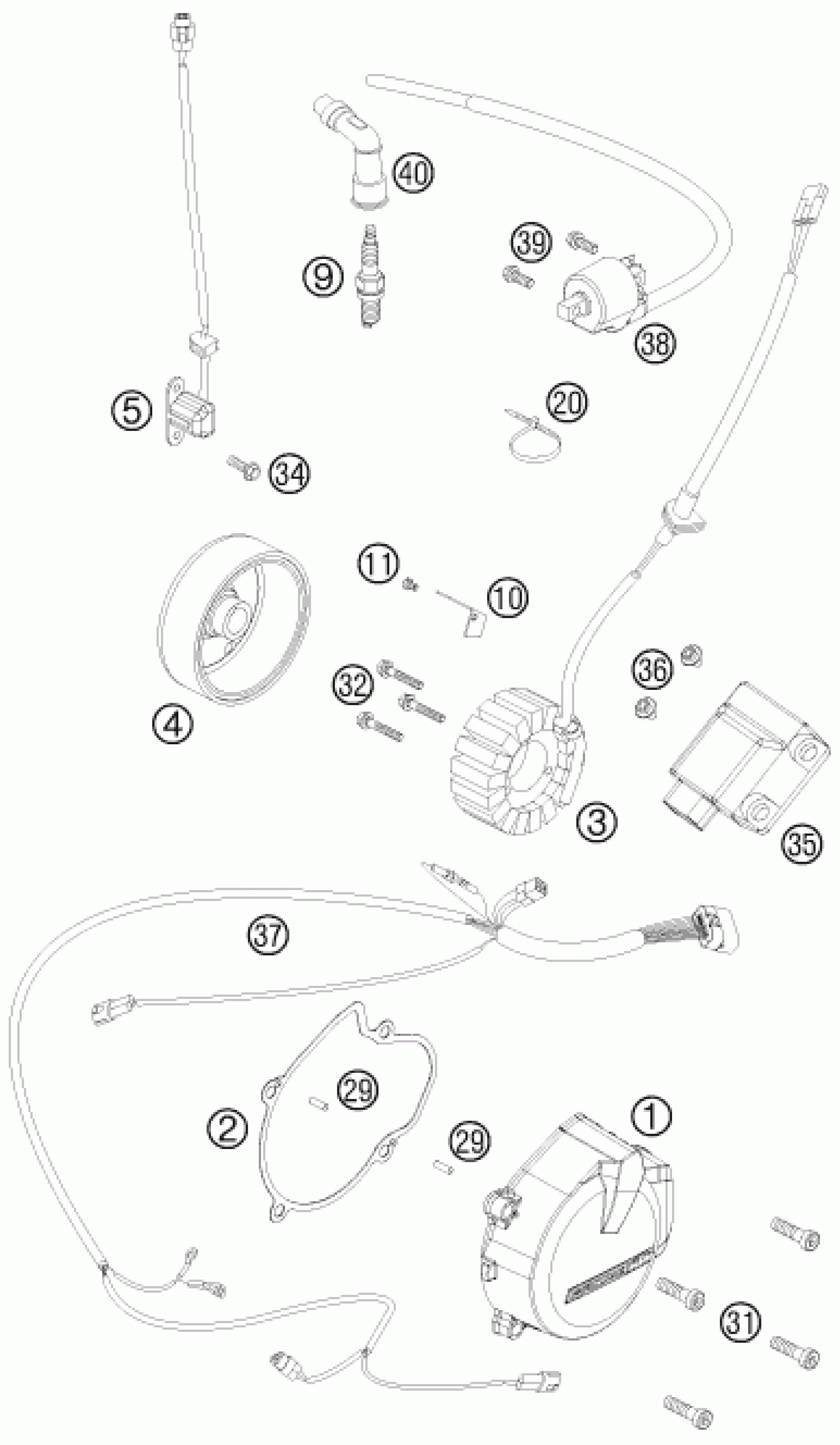

KTM 525 XC ATV 2012 IGNITION SYSTEM Diagram

#

Description
Price

11

CYL.HEAD SCREW DIN0084-M 4X 6A

0084040063

$1.49

20

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

29

Needle roll.DIN5402 NRB 4X9.8

0402040980

$3.08

31

AH SCREW DIN6912-M 8X30

0012080303

$2.05

32

HH collar screw M6x30 TX30

0025060306

$3.08

34

HH collar screw M5x16 TX30

0025050166

$2.05

35

CDI-BOX ATV 525

83039031100

$290.72

36

COLLAR SCREW M6X12 TX

0023060123

$2.05

37

WIRING HAR. F. CDI-BOX 525 ATV

83039032000

$124.44

38

IGNITIONCOIL ''IG5128''

59039006000

$66.19

39

HH collar screw M6x16 TX30

0025060166

$3.08

40

SPARK PLUG CONNECT. VD05EG03

59039090100

$37.56

1

IGNITION COVER GREY

8303000220025

$73.45

2

IGNITION COVER GASKET

83030040000

$11.02

3

STATOR

83039004000

$233.55

4

ROTOR

83039005000

$197.60

5

pulse generator KOKUSAN 4K3-A/

59039034000

$89.28

9

SPARK PLUG NGK DCPR8E 03

59039093100

$7.00

10

SUPPORT FOR WIRE

59030002050

$4.10
