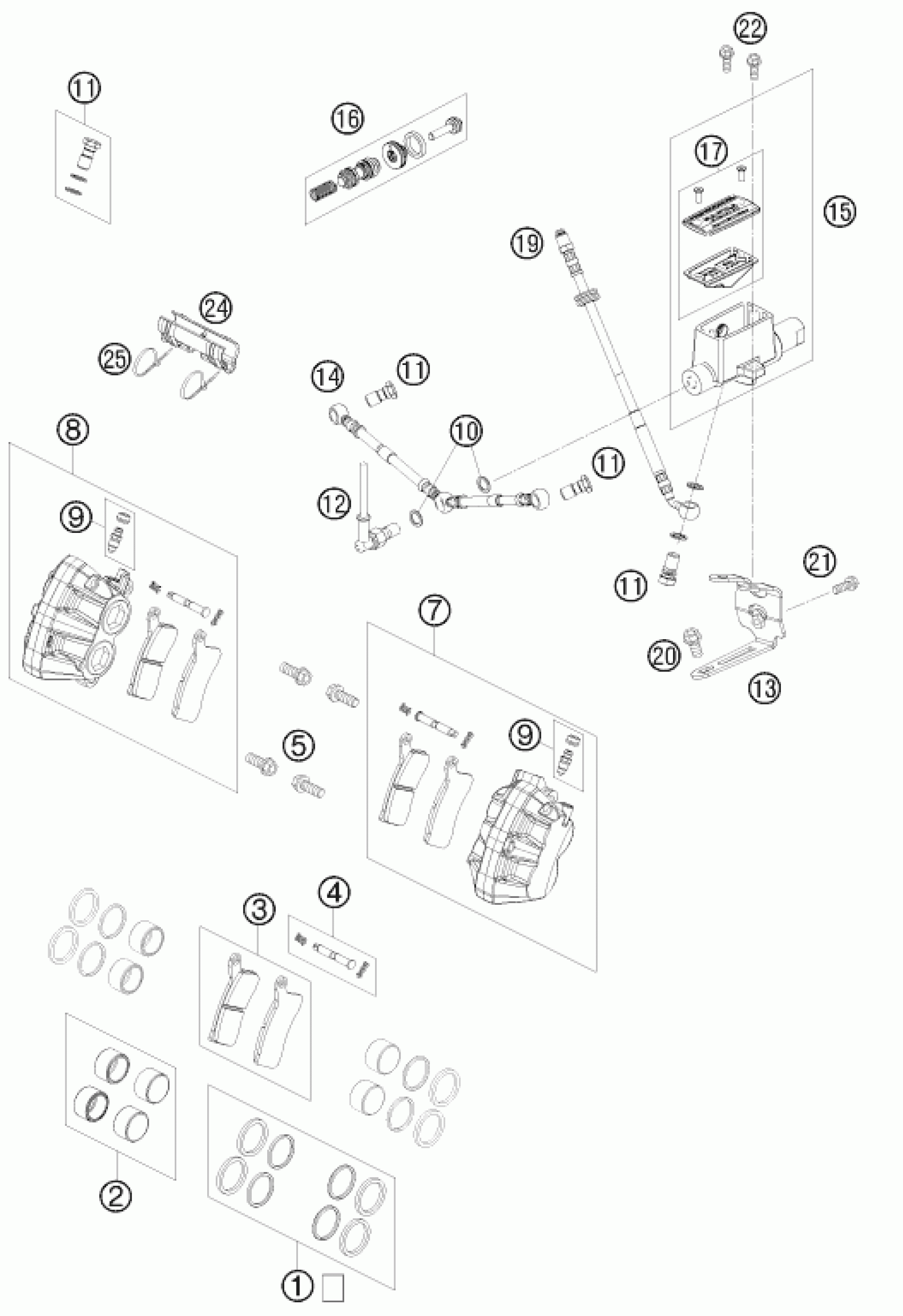

KTM 525 XC ATV 2010 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

SEALING RING 8X MAGURA 26MM

83013021000

$178.83

2

PISTON KIT 4X MAGURA 26MM

83013019000

$70.71

3

BRAKE PAD SET FRONT ORGANIC

83013030100

$59.43

4

SET - BOLT 1X, PIN 2X

83013017000

$32.03

5

HH collar screw M8x20

0025080206

$2.05

7

BRAKE CALIPER FRONT L/S

83013015100

$637.32

8

BRAKE CALIPER FRONT R/S

83013016100

$629.08

9

BLEEDER SCREW WITH CAP

54732064000

$21.96

10

COPPER GASKET

59413013050

$6.63

11

HOLLOW SCREW + COPPER GASKET

59032062000

$25.05

12

BREAK LIGHT SWITCH

83013043000

Unavailable

14

BREAK TUBE FRONT LOWER

83013011000

Unavailable

15

IBS VALVE CPL.

83013031000

Unavailable

16

PISTONKIT IBS VALVE CPL.

83013032000

Unavailable

19

BREAK TUBE FRONT UPPER

83013010000

Unavailable

17

COVER, MEMBRANE, SCREW

83013003000

$101.25

13

SUPPORT IBS-VALVE

83003036000

Unavailable

20

HH collar screw M8x12 TX40

0025080126

$3.08

21

COLLAR SCREW M6X12 TX

0023060123

$2.05

22

HH collar screw M6x20 TX30

0025060206

$3.08

24

BRAKE LINE GUIDE

83013012050

$5.23

25

CABLE TIE 300/4,8MM BLACK

44011076305

$2.05
