Description

Price

3

Distance bush 12x15/18/24,5x10

46180007

$17.76

4

Seal ring 19,5x26x3

46180003

$5.60

12

WP CAUTION (PDS KTM) 58X83

52000041

$16.73

14

O-ring 41x5 Viton75

46180014

$2.05

15

Piston 52mm reservoir

46180002

$43.66

16

Pistonring 47,5x50,5x3,9

46180015

$10.00

36

AH SCREW DIN0912-M 5X30

0912050303

$1.49

40

SPRING 250 69N/MM D=12,0 (62)

91210001

Unavailable

40

SPRING 250 72N/MM D=12,5 (59)

91210002

Unavailable

40

SPRING 250 76N/MM D=12,5 (59)

91210003

Unavailable

40

SPRING 250 80N/MM D=12,5 (62)

91210004

$125.26

40

SPRING 250 84N/MM D=13,0 (62)

91210005

Unavailable

40

SPRING PDS5-260 66-86N/MM

91210014

Unavailable

40

SPRING PDS6-260 71,5-90,5N/MM

91210015

Unavailable

40

SPRING PDS7-260 76-95N/MM

91210016

Unavailable

80

Guide bushing 18x20x12

46180119

$6.35

93

Steel ball d3

40540603

$1.49

99

REPAIR-KIT GASKET 5018 PDS 03

R12008

$123.66

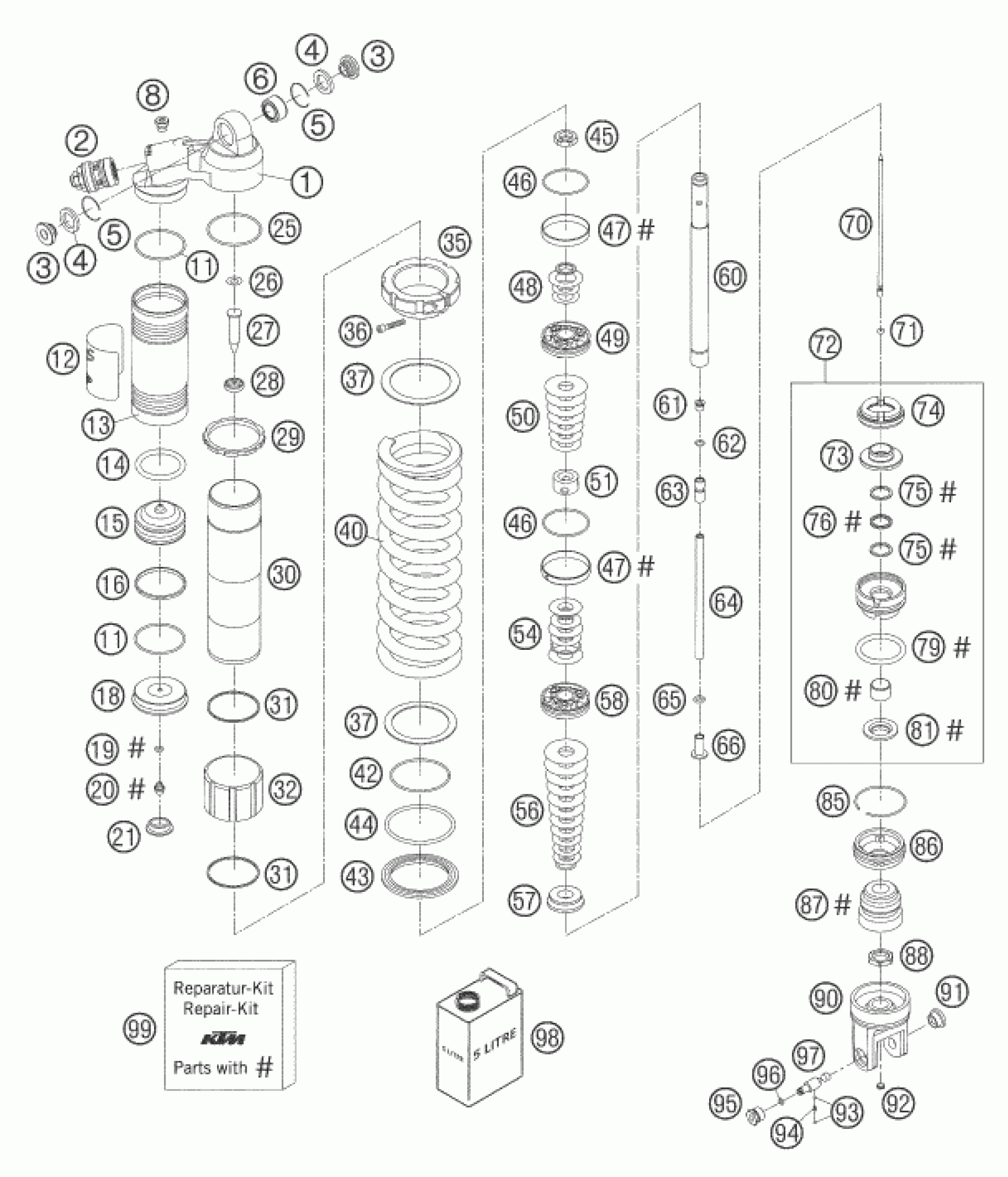

KTM 525 SX SUPERMOTO 2005 SHOCK ABSORBER DISASSEMBLED Diagram

Distance bush 12x15/18/24,5x10

Seal ring 19,5x26x3

WP CAUTION (PDS KTM) 58X83

O-ring 41x5 Viton75

Piston 52mm reservoir

Pistonring 47,5x50,5x3,9

AH SCREW DIN0912-M 5X30

SPRING 250 69N/MM D=12,0 (62)

SPRING 250 72N/MM D=12,5 (59)

SPRING 250 76N/MM D=12,5 (59)

SPRING 250 80N/MM D=12,5 (62)

SPRING 250 84N/MM D=13,0 (62)

SPRING PDS5-260 66-86N/MM

SPRING PDS6-260 71,5-90,5N/MM

SPRING PDS7-260 76-95N/MM

Guide bushing 18x20x12

Steel ball d3

REPAIR-KIT GASKET 5018 PDS 03
