Description

Price

6

AH SCREW DIN6912-M10X35 10.9

0912100356

$4.11

7

STE.HEAD SCR. M20X1,5 WS=27 SL

54801036100

$14.67

32

BOTTOM TRIPLE CLAMP D=60MM 05

59401031019

$279.09

33

FORK TUBE L=237MM 05

59401033000

$85.64

34

TOP TRIPLE CLAMP D=54MM 05

59401034019

$223.74

36

STEER.HEAD SCREW M20X1,5 WS=27

54801036000

$11.21

38

HANDLEBAR CLAMP 28MM 05

59401038000

$25.05

39

Handlebar mount D28mm-H32mm

59401039032

Unavailable

39

Handlebar mount D28mm-H37mm

59401039037

$34.12

39

Handlebar mount D28mm-H42mm

59401039042

Unavailable

81

TAPERED ROLLER BEARING CPL.

54201081000

$51.04

82

O-RING SUPPORT W. SEALING LIP

54601084100

$19.35

84

STEARING HEAD GASKET TOP

54601184000

$7.10

85

CLAMP F.SPEED.CABLE D=6MM 2001

59001085100

$3.08

86

STEERING HEAD COVER

54201086000

$8.50

91

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

92

FORK PROTECT L/S+R/S BLACK 02

5900109400030

$40.20

94

LOCTITE 243 BLUE 5 ML

6899785

$28.04

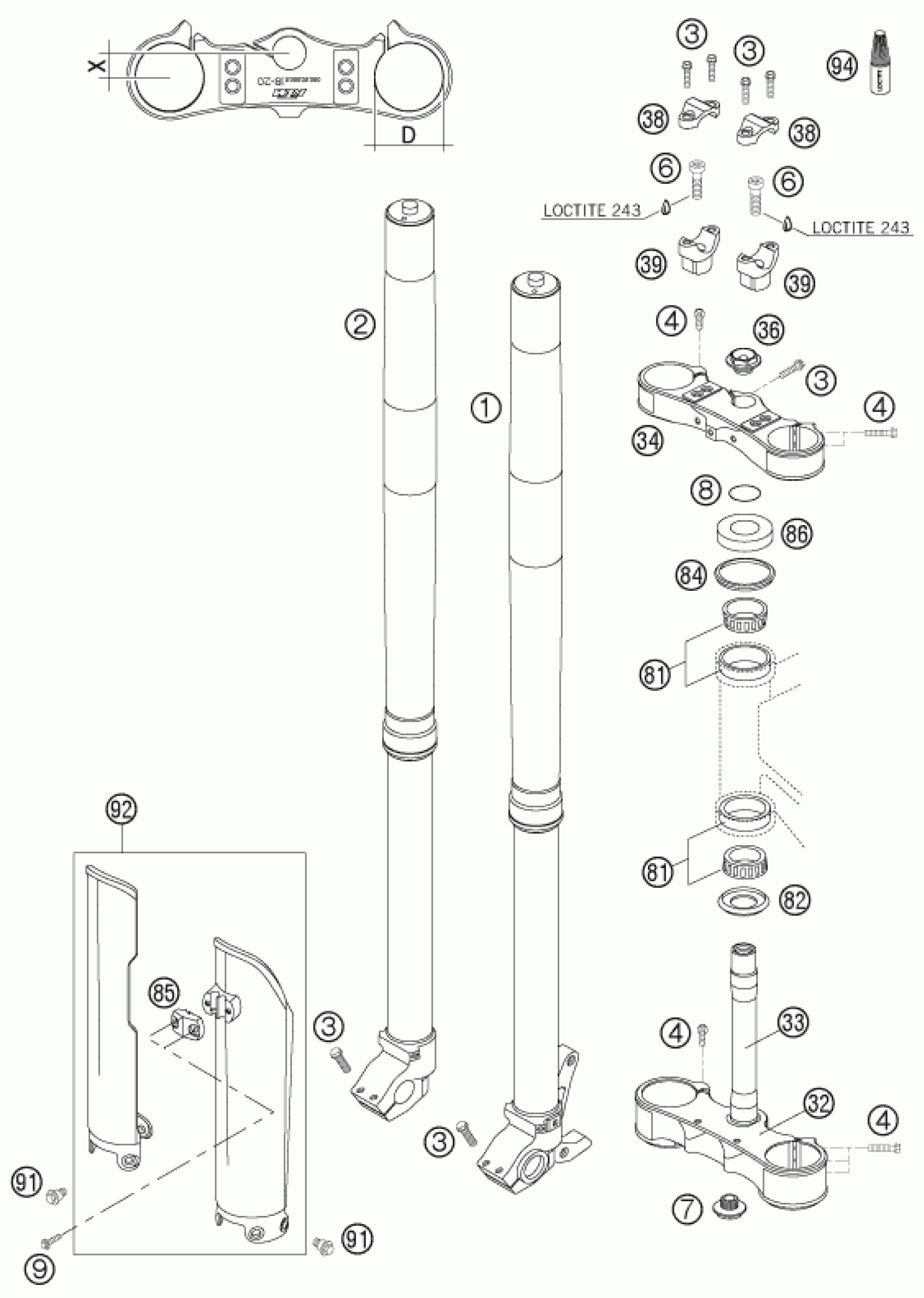

KTM 525 SX SUPERMOTO 2005 FRONT FORK, TRIPLE CLAMP Diagram
