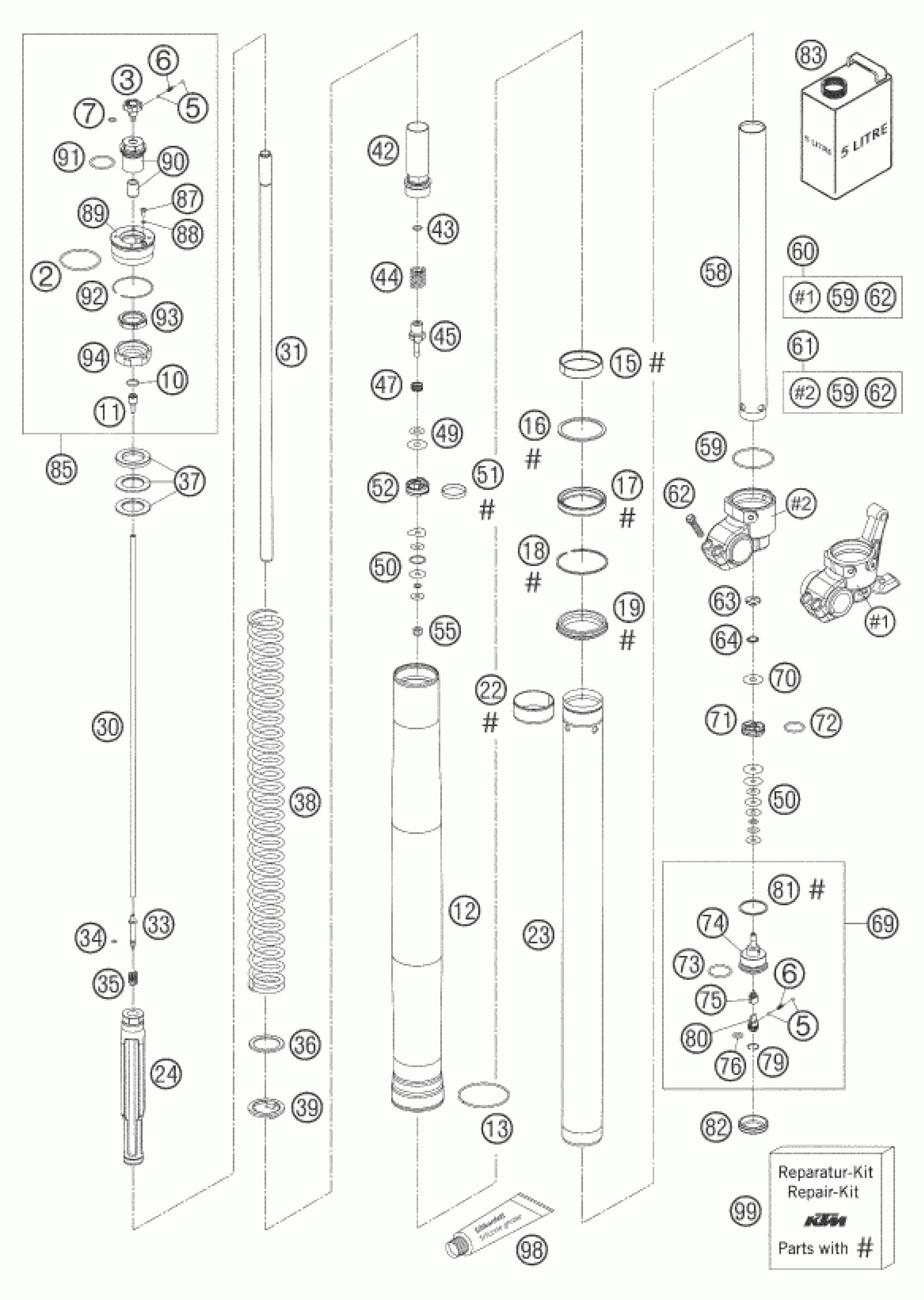

KTM 525 SX SUPERMOTO 2005 FRONT FORK DISASSEMBLED Diagram

#

Description
Price

5

Steel ball d3

40540603

$1.49

12

OUTER TUBE L=577MM D=54/60MM

48600381

$443.86

15

DU-BUSH 48X52X12

48600205

$32.25

17

Shaft seal SKF 48x57,8x9,5 bla

48600399

$13.64

18

Snap ring SB58x1,5 acc drawing

48600070

$2.05

19

DUST CAP D=48 58,4X11,8

48600400

$12.80

22

DU-BUS 47X49X20

48600204

$12.05

23

INNER TUBE D=48 L=595 2005

48600377

$310.32

24

HYDR.STOP L=200MM D=31,9 CPL.

48600380S

$47.38

30

ADJUSTMENT TUBE L=517MM

48600092

$54.69

31

PISTON ROD D=14 L=551 M11X1

48600409

$104.25

33

Needle 6x42,6 rebound

48600189

$34.68

36

Washer 32x42x2,5 plastic

48600113

$11.12

38

SPRING 3,6N/MM SET

91410011S

Unavailable

38

SPRING 3,8N/MM SET D=4,9MM

91410012S

Unavailable

38

SPRING 4,0N/MM SET D=5,0MM

91410013S

Unavailable

38

SPRING 4,2N/MM SET D=5,0MM

91410014S

Unavailable

38

SPRING 4,4N/MM SET D=5,1MM

91410015S

Unavailable

38

SPRING 4,6N/MM SET

91410016S

$145.85

38

SPRING 4,8N/MM SET

91410017S

Unavailable

42

SCREW SLEEVE M29,3X1 L=90 CPL.

48600383S

$84.24

43

O-ring 8x1,25 NBR70 siliconize

48600239

$1.49

44

Spring (15) 12-34,5 rebound

48600403

$31.71

45

Tap 6x45 rebound

48600203

$8.37

49

CHECK VALVE 8X18X0,1

48600068

Unavailable

49

Shim 8x20x0,10

48600215

Unavailable

49

Shim 8x22x0,10

48600216

Unavailable

49

CHECK VALVE 8X11X0,4

48600352

Unavailable

49

Shim 8x11x0,10

48600357

Unavailable

50

Shim 6x12x0,10

40540400

Unavailable

50

Shim 6x14x0,10

40540401

Unavailable

50

Shim 6x16x0,10

40540402

Unavailable

50

Shim 6x18x0,10

40540403

Unavailable

50

SHIM 6X16X0,25

40540414

Unavailable

50

SHIM 6X18X0,25

40540415

Unavailable

50

Shim 6x10x0,30

40540447

Unavailable

50

Shim 6x9,5x0,30

40540450

Unavailable

50

Shim 6x24x0,10 delta

48600116

Unavailable

55

Nut M6x0,5 h6,5 WAF10 rebound

40540486

$4.11

58

TUBE 29,3X1X390 D=8,5MM

48600081

$155.20

60

AXLE CLAMP L/S CPL. USD48 04

48600237S

$297.75

61

AXLE CLAMP R/S CPL. USD48 04

48600238S

$289.59

63

Nut valve M6x0,5 h6,5 WAF17

48600163

$3.08

64

Spring (8,5) l6,5 valve

48600202

$2.05

69

TAP COMPRESSION CPL. 03

48600152S1

$37.67

74

TAP COMPRESSION

48600152

$37.67

75

Needle 10x11,6 compression

48600190

$13.64

82

Rubber cap 35x10 NBR80

48600141

$4.11

83

FORK OIL SAE5 5L 2005

48600401S1

$149.59

85

PRE-LOAD ADJUSTER CPL.(1 PC.)

48600075S

$497.96

87

VENT SCREW M4X8

48600076

$2.05

89

SCREW CAP M51X1,5

48600075

$124.95

90

ADAPTER ADJUST. KNOB + BUSHING

48600073S

$154.12

91

O-ring 26x2 NBR90

48600077

$1.49

93

Locking nut M25x1 LH h7 WAF32

48600072

$16.11

94

Carrier ring spring fork

48600071

$38.54

98

SILICONE GREASE F. DUST STRI

T511

$34.59

99

REPAIR-KIT GASKET 4860 MXMA 05

R14009

$106.21
