Description

Price

1

HAND BRAKE CYLINDER CPL. SX 05

54813001000

$146.49

9

HANDBRAKE CYL.COVER CPL.NATURE

50313003000

$24.68

10

REP.SET PISTON D=10MM SX 05

54813008000

$51.14

10

REP.SET PISTON D=10MM EXC 05

54813008100

$42.53

11

CLAMP CPL. NATURE

50313005000

$26.08

15

LEVER SCREW CPL. 2001

50313006100

$12.61

20

HAND BRAKE LEVER + SPRING '05

54813002000

$30.94

21

ADJUSTING SCREW CPL. SX 2005

54813007000

$28.88

23

PROTECTION CAP HAND BRAKE CYL.

50313004000

$12.61

25

Clamp for mirror

58012040150

Unavailable

30

Brakeho. Front 1235mm 2000

59013010000

$127.71

31

HOLLOW SCREW M10X1X19

50213025000

$6.54

32

CU-SEAL RING DIN7603-10X16X1

42013226000

$2.05

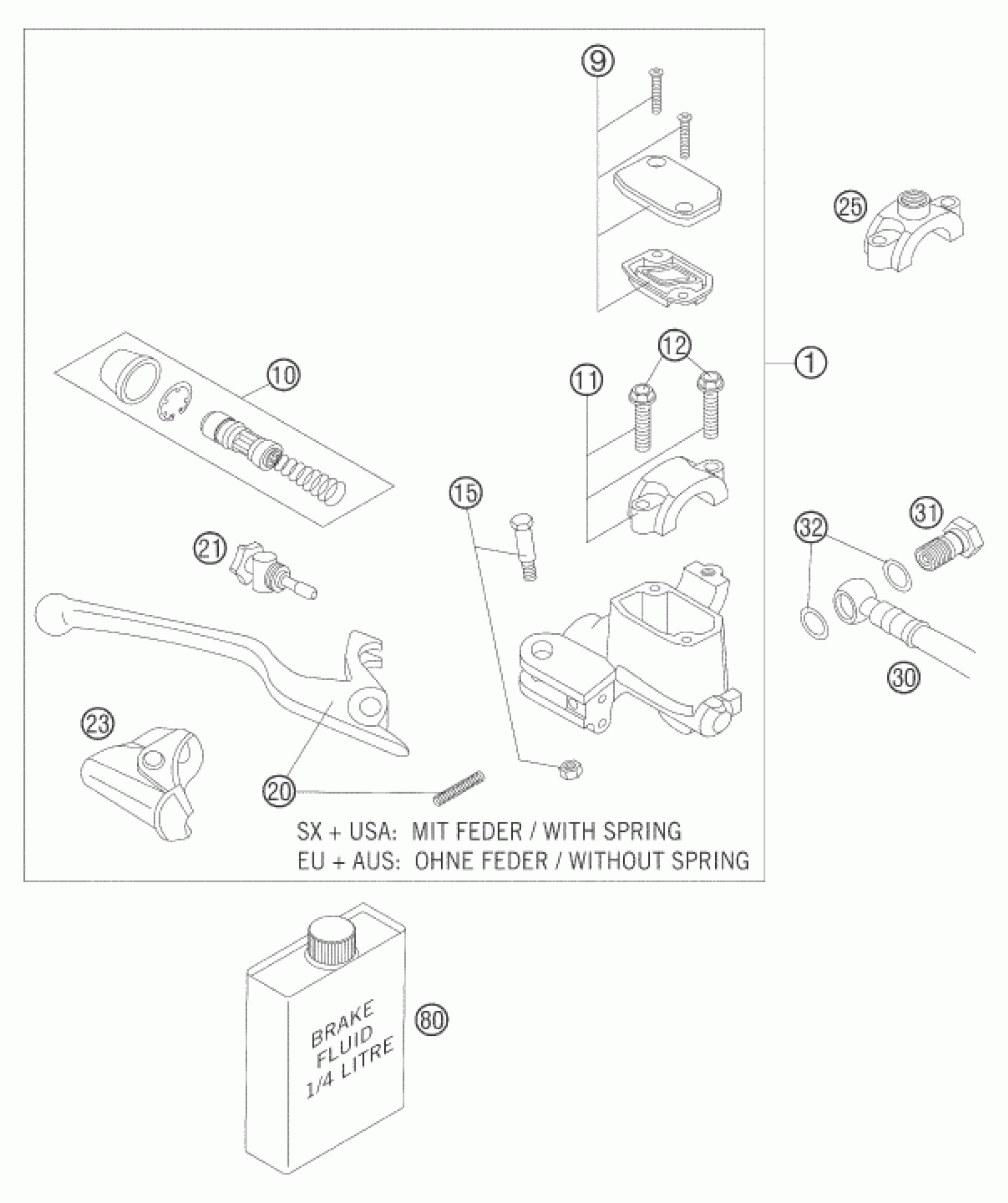

KTM 525 SX SUPERMOTO 2005 FRONT BRAKE CONTROL Diagram
