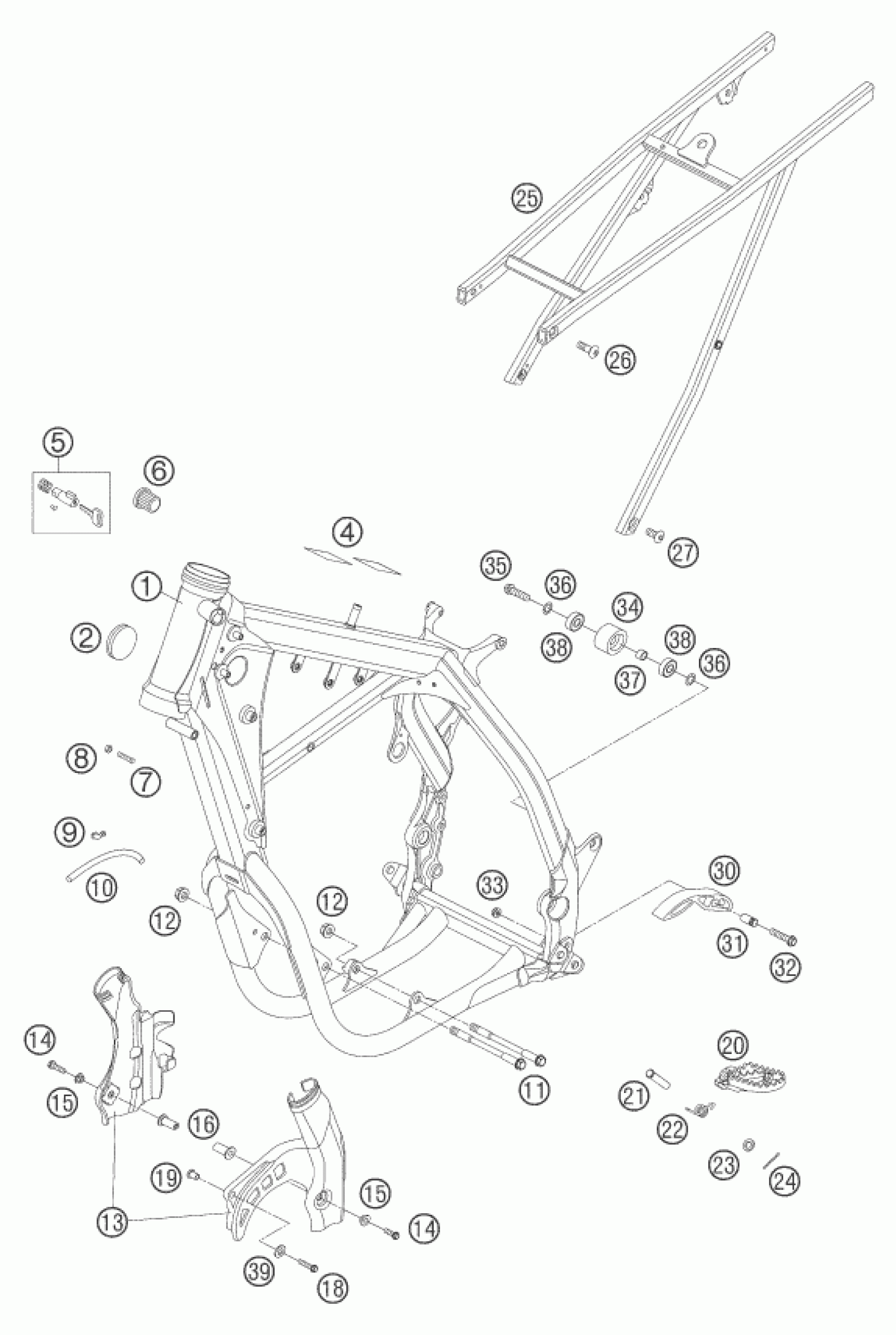

KTM 525 SX SUPERMOTO 2005 FRAME Diagram

#

Description
Price

1

FRAME SX RACING ''DA05''

5940300150096

Unavailable

2

PLUG 37MM

54606004000

$2.05

4

ADH. FOIL TRANSP. 80X80 MM 04

50307012000

$2.05

5

STEERING HEAD LOCK CPL. ZADI

71003007000

$32.06

6

PLASTIC CAP

42007049000

Unavailable

7

SPECIAL SCREW M8X26 WS=10

59001037000

$3.08

9

ANGLE PIECE '97

50303089000

$5.23

10

PVC-HOSE 7X10 PER METER

55007016001

$6.07

11

Enginebrac. screw M10X123 WS=1

59003013000

$9.44

12

SELF LOCKING NUT M10 CU WS=14

54310086100

$2.05

13

FRAME PROTECTION SET 05

54803094100

$20.94

15

Bush f. frame protection 03

54803092060

$4.11

16

BLIND PLUG-IN NUT M5 WN 22A 03

54803092050

$5.23

19

BUSHING F. SPROCKET COVER RAC.

59030060050

$10.46

20

FOOT PEG L/S SILVER 02

59003040250

$43.66

20

FOOT PEG R/S SILVER 02

59003041250

$43.66

21

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

$12.43

22

FOOTREST SPRING L/S & R/S

54603041000

$5.23

25

SUB FRAME CPL. SX RAC. ''G5''

59403002244

$274.11

26

SPROCKET SCREW-AH M8X26 WS=6

54510052100

$3.08

27

SPROCKET SCREW-AH M8X20 WS=6

54610052000

$2.05

30

CHAIN SLIDING PIECE BELOW '97

51103053000

$9.15

31

BUSHING 8,2X10X20

51103053051

$4.11

33

Self locking nut M8 10.9

54310086200

$3.08

37

BUSHING 8.2 X 12 X 6

74003021000

$3.08
