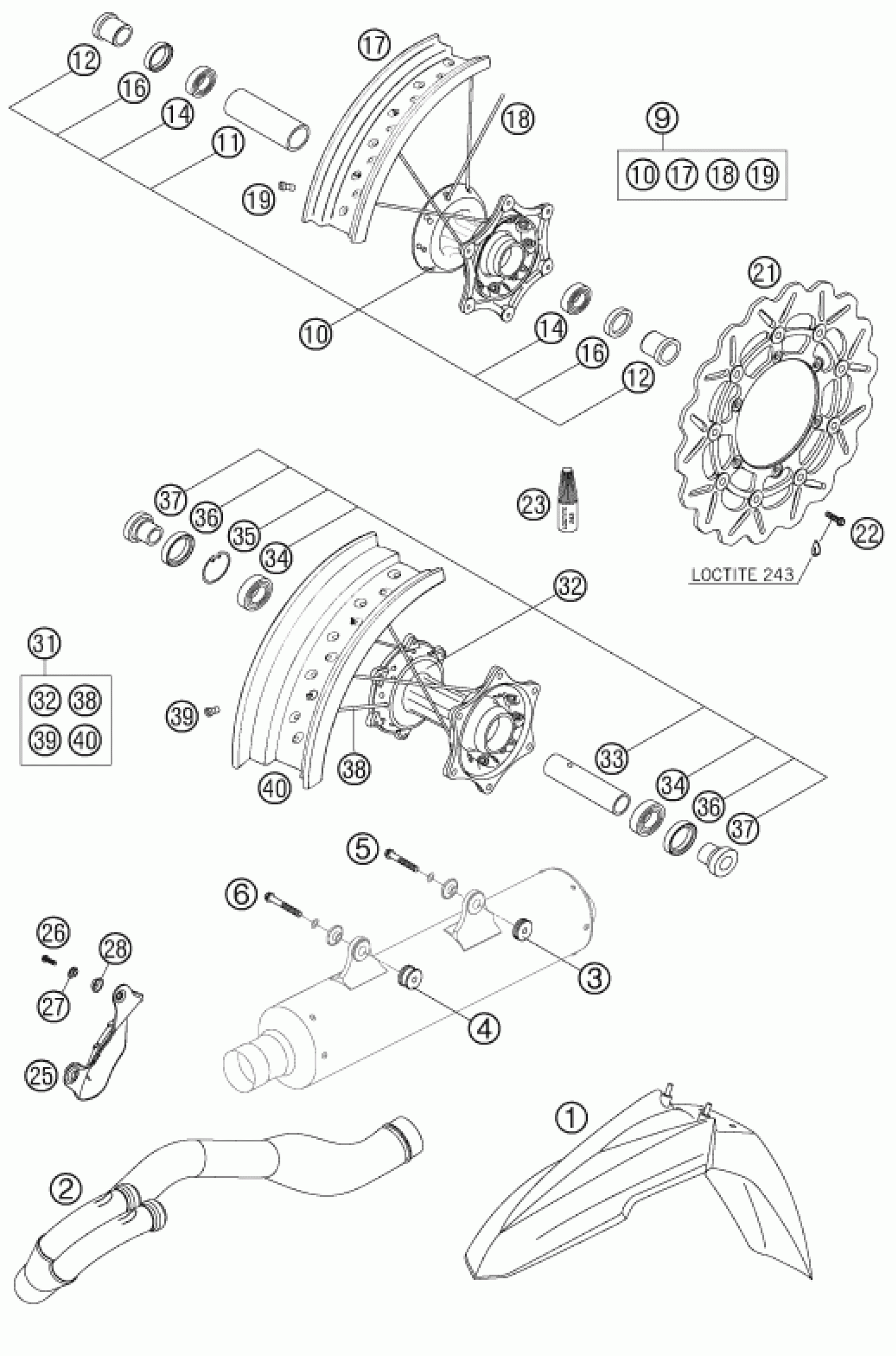

KTM 525 SX SUPERMOTO 2004 NEW PARTS Diagram

#

Description
Price

1

FENDER FRONT ORANGE 02

5030801020004

Unavailable

2

EXHAUST PIPE 525 SMR ''B''

59405007400

Unavailable

3

BUSHING SIL.-SMR REAR 2004

59405169000

Unavailable

4

BUSHING SIL.-SMR FRONT 2004

59405269000

Unavailable

5

HH COLLAR SCREW M 6X40 WS=8

0015060403

Unavailable

6

HH COLLAR SCREW M 6X45 WS=8

0015060453

Unavailable

9

FRONT WHEEL 3,5X17'' 26MM

58409001644

Unavailable

10

FRONT HUB CPL. SX SILVER 03

5480901004491

Unavailable

11

BEA.SPACERTUBE 35X2 L=79,4 03

54809011000

Unavailable

12

SPACER BUSHING F. FR. WHEEL

54809012000

Unavailable

14

Grooved ball bearing 6906

0625069068

Unavailable

16

Radial shaft seal 35X47X7 TC

0760354771

Unavailable

17

FRONT RIM 3,5X17''

58409070000

Unavailable

18

SPOKE M4,5X175-15G 17'' DDE

50309071175

Unavailable

19

SPOKE NIPPLE M4,5X0,75 8X21

50309072000

Unavailable

21

WAVE BRAKE DISC FRONT 2005

58609060000

Unavailable

22

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

Unavailable

23

LOCTITE 243 BLUE 5 ML

6899785

Unavailable

25

HEAT SHIELD 04

59405011000

Unavailable

26

HH COLLAR SCREW M 6X20 WS=8

0015060203

Unavailable

27

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

Unavailable

28

BUCKET

72210079000

Unavailable

31

REAR WHEEL CPL. 5X17''

57310001044

Unavailable

32

REAR WHEEL HUB CPL. SX,EXC03

5481001004491

Unavailable

33

BUSH. SPACER TUBE 121,5MM 01

59010011000

Unavailable

34

Grooved ball bear.6005 DDU2CG2

0625060058

Unavailable

35

CIRCLIP DIN0472-47X1,75

0472047175

Unavailable

36

Radial shaft seal 32X47X7 BSL

0760324771

Unavailable

37

BUSHING FOR HUB

54610016000

Unavailable

38

SPOKE M5X189-36G 17'' 02

57310071000

Unavailable

39

SPOKE NIPPLE M5-TA (8X21MM)

58309072000

Unavailable

40

REAR RIM 5,0X17''

57310070000

Unavailable
