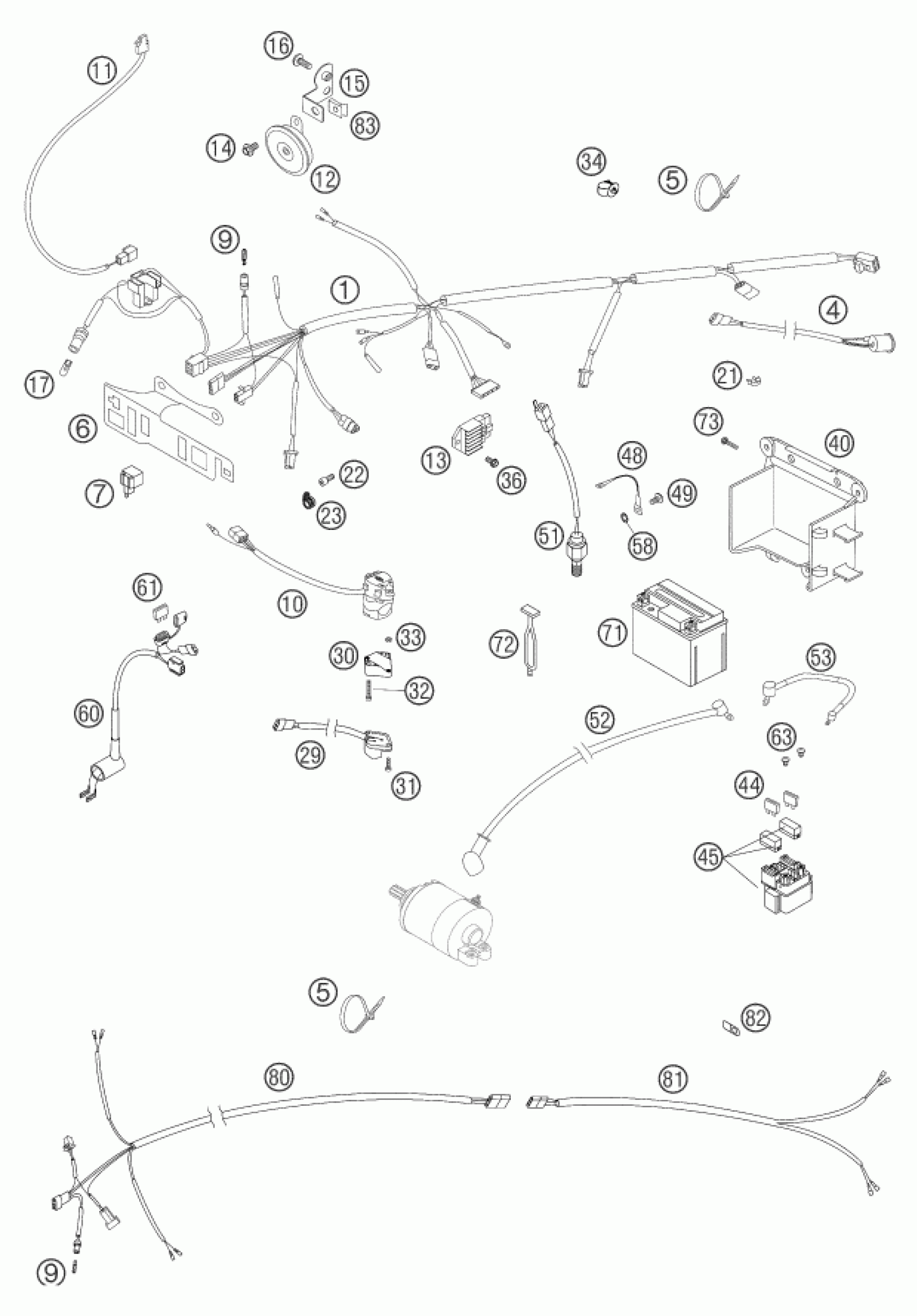

KTM 525 MXC DESERT RACING 2004 WIRING HARNESS Diagram

#

Description
Price

1

WIRING HARNESS 250-525EXC EU03

59011075500

$108.46

4

WIRING HARNESS REAR 125-380'98

50311076000

$27.39

5

Cable tie 200/4.6mm black

44011076200

Unavailable

5

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

6

SUPPORT BRACKET BLACK 2001

59011083000

$20.70

7

FLASHER UNIT 97

44611207200

$49.83

9

BULB 12V 1,2W (W2X4,6D)

49111425000

$2.05

10

H.LIGHT SWITCH CEV 2/4TAKT '98

50311070000

$64.69

11

BRAKE LIGHT SWITCH FRONT 2002

50311050100

$64.60

12

DC HORN 12V K80/L LEB

50311060000

$32.16

13

VOLTAGE REGULA. 12V 125-200'98

50311034000

$102.28

14

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

15

BRACKET 2001

59011061000

$8.59

16

HH COLLAR SCREW M 6X15 WS=8

0014060153

$3.08

17

BULB 12V 5W (W2,1X9,5D)

49011435000

$5.23

21

WIRING HOLDER 12MM

57013072000

Unavailable

21

WIRING HOLDER 16MM

57013072100

Unavailable

22

SHCS DIN 912 M5x8

0912050083

$1.49

23

PVC-CLAMP 7,9 MM HEYCO 3355

57013070100

$2.05

29

FLASHER SWITCH CEV '98

50311029000

$51.98

30

ADAPTER FOR FLASHER SWITCH '98

13011070060

$5.23

31

FLAT HEAD SCREW DIN7985-M 4X16

0985040163

$2.05

32

CYL.HEAD SCREW DIN0084-M 4X22A

0084040223

$1.49

33

HEXAGON NUT DIN0934-M 4

0934040003

$1.49

34

CABLE SUPPORT KHS NR.150-47610

58111076000

$4.11

36

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

40

BATTERY CARRIER PLASTIC BLACK

59011055000

$10.84

44

Plug-in fuse, big 10A

58011109110

$2.05

45

Starter reley 12V 99

58211058000

$72.64

48

GROUND CABLE D=6MM L=140MM '97

58411097100

$8.97

49

HH COLLAR SCREW M 6X10 WS=8

0014060103

$3.08

51

BRAKE LIGHT SWITCH REAR '98

50311051100

$36.92

52

STARTERCABLE 700 MM '97

58411059100

$23.65

53

WIRING HARNESS BATTERY DUKE'99

58711086000

$15.42

58

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

60

FAN WIRING HARNESS 2001

59011079000

$41.13

61

FUSE 5 A

58011109005

$2.05

63

Oval head screw ISO 7380 M 6X8

0902060083

$1.49

71

BATTERY 12V/ 3,5 AH

59011053000

Unavailable

72

RUBBER L=145MM

50303018000

$6.44

73

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

80

FLASH.WIRINGHARNESS FRONT 2001

59011080000

$35.24

81

FLASH.WIRINGHARNESS REAR 2001

59011081000

$20.19

82

RETAINING PLATE

50031003000

$2.61

83

clip nut M6

54603048100

$4.11
