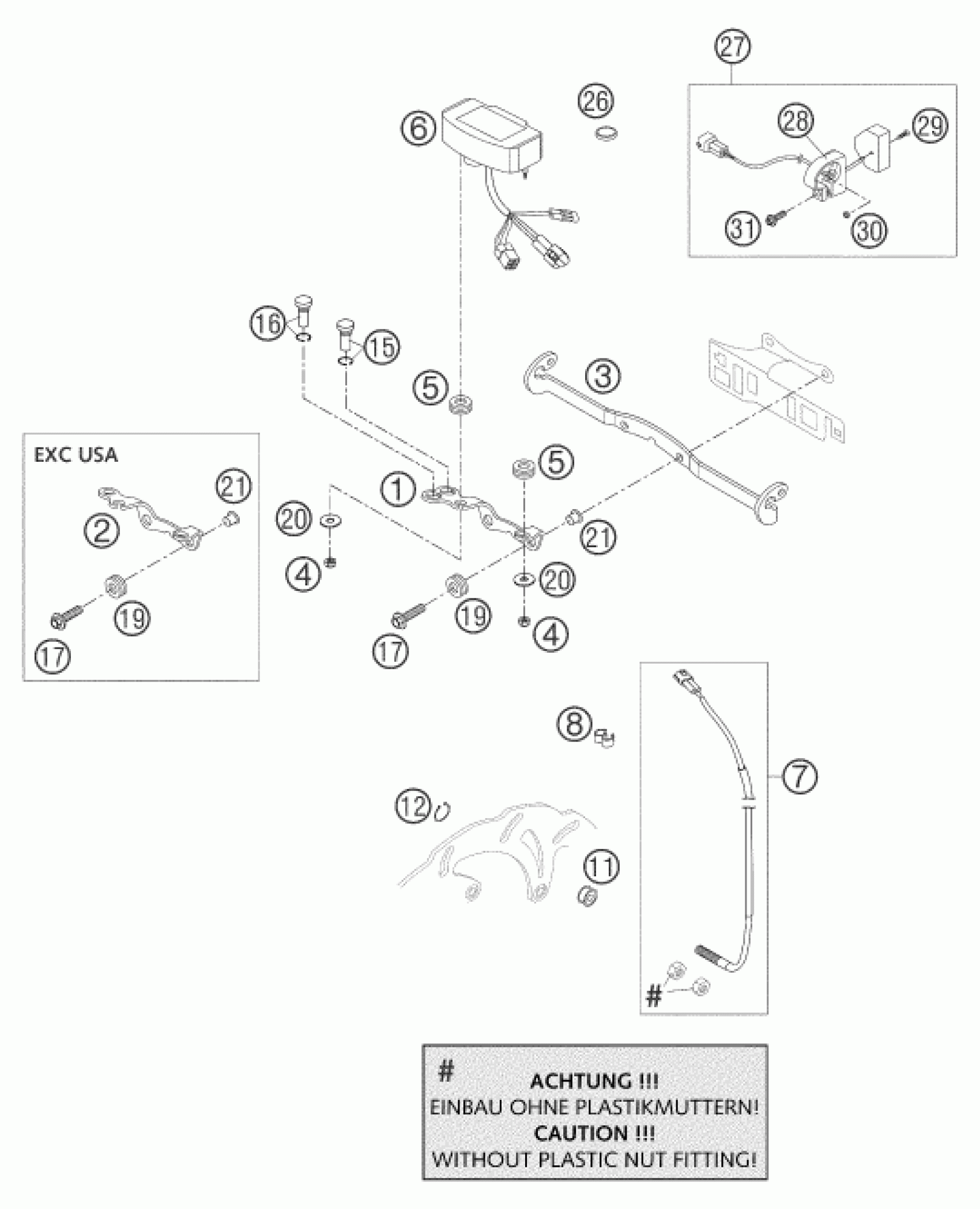

KTM 525 MXC DESERT RACING 2004 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description
Price

1

SPEEDOM. BRACKET F. MAE ALU 03

58314060100

$7.05

2

SPEEDOMETER BRACKET EXC-USA 03

50314060100

$8.42

3

FLASHER BRACKET 2002

58314033100

$23.12

4

Self locking nut DIN 985 M5

0985050003

$2.05

5

rubber grommet 16x10.8x3

58214069051

$5.23

6

SPEEDOMETER KM/H F. 21'' 0

58314069100

$302.69

6

SPEEDOMETER MPH F. 21'' 0

58314069300

$241.85

7

SPEEDOM. CABLE (WITHOUT NUTS)

58314069251

$74.04

8

CLAMP D=6/8MM, BLACK

55011022100

$2.05

11

MAGNET FOR DIGITAL SPEEDOM. 03

54814069050

$20.19

12

CIRCLIP DIN0471- 9X1 INOX

0471009104

$2.05

15

H.BEAM INDICATOR LIGHT BLUE'98

58011021300

$6.63

16

FLASHER INDICAT.LIGHT GREEN'98

58011024300

$6.72

17

HH COLLAR SCREW M 6X25 WS=8

0014060253

$2.05

19

rubber grommet D=8mm open

31008060000

$2.05

20

washer DIN 9021 A - 5.3

0021050003

$1.49

21

spacer bushing for speedometer

58314060050

$5.23

27

TRIPMASTER-SWITCH W. CLAMP 03

50314068000

$101.64

28

CLAMP FOR TRIPMASTER-SWITCH 03

50314068050

$1.97

26

BATTERY F. SPEEDOM. M.A.E. 02

58314068000

$9.81

29

FLAT HEAD SCREW DIN0966-M 4X20

0965040125

$1.49

30

HEXAGON NUT DIN0934-M 4

0934040003

$1.49

31

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05
