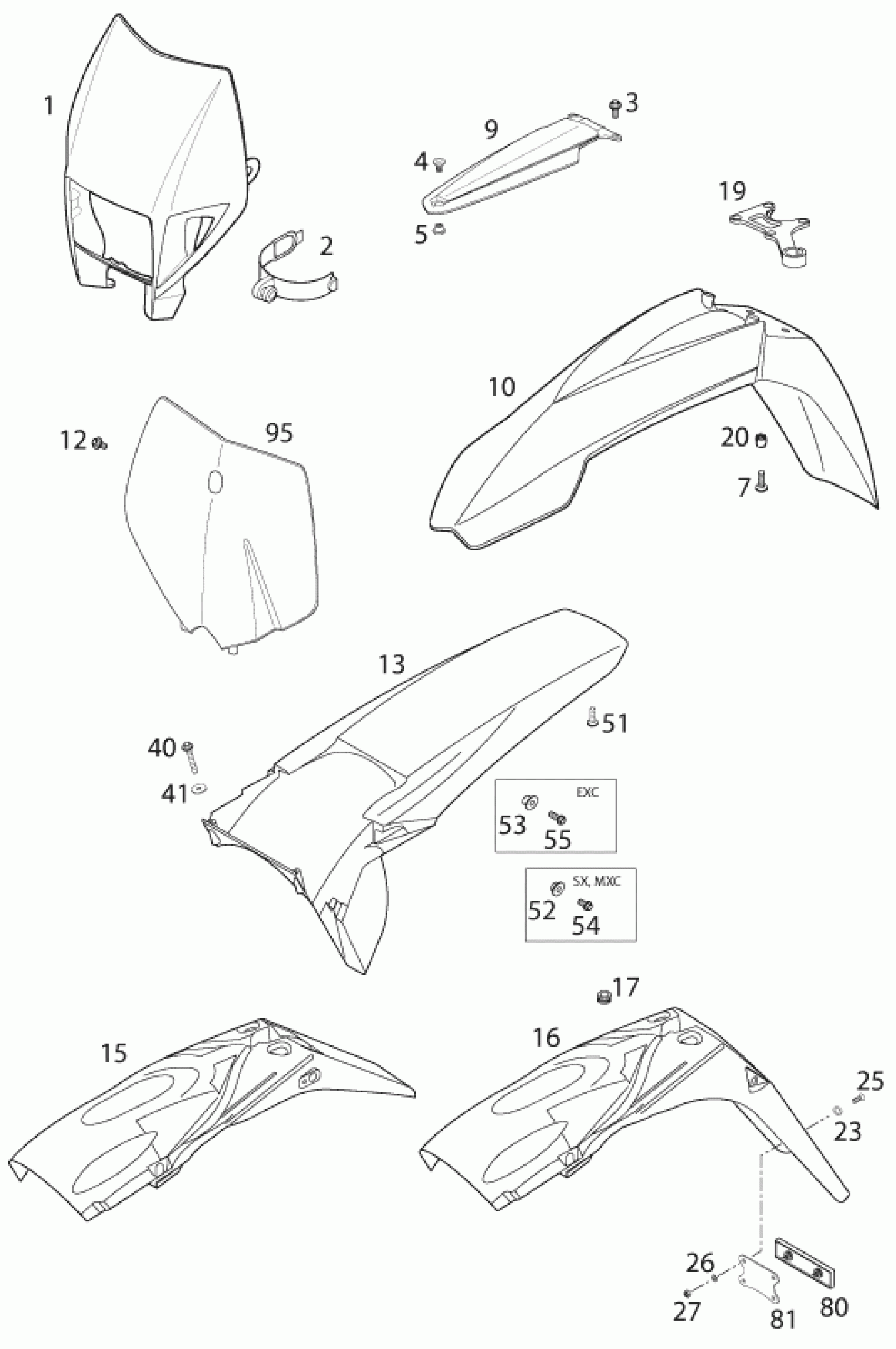

KTM 520 EXC RACING 2001 MASK, FENDERS Diagram

#

Description
Price

1

HEADLIGHT MASK EXC/EGS'99

5030800100004

$29.35

2

MASK RUBBER UFO WP '95

50211086000

$8.03

3

HH COLLAR SCREW M 6X15 WS=8

0014060153

Unavailable

4

SCREW FEND.BRACE M8X9 WS=17

50308009050

$5.23

5

NUT FENDER BRACE M8 WS=17

50308009051

$5.23

7

HH COLLAR SCREW M 6X20 WS=8

0014060203

$2.54

9

FENDER BRACE BLACK '99

50308009100

Unavailable

10

FENDER FRONT ORANGE '99

5030801010004

Unavailable

12

HH COLLAR SCREW M 6X10 WS=8

0014060103

Unavailable

13

REAR FENDER SX SILVER '98

5030801300090

Unavailable

13

REAR FENDER EXC SILVER '98

5030801310090

Unavailable

15

NUMBER PLATE CARRIER EXC '98

50308015000

Unavailable

16

NUMBER PLATE CARRIER EGS '98

50308015100

Unavailable

17

rubber grommet D=8mm open

31008060000

$2.54

19

BRAKE HOSE GUIDE 2000

59008019000

$4.24

20

SPACER BUSHING 7X10X7,5

50208020000

$4.24

23

WASHER 6MM

40006006000

$1.69

25

OVAL HEAD SCREW DIN0966-M 5X16

0966050163

$1.69

26

WASHER DIN0125-A 5,3

0125050003

$1.69

27

Self locking nut DIN 985 M5

0985050003

$2.54

40

SPECIAL SCREW T60 6X40 WS=6

0017060403

Unavailable

41

WASHER DIN0125-A 6,4

0125060003

$1.69

51

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

52

BUSH FOR FENDER 6X11X20X5 MM

50308052100

$5.23

53

BUSH F.NUM.PL.CAR. 6X11X22X9,5

50308053100

$6.54

54

HH COLLAR SCREW M 6X12 WS=8

0015060123

Unavailable

55

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

80

REFLECTOR RED

58412080000

Unavailable

81

BRACKET FOR REFLECTOR

58412080050

$6.07

95

NUMBER PLATE ORANGE SX, MXC

5030800700004

Unavailable
