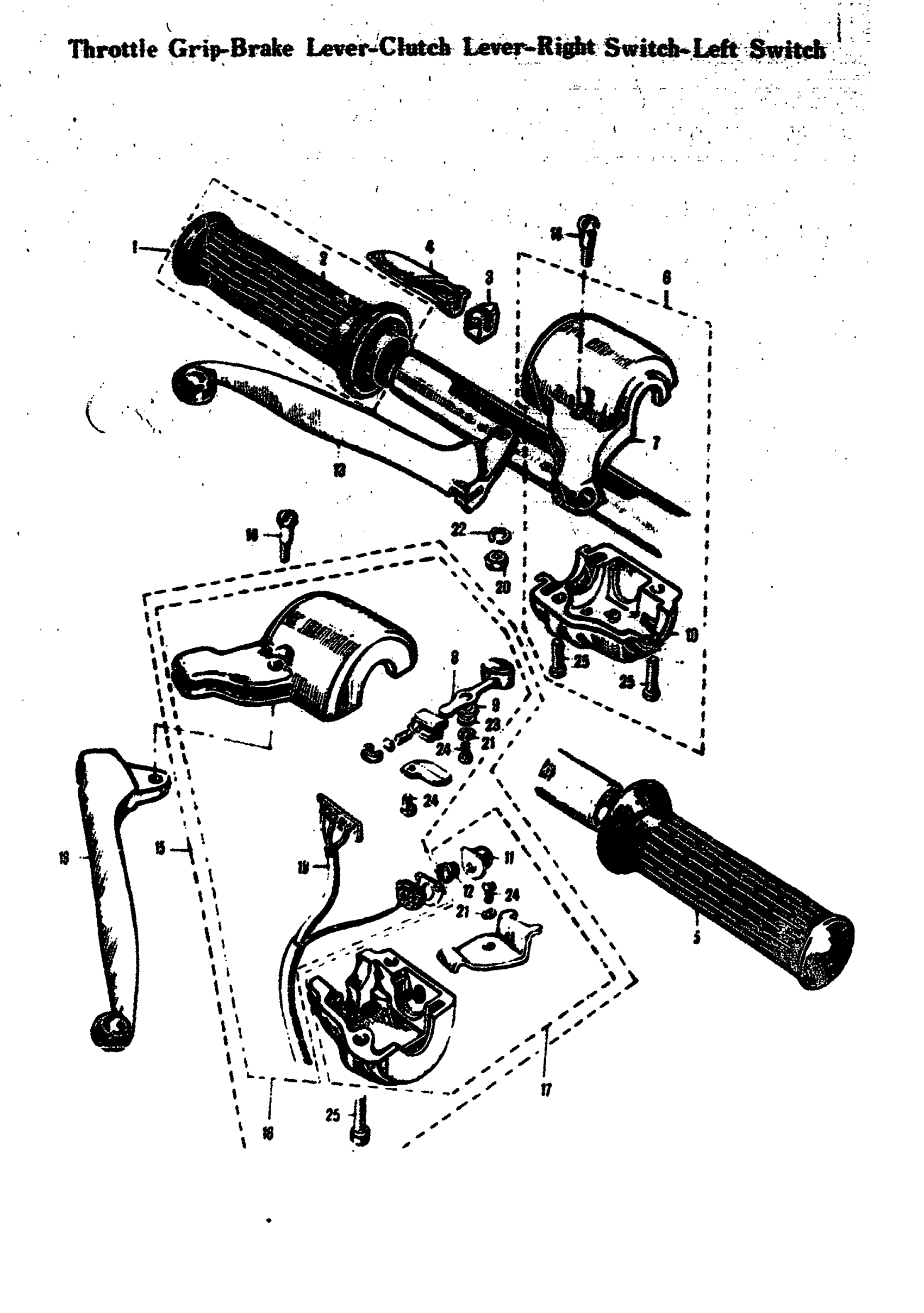

Suzuki 50M12 (1968) THROTTLE GRIP-BRAKE LEVER-CLUTCH LEVER-RIGHT SWITCH-LEFT SWITCH Diagram

#

Description
Price

1

THROTTLE GRIP ASS'Y

57110-03813

Unavailable

2

THROTTLE GRIP RUBBER

57111-01010

Unavailable

3

THROTTLE SLIDING PIECE STOPPE | UP TO E.NO.M10-359317

57121-01010

Unavailable

4

THROTTLE SLIDING PIECE | UP TO E.NO.M10-359317

57122-01011

Unavailable

5

LEFT GRIP | M12MARK2 M15D, M12

57211-03210

Unavailable

6

RIGHT SWITCH ASS'Y | UP TO E.NO.M10-359317

57301-01865

Unavailable

7

RIGHT SWITCH UPPER COVER | UP TO E.NO.M10-359317

57311-02601

Unavailable

8

DIMMER SWITCH KNOB | M12MARK2 M15D, M12

57320-01011

Unavailable

9

DIMMER SWITCH KNOB SPRING WAS | M12MARK2 M15D, M12M12MARK2 M15D, M12

57334-01010

Unavailable

10

RIGHT SWITCH LOWER COVER

57361-01010

Unavailable

11

SWITCH PUSH BUTTON | M12MARK2 M15D, M12

57370-01311

Unavailable

12

SWITCH PUSH BUTTON SPRING | M12MARK2 M15D, M12

57382-01311

Unavailable

13

BRAKE LEVER | M12MARK2 M15D, M12

57421-01010

Unavailable

14

LEVER PIVOT BOLT | M12MARK2 M15D, M12; ISO

57431-07601

Unavailable

14

LEVER PIVOT BOLT | M12MARK2 M15D, M12

57431-07600

Unavailable

15

LEFT SWITCH ASS'Y | M12MARK2 M15D, M12; ISO

57501-07827

Unavailable

16

LEFT SWITCH UPPER COVER ASS'Y | M12MARK2 M15D, M12; ISO

57501-03700

Unavailable

17

LEFT SWITCH LOWER COVER ASS'Y | M12MARK2 M15D, M12; ISO

57502-01602

Unavailable

18

DIMMER SWITCH WIRRING HARNESS | M12MARK2 M15D, M12

57540-03710

Unavailable

19

CLUTCH LEVER | M12MARK2 M15D, M12

57621-03010

Unavailable

20

NUT This part replaces 08311-11058.

08310-00057

$1.84

20

HEXAGON NUT

08311-11051

Unavailable

21

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

22

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

23

WASHER This part replaces 08322-21038.

08322-01037

$1.93

24*

SWITCH BOX SCREW | M12MARK2 M15D, M12; ISO

09125-03103

Unavailable

24

SWITCH BOX SCREW | M12MARK2 M15D, M12

09125-03003

Unavailable

25*

SCREW,5X22 | M12MARK2 M15D, M12; ISO This part replaces 09125-05105.

09125-05105-XC0

$4.10
