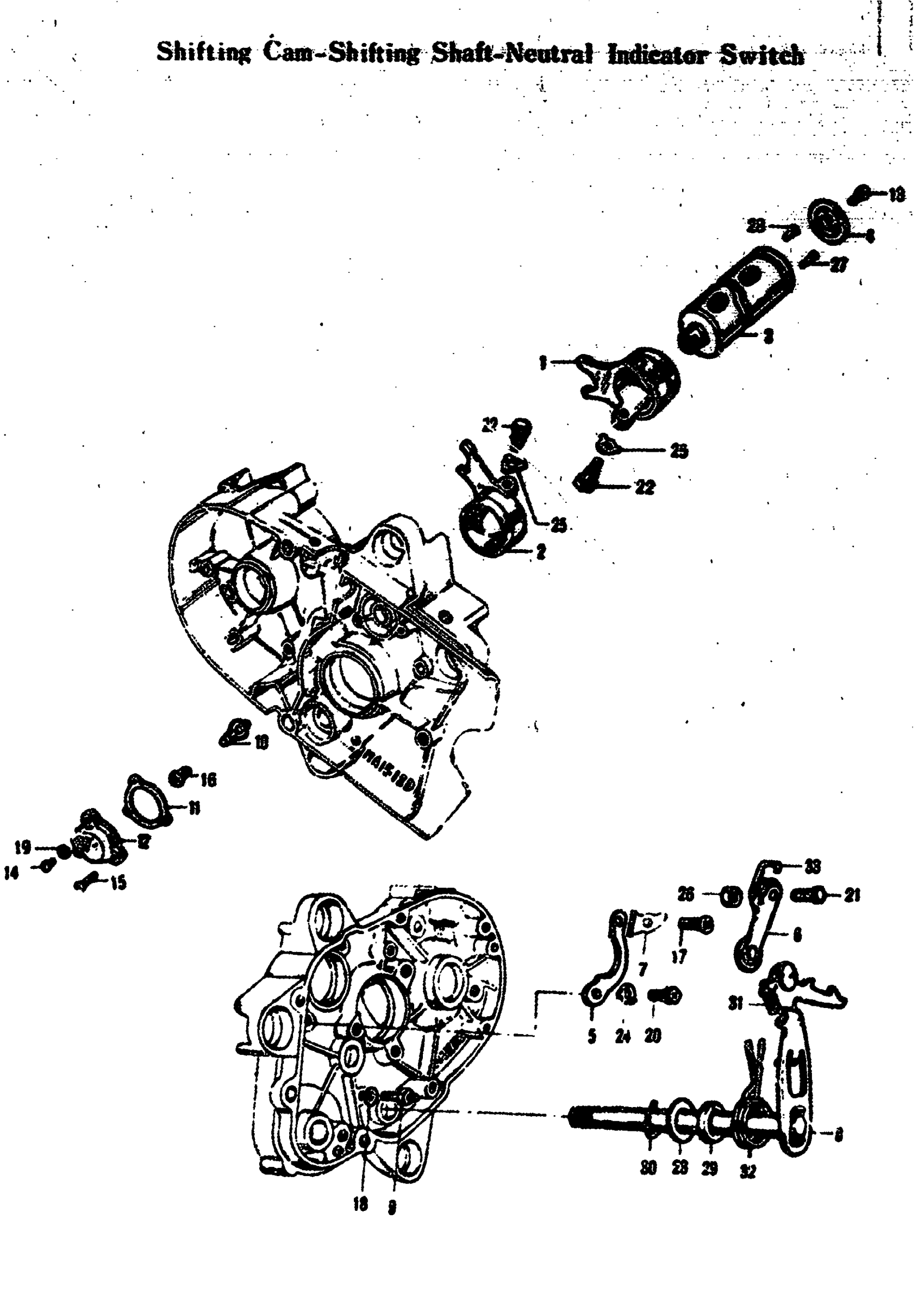

Suzuki 50M12 (1968) SHIFTING CAM-SHIFTING SHAFT-NEUTRAL INDICATOR SWITCH Diagram

#

Description
Price

1

GEAR SHIFTING FORK | M12MARK2,M15D,M12

25211-01001

Unavailable

2

HIGH SPEED GEAR SHIFTING FORK | M12MARK2,M15D,M12

25221-01600

Unavailable

3

SHIFTING CAM | M12MARK2,M15D,M12

25311-01600

Unavailable

4

SHIFTING CAM PIN RETAINER | M12MARK2,M15D,M12

25322-01000

Unavailable

5

SHIFTING CAM GUIDE | M12MARK2,M15D,M12

25341-01000

Unavailable

6

SHIFTING CAM STOPPER | M12MARK2,M15D,M12

25350-01000

Unavailable

7

SHIFTING CAM STOP PLATE | M12MARK2,M15D,M12

25362-01611

Unavailable

8

SHIFTING SHAFT COMP | M12MARK2,M15D,M12

25510-01002

Unavailable

9

SHIFTING ARM STOPPER | M12MARK2,M15D,M12

23671-01000

Unavailable

10

CONTACT, SWITCH | M12MARK2,M15D,M12 This part replaces 37711-01000.

37711-05101

$4.21

11

NEUTRAL INDICATOR SWITCH GASK | M12MARK2,M15D,M12

37712-01000

$2.22

12

BODY,CHANGE SWI | M12MARK2,M15D,M12 This part replaces 37721-05100.

37721-05101

$10.34

13

HESAGON BOLT

01111-06128

Unavailable

14

CROSS HEAD SCREW

02111-03068

Unavailable

14

CROSS HEAD SCREW

02111-03061

Unavailable

15

SCREW This part replaces 02111-04168.

02112-0416A

$1.49

15

CROSS HEAD SCREW

02111-04161

Unavailable

16

CROSS HEAD SCREW

02111-06088

Unavailable

17

SCREW This part replaces 02121-06168.

02122-06167

$1.49

18

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

19

WASHER This part replaces 08322-21038.

08322-01037

$1.93

20

GEAR SHIFTING CAM GUIDE BOLT | M12MARK2,M15D,M12 OD=6(6(0.63)

09100-06012

Unavailable

21

SHIFTING CAM STOPPER BOLT | M12MARK2,M15D,M12

09111-06002

Unavailable

22

GEAR SHIFTING FORK GUIDE | M12MARK2,M15D,M12

09135-08002

Unavailable

23

WASHER (12.5X26X1.6) | M12MARK2,M15D,M12 OD=27=12.5(0.49) T=1.5(0.06) This part replaces 09160-12020.

09160-12089

$1.97

24

SHIFTING CAM GUIDE LOCK WASHE | M12MARK2,M15D,M12 OD=12=6.5(0.26) T=0.8(0.03)

09167-06002

Unavailable

25

GEAR SHIFTING FORK GUIDE LOCK | M12MARK2,M15D,M12 OD=8.=0.8(0.03)

09167-08001

Unavailable

26

SHIFTING CAM STOPPER SPACER | M12MARK2,M15D,M12

09180-06003

Unavailable

27

SHIFTING CAM PIN | M12MARK2,M15D,M12

09201-04001

Unavailable

28

SHIFTING CAM PIN | M12MARK2,M15D,M12

09201-04003

Unavailable

29

OIL SEAL (12X22X9) | M12MARK2,M15D,M12 OD=22=11(0.43) W=7(0.28) This part replaces 09285-12001.

09285-12006

$6.32

30

CIRCLIP | M12MARK2,M15D,M12 This part replaces 09384-12001.

08331-3112A

$1.78

31

SHIFTING PAWL RETURN SPRING | M12MARK2,M15D,M12

09443-07004

Unavailable

32

SHIFTING SHAFT RETURN SPRING | M12MARK2,M15D,M12

09444-26002

Unavailable

33

GEAR SHIFTING CAM STOPPER SPR | M12MARK2,M15D,M12

09448-16002

Unavailable
