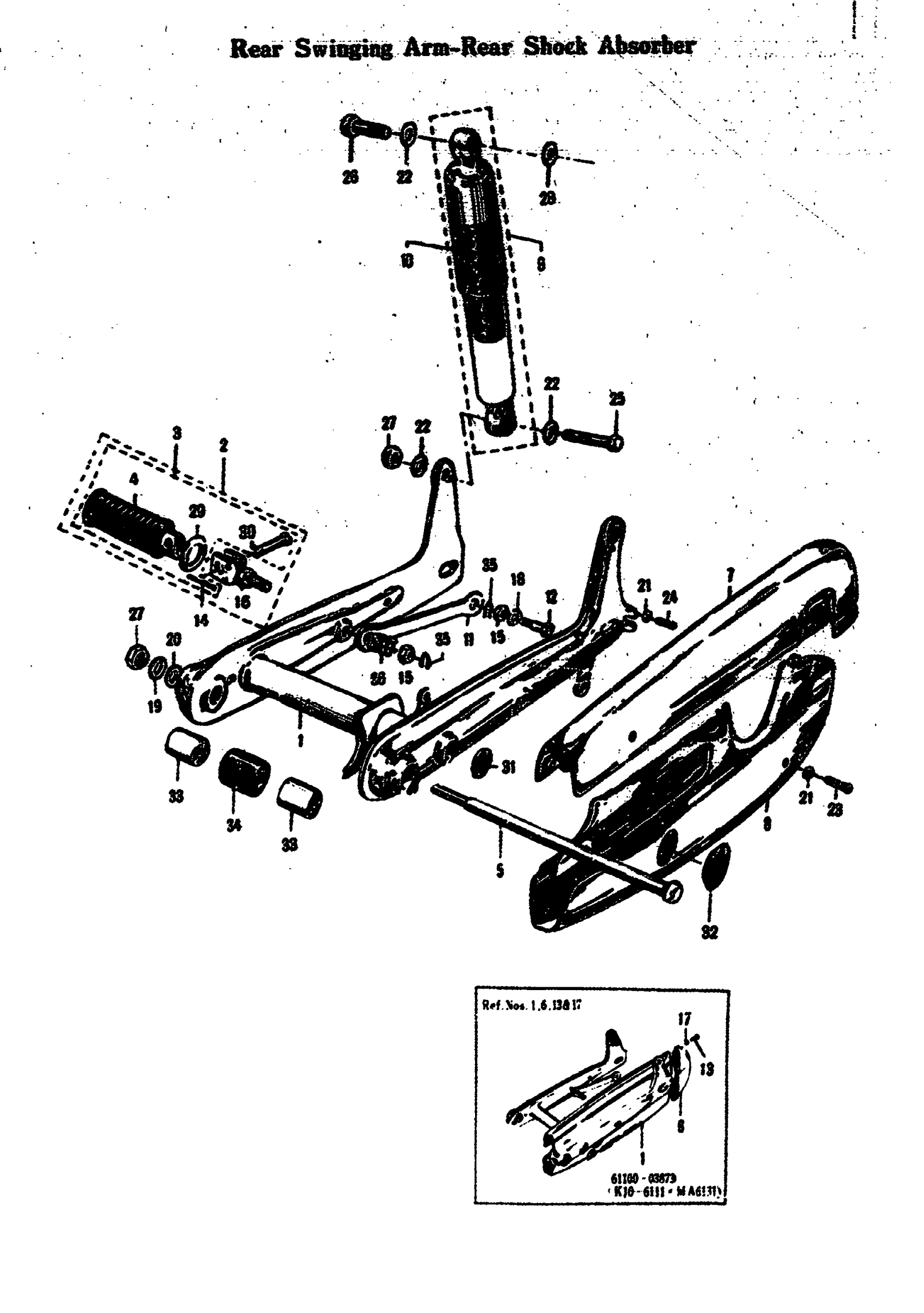

Suzuki 50M12 (1968) REAR SWINGING ARM-REAR SHOCK ABSORBER Diagram

#

Description
Price

1

REAR SWINGING ARM COMP. | LUDES REF.NO.33

00021-08112

Unavailable

1

REAR SWINGING ARM COMP. | LUDES REF.NOS.6,13,17,33,O. M15.....M10..295288 M15886760

61100-03873

Unavailable

2

REAR FOOTREST ASS'Y | M12MARK2 M15D, M12

43600-03000

Unavailable

3

FOLDING FOOTREST RUBBER ASS'Y | M12MARK2 M15D, M12

43600-03805

Unavailable

4

FOLDING FOOTREST RUBBER | M12MARK2 M15D, M12

43610-03000

Unavailable

5

REAR SWINGING ARM PIVOT SHAFT | M12MARK2 M15D, M12

61211-01002

Unavailable

6

CHAIN CASE END | O E.NO.M15....M10-296180 M10-2886760

61310-01000

Unavailable

7

CHAIN CASE UPPER HALF | M15D

61310-01002

Unavailable

8

CHAIN CASE LOWER HALF | M15D

61320-01001

Unavailable

9

REAR SHOCK ABSORBER ASS'Y | M15D; CHROME-PLATED

62100-01603

Unavailable

10

REAR SHOCK ABSORBER SPRING | M15D; O.D.=32(1.22),I.D.=L=175.5 (6.92)

62211-01701

Unavailable

11

REAR TORQUE LINK | M12MARK2 M15D, M12

64310-01000

Unavailable

12

REAR TROQUE LINK BOLT | M12MARK2 M15D, M12

64331-01000

Unavailable

13

CROSS HEAD SCREW | O. M15....M10..296160 M15D6260

02111-06208

Unavailable

14

COTTER PIN

04111-20188

Unavailable

15

NUT This part replaces 08311-31088.

08310-00087

$2.13

16

NUT This part replaces 08312-11108.

08310-00107

$2.19

17

LOCK WASHER | O. M15....M10..296160 M15D6260 This part replaces 08321-21068.

08321-01067

$2.13

18

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

19

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

20

WASHER | O. M15....M10..296180 M15D.760 M12.....M10-298579 This part replaces 08322-11108.

08322-01107

$2.15

21

WASHER This part replaces 08322-21068.

08322-01067

$2.13

22

WASHER This part replaces 08322-21108.

08322-01107

$2.15

23

CHAIN CASE FITTING BOLT (S) | M12MARK2 M15D

09100-06005

Unavailable

24

BOLT | M12MARK2 M15D This part replaces 09100-06007.

09100-06067

Unavailable

25

REAR SHOCK ABSORBER LOWER BOL | M12MARK2 M15D; O.D.=10(0.3.57) CHROME-PLATED

09100-10019

Unavailable

26

REAR SHOCK ABSORBER UPPER BOL | M12MARK2 M15D, M12

09104-10003

Unavailable

27

REAR SHOCK ABSORBER UPPER NUT | M12MARK2 M15D, M12; CHROME

09140-10001

Unavailable

28

REAR SHOCK ABSORBER UPPER WAS | M12MARK2 M15D, M12; O.D.=2M12MARK2 M15D, M12; O.D.=2.D.=10.5(0.41) T.=3.2 (0.1

09160-10005

$1.87

29

WASHER | M12MARK2 M15D, M12; O.D.=3M12MARK2 M15D, M12; O.D.=3.D.=29.5(0.77) T.=2.3(0.09 This part replaces 09160-19004.

09160-19024

$2.65

30

FOLDING FOOTREST RUBBER FITTI | M12MARK2 M15D, M12M12MARK2 M15D, M12

09200-06010

$1.72

31

SWINGING ARM JOINT CAP | M12MARK2 M15D, M12

09250-22002

$1.99

32

CAP(OD:40) | M15D This part replaces 09250-30001.

09250-30024

$1.78

33

REAR SWINGING ARM BUSHING | M12MARK2 M15D, M12

03319-10003

Unavailable

34

REAR PIVOT SHAFT HOUSHING BUF | M12MARK2 M15D, M12M12MARK2 M15D, M12

09320-22001

Unavailable

35

SPRING CLIP | M12MARK2 M15D, M12

09384-08001

Unavailable
