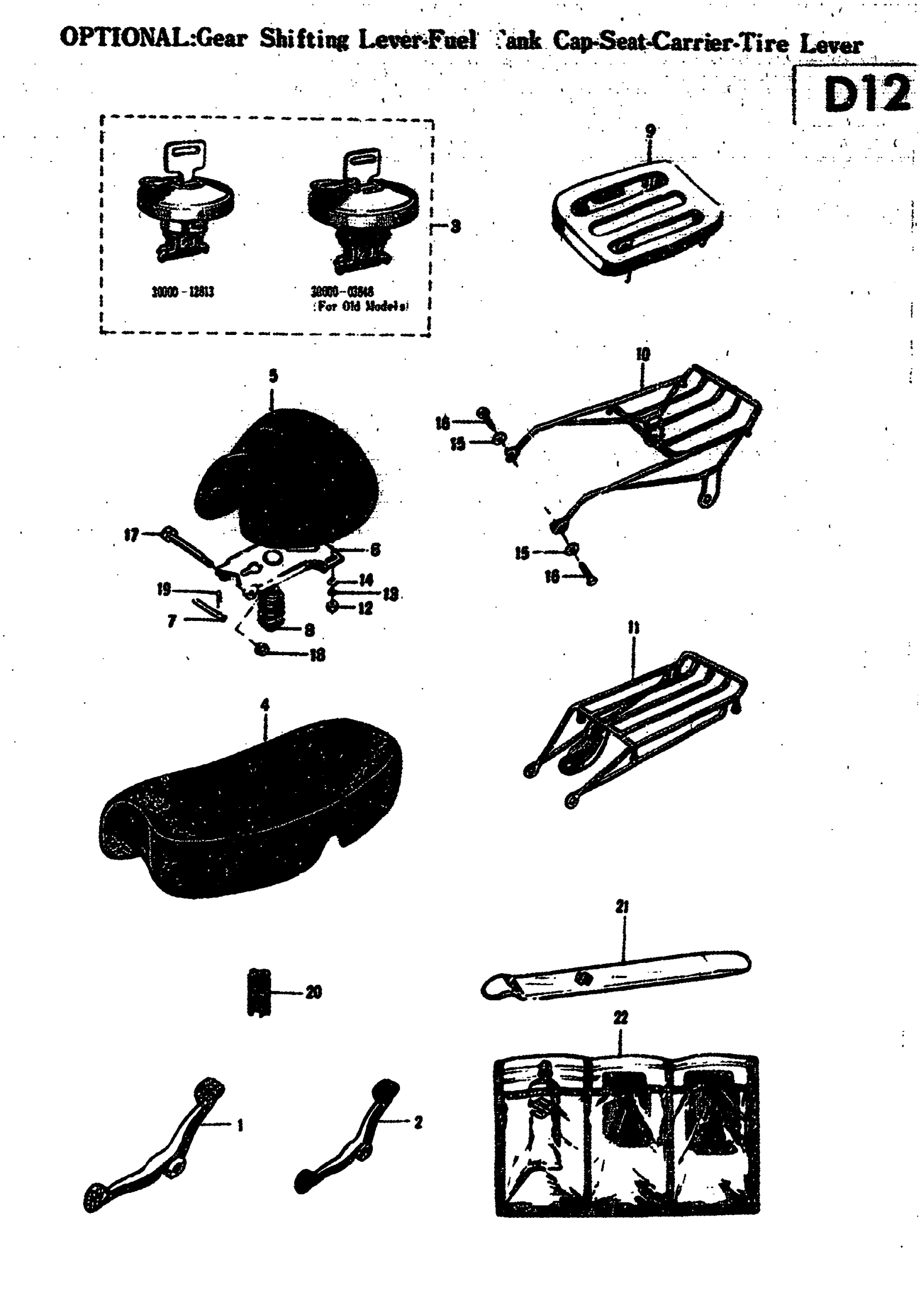

Suzuki 50M12 (1968) OPTIONAL: GEAR SHIFTING LEVER-FUEL TANK CAP-SEAT-CARRIER-TIRE LEVER Diagram

#

Description
Price

1

GEAR SHIFTING LEVER | M12MARK2,M15,M15D,M12

25610-01610

Unavailable

2

GEAR SHIFTING LEVER | RK2

25610-01620

Unavailable

3

FUEL TANK CAP | M12MARK2; ISO, FROM E.NO.M

30000-12813

Unavailable

3

FUEL TANK CAP | ,M12; ISO FOR OLD MODELS U.1110-073027

30000-03848

Unavailable

4

SHORT DUAL SEAT ASS'Y | RK2

45100-01200

Unavailable

5

SEAT | M12

45100-50101

Unavailable

6

SEAT FITTING PLATE | M12

45211-50100

Unavailable

7

SEAT FITTING PLATE STOPPER | M12

45235-04000

Unavailable

8

SEAT SHOCK ABSORBER | M12

45238-04010

Unavailable

9

CARRIER | M12

46110-03000

Unavailable

10

CARRIER | RK2

46310-01600

Unavailable

11

CARRIER | M15M15D

46310-03701

Unavailable

12

.NUT This part replaces 08311-11068.

08310-00067

$2.13

13

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

14

WASHER This part replaces 08322-21068.

08322-01067

$2.13

15

WASHER This part replaces 08322-21108.

08322-01107

$2.15

16

REAR SHOCK ABSORBER UPPER BOL | RK2

09104-10003

Unavailable

17

SEAT FITTING PLATE BOLT | M12

09111-08005

Unavailable

18

NUT | M12 This part replaces 09159-08001.

09159-08020

$1.78

19

SEAT FITTING PLATE STOPPER CL | M12M12

09385-06001

$3.10

20

CABLE HOLDING CLIP | M12MARK2,M15,M15D,M12

09408-00001

Unavailable

21

TIRE LEVER | M12MARK2,M15,M15D,M12

09825-00001

Unavailable
