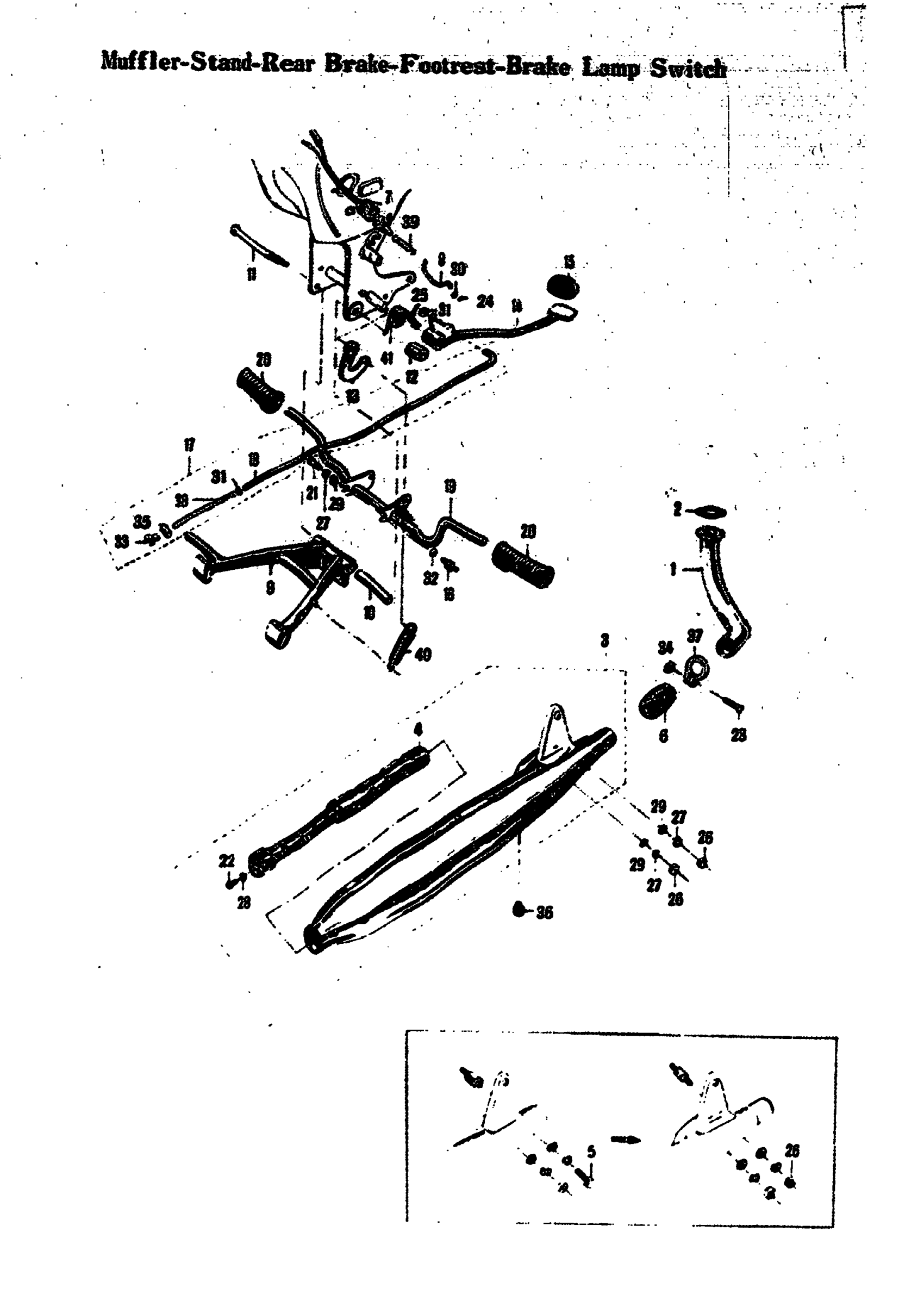

Suzuki 50M12 (1968) MUFFLER-STAND-REAR BRAKE-FOOTREST-BRAKE LAMP SWITCH Diagram

#

Description
Price

1

EXHAUST PIPE | M15D

10150-01000

Unavailable

2

EXHAUST PIPE GASKET | M12MARK2,M15D,M12

14181-01000

Unavailable

3

MUFFLER ASS'Y | M15D ISO This part replaces 14301-01000.

14301-50002

Unavailable

4

MUFFLER BAFFLE PIPE | M15D ISO

14510-01003

Unavailable

5

MUFFLER FITTING BOLT | O E.NO.M10-335689 L=16(

14635-50000

Unavailable

6

MUFFLER CONNECTOR | M15D

14771-01040

Unavailable

7

BRAKE LAMP SWITCH ASS'Y | M12MARK2,M15D,M12

37740-11010

Unavailable

8

BRAKE LAMP SWITCH SPRING HOOK | M12MARK2,M15D,M12

37911-03000

Unavailable

9

CENTER STAND | M15D

42100-03002

Unavailable

10

CENTER STAND SPACER | M12MARK2,M15D,M12 OD=16(10.4(0.41) L=84.4(3.32)

42211-03001

Unavailable

11

NO DESCRIPTION AVAILABLE | M15D L=137(5.40) This part replaces 42221-03000.

42221-03001

Unavailable

12

CENTER STAND NUT | M15D L=28.2(1.11)

42231-09000

Unavailable

13

CENTER STAND SPRING HOOK | M12MARK2,M15D,M12

42250-03001

Unavailable

14

BRAKE PEDAL | M15D

43110-03001

Unavailable

15

BRAKE PEDAL RUBBER | M12MARK2,M15D,M12

43151-01000

Unavailable

16

BRAKE PEDAL STOPPER | M15D L=41.5(1.63)

43221-03001

Unavailable

17

BRAKE ROD ASS'Y | M12MARK2,M15D,M12 ISO

43300-01003

Unavailable

18

BRAKE ROD ASS'Y | M12MARK2,M15D,M12 ISO This part replaces 43311-01002.

43300-01003

Unavailable

19

FOOTREST BAR | M15D

43510-01000

Unavailable

20

RUBBER | M15D This part replaces 43551-03000.

43551-03001

$7.22

21

PLUG, DRAIN This part replaces 01121-08168.

01500-0816B

$2.50

22

SCREW This part replaces 02111-05068.

09125-05122

$2.06

22

CROSS HEAD SCREW

02111-05061

Unavailable

23

CROSS HEAD SCREW

02111-05308

Unavailable

23

NO DESCRIPTION AVAILABLE This part replaces 02111-05301.

02111-05302

Unavailable

24

COTTER PIN

04111-20108

Unavailable

25

COTTER PIN

04111-20108

Unavailable

26

NUT This part replaces 08312-11088.

08310-00087

$2.13

27

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

28

WASHER This part replaces 08322-11058.

08322-01057

$2.13

29

WASHER | TO E.NO.M10-296179 This part replaces 08322-11088.

08322-01087

$2.13

30

WASHER This part replaces 08322-21048.

08322-01047

$1.86

31

WASHER This part replaces 08322-21058.

08322-01057

$2.13

32

WASHER This part replaces 08322-21088.

08322-01087

$2.13

33

BRAKE ROD ADJUSTING NUT | M12MARK2,M15D,M12 ISO

09150-05101

$3.04

33

BRAKE ROD ADJUSTING NUT | M12MARK2,M15D,M12

09150-05001

Unavailable

34

MUFFLER CONNECTOR STOPPER NUT | M15D ISO

09152-05103

Unavailable

34

MUFFLER CONNECTOR STOPPER NUT | M15D

09152-05003

Unavailable

35

BRAKE CAM LEVER PIN | M12MARK2,M15D,M12 OD=10(7(0.67)

09209-10001

$1.49

36

CENTER STAND BUFFER | M15D L=16(0.63)

09321-10001

$2.61

37

MUFFLER CONNECTOR STOPPER | M15D

09402-00050

Unavailable

38

BRAKE ROD ADJUSTING SPRING | M12MARK2,M15D,M12 OD=8(05(5.71)

09440-09004

$2.20

39

BRAKE LAMP SWITCH SPRING | M12MARK2,M15D,M12

09443-07010

Unavailable

40

SPRING | M12MARK2,M15D,M12 OD=16(80.4(3.16) This part replaces 09443-16002.

09443-16007

Unavailable
