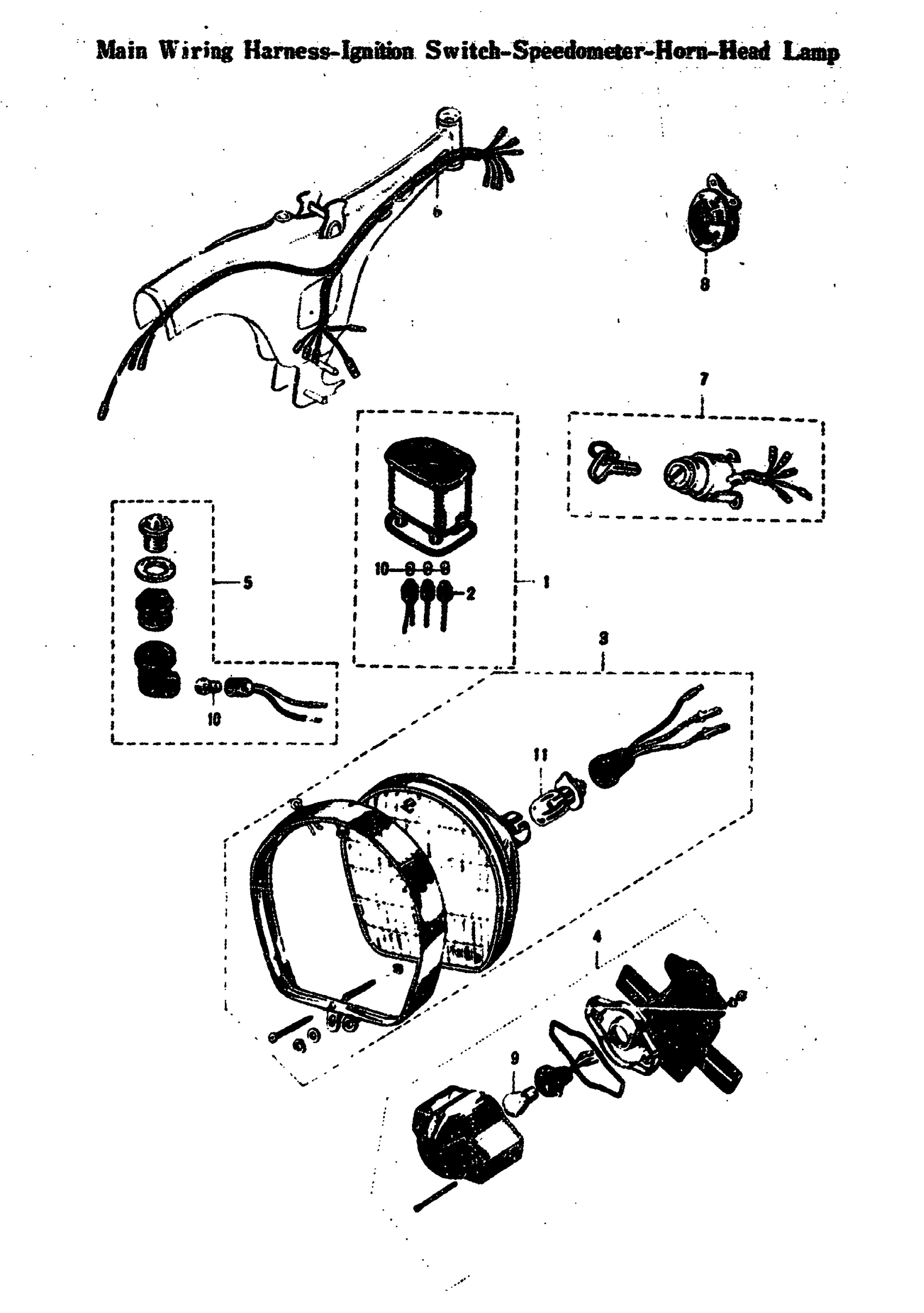

Suzuki 50M12 (1968) MAIN WIRING HARNESS-IGNITION SWITCH-SPEEDOMETER-HORN-HEAD LAMP Diagram

#

Description

Price

1

SPEEDOMETER ASS'Y | PARTS ARE ALL INTERCHANGE THOSE OF MODEL 5835 EXCEP10

34005-01847

Unavailable

2

CHARGE INDICATOR LAMP SOCKET

34174-89010

Unavailable

3

HEAD LAMP ASS'Y | NENT PARTS ARE ALL INTERCHWITH THOSE OF MODEL M15 EXNO 11

35100-01611

Unavailable

4

TAIL BRAKE LAMP ASS'Y | NENT PARTS ARE ALL INTERCHWITH THOSE OF MODEL M15 EXNO.9

35710-11010

Unavailable

5

HIGH BEAM INDICATOR LAMP ASS'

36330-01610

Unavailable

6

MAIN WIRING HARNESS

36610-01691

Unavailable

7

NO DESCRIPTION AVAILABLE This part replaces 37110-01312.

37110-03210

Unavailable

8

NO DESCRIPTION AVAILABLE This part replaces 38500-01330.

38500-01333

Unavailable

9

BULB (12V,23W/8W) | .P. This part replaces 09471-12002.

09471-12035

$4.49

10

LAMP BULB

09471-12004

$2.69
